Slant Bed CNC Lathe for High-Mix, Low-Volume Manufacturing





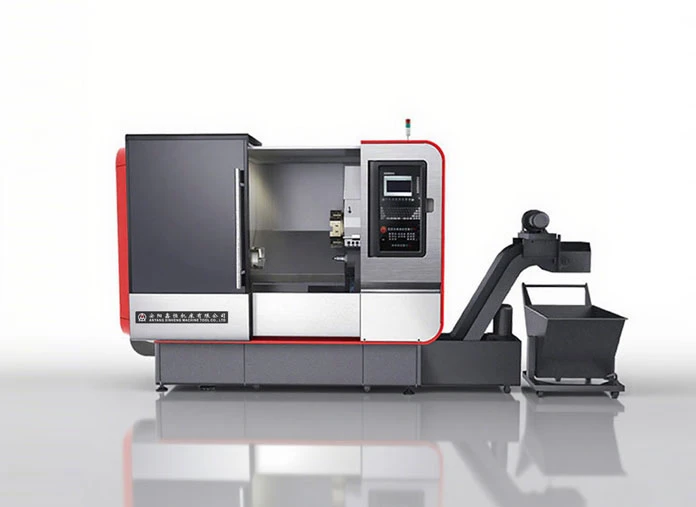

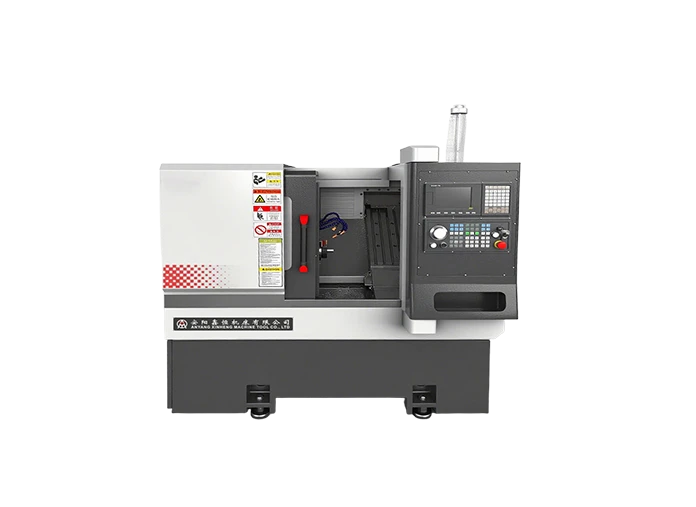

Slant bed CNC lathe

Experience next-level machining with our Tilted-Bed CNC Lathe. Designed with a rigid 30° or 45° inclined structure, it ensures superior stability, efficient chip evacuation, and easier operation. Equipped with a high-response hydraulic chuck, programmable hydraulic tailstock, and a powerful hydraulic turret, this machine delivers exceptional accuracy and speed for complex part turning—ideal for automotive, aerospace, and precision engineering applications.

Boost your productivity with reduced vibration, faster cycle times, and reliable performance. Unlock precision. Unleash efficiency.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Bed slant angle	°
Swing over bed	mm
Max. turning diameter	mm
Max. turning diameter over carriage	mm
Max. length of workpiece	mm
Max. turning length	mm
Stroke &Feed
X-axis effective stroke	mm
Z-axis effective stroke	mm
Rapid traverse speed of X-axis/Z-axis	m min
Max. feeding speed of X-axis/Z-axis	m min
Spindle
Spindle nose type	-
Spindle bore	mm
Allowable bar diameter through spindle bore	mm
Max. spindle speed	rpm
Spindle motor power	kW
Hydraulic chuck	inch
Accuracy
Repeat positioning accuracy of X-axis/Y-axis/Z-axis	mm
Positioning accuracy of X-axis/Y-axis/Z-axis	mm
Turret
Turret type	-
No. of switching positions	-
Cross section of tool shank	mm
Boring bar diameter	mm
Tailstock
Tailstock quill diameter	mm
Tailstock quill taper	-
Tailstock quill max. stroke	mm
Others
Electricity capacity	kVA
CNC system	-
Length×Width×Height	mm
Weight	kg

AE40B	AE45B	AE45B	AE50B

30	30	30	30
Φ400	Φ420	Φ420	Φ520
Φ350	Φ400	Φ400	Φ500
Φ210	Φ250	Φ250	Φ260
600	700	1000	1000
390	500	800	800

185	210	210	260
390	800	800	800
36 36	36 36	36 36	36 36
5	5	5	5

A2-6	A2-6	A2-6	A2-8
Φ66	Φ66	Φ66	Φ86
Φ50	Φ55	Φ55	Φ75
4000	4000	4000	2500
11	11	11	15
8	10	10	12

0.003 (full stroke)	0.003 (full stroke)	0.003 (full stroke)	0.003 (full stroke)
0.005 (full stroke)	0.005 (full stroke)	0.005 (full stroke)	0.005 (full stroke)

Hydraulic turret	Hydraulic turret	Hydraulic turret	Hydraulic turret
8 12	8 12	8 12	8 12
25×25	25×25	25×25	25×25
Φ32	Φ40	Φ40	Φ40

Φ80	Φ80	Φ80	Φ80
MT5	MT5	MT5	MT5
100	100	100	100

23	23	23	28
Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)
2300×1600×1700	2600×1600×1700	2900×1600×1700	2900×1700×1800
3200	4200	4700	5000

Accessories

Standard :

Fanuc 0i-TF (5) CNC system
3-jaw through-hole chuck
H8 hydraulic turret
Manual tailstock
LED work light
Coolant system

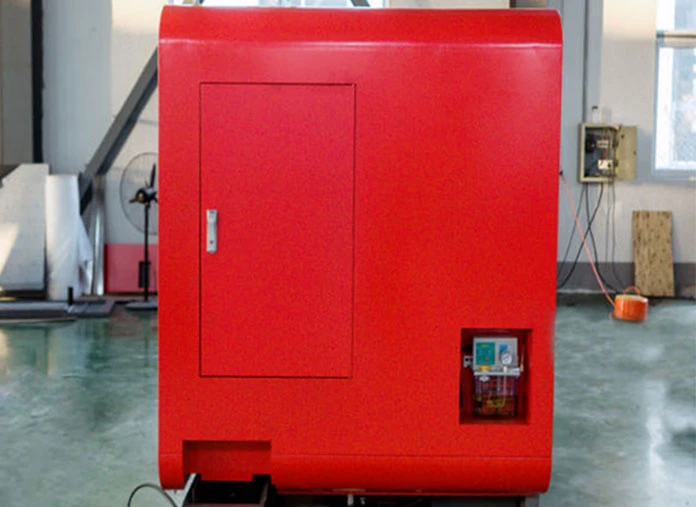

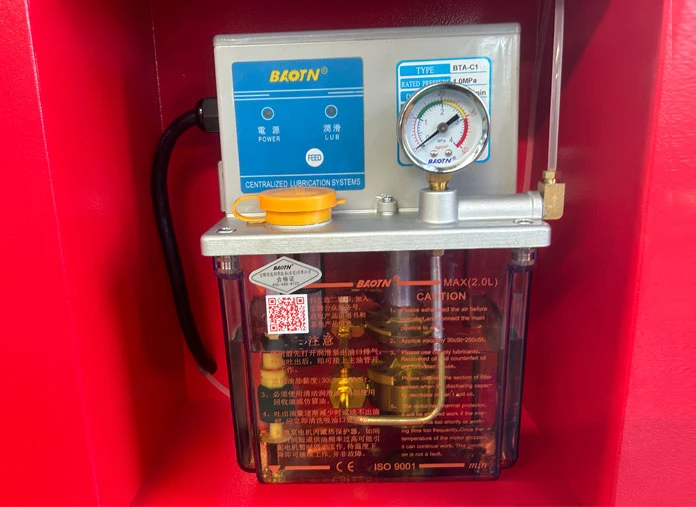

Automatic Lubrication system

Schneider electrical component
Cabinet shield
Leveling wedge
Anchor bolt
Wrench
Foot switch

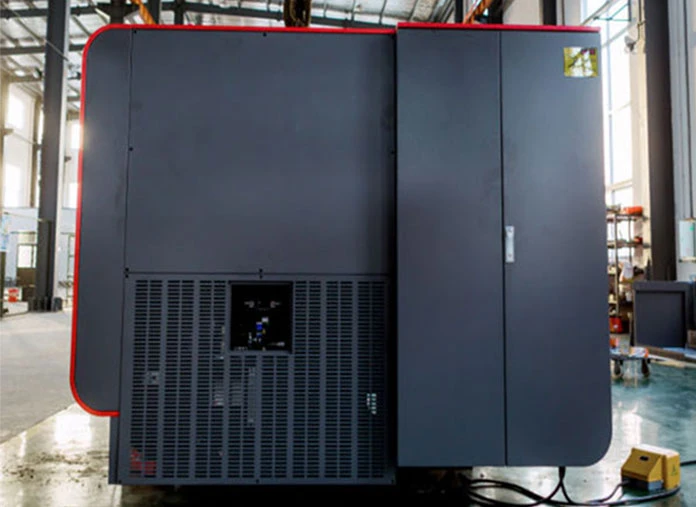

Cabinet air conditioner

Optional :

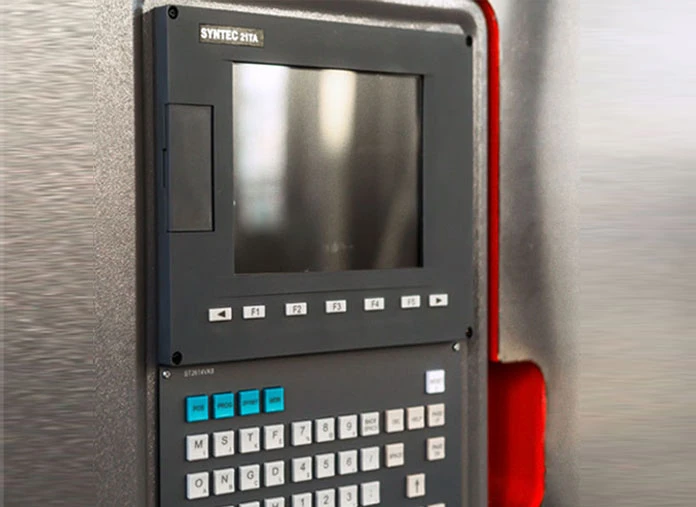

Syntec CNC system

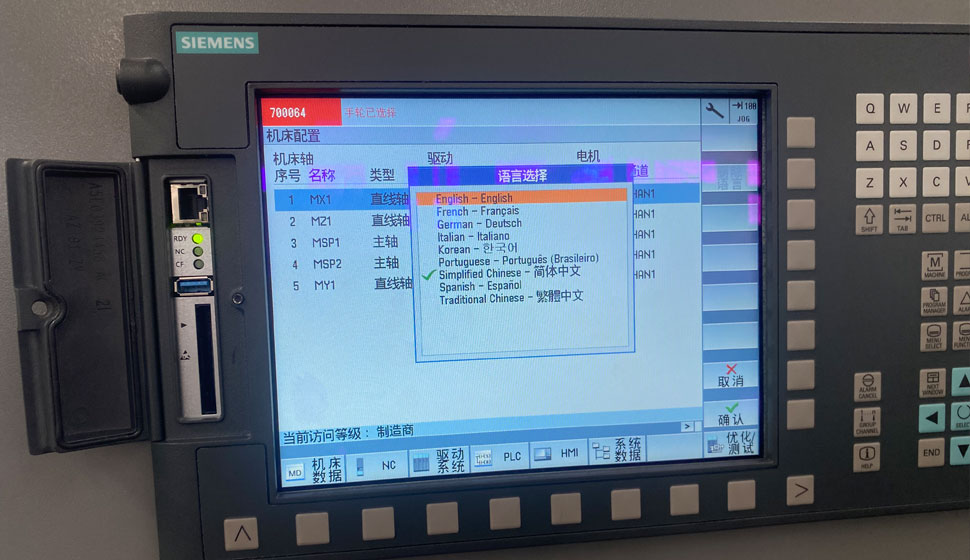

Sinumerik 808D CNC system
3-jaw non-through-hole chuck
C-axis
Programmable hydraulic tailstock
Hydraulic tailstock
Auto door

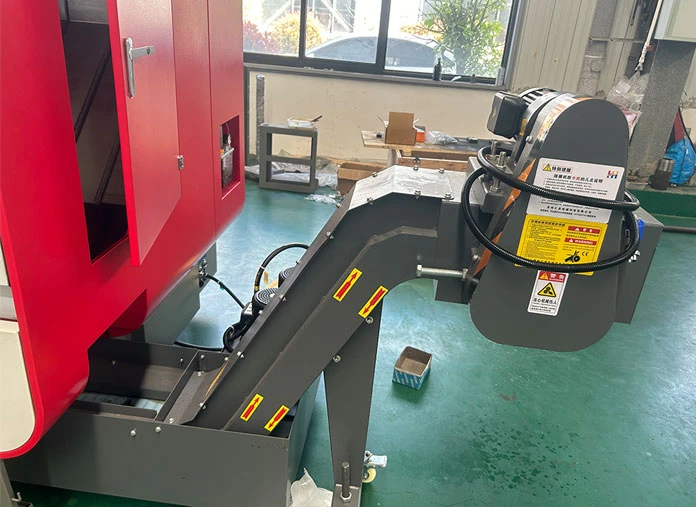

Chip conveyor & trolley

High pressure pump
Oil mist collector
Oil skimmer

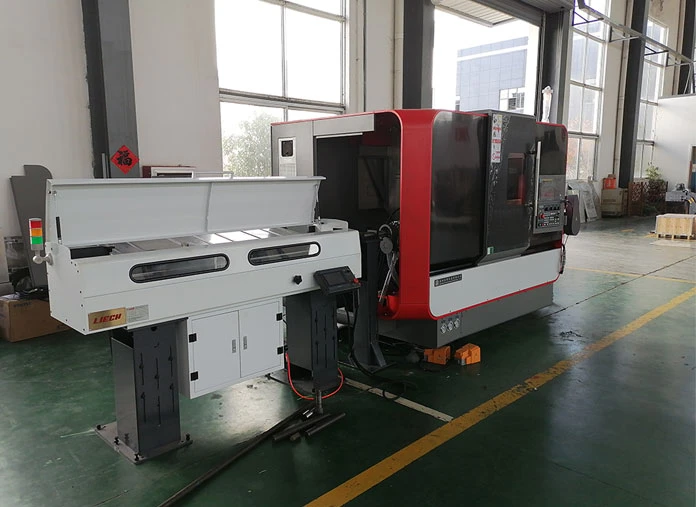

Bar feeder
Parts catcher
Robot
Tool setter
Workpiece probe
Static tool holder

Video

AE55YSS Slant bed double spindle double turret turning center

AE45Y Slant bed processing

Characteristic





Turret

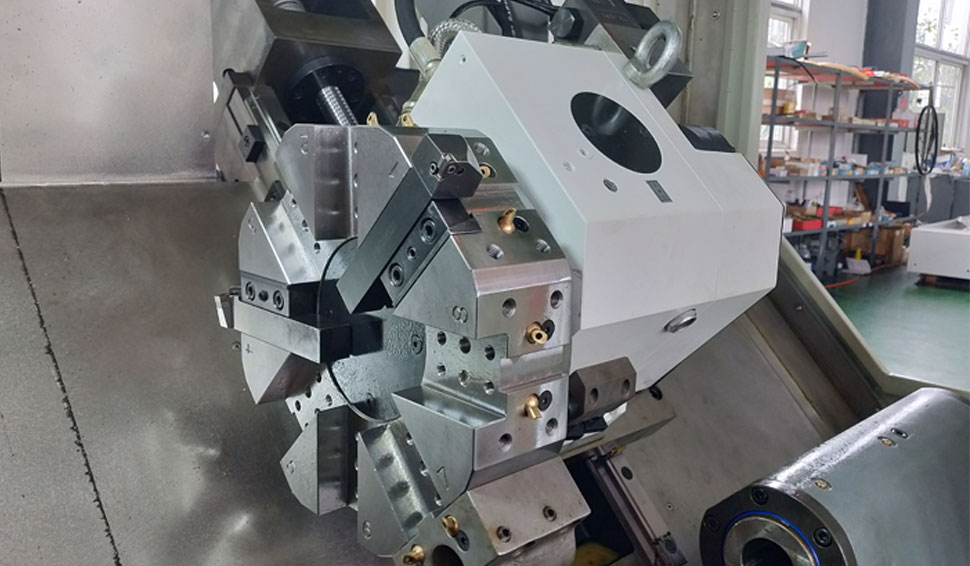

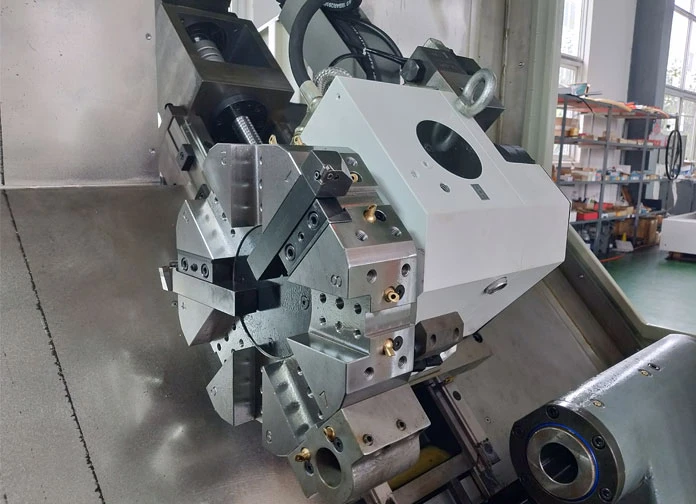

This lathe adopts 12 positions hydraulic turret.

The turret rotation is driven by hydraulic motor for high torque output and maximum stability.Turret clamping/unclamping is operated by hydraulic power with smooth motion, and this turret canwithstand working load of heavy duty machining.

CNC system

The CNC system adopts the famous FANUC 0i -TF (5)/SINUMERIK808 (other systems can be optionalaccording to the customer’s requirement). The program and parameters can be inputted manually ortransmited through the writer or through the RS232C standard communication interface. The system cancontrol 2 axes (X and Z) simultaneously. It also has the fiumctions of straight line, arc, thread interpolation andmany other fixed cycles. The minimum resolution of the CNC system is 0.001mmmIm addition to its standard control fumction and standard configuration, there is optional CNC’ system functionand configuration for the customer to choose
The electrical components used in the lathe all adopt the products with famous brands at domestic and abroadwhich ensures the high reliability, stability and long service life of the whole machine.
The operation panel is moderate in height, ergonomical and pleasant, which makes it easy for the operator tooperate and understand the operation of the lathe.

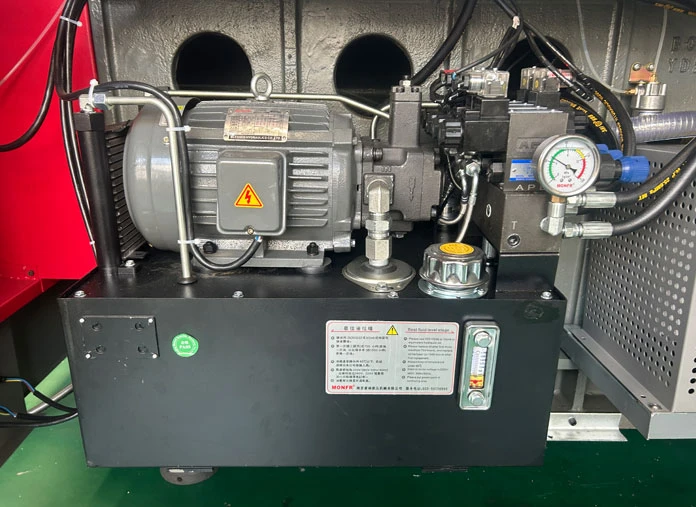

Chuck

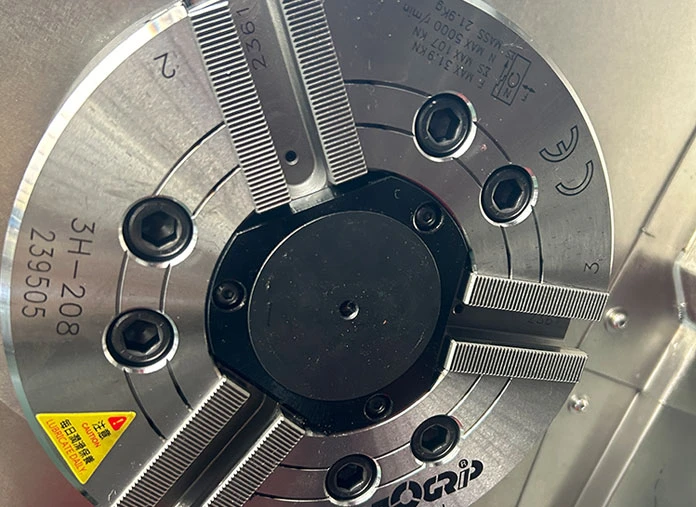

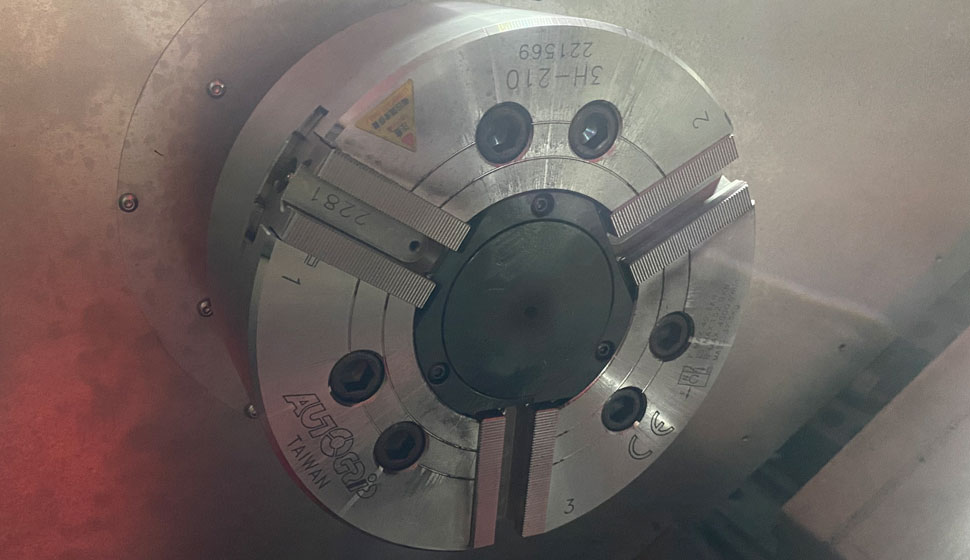

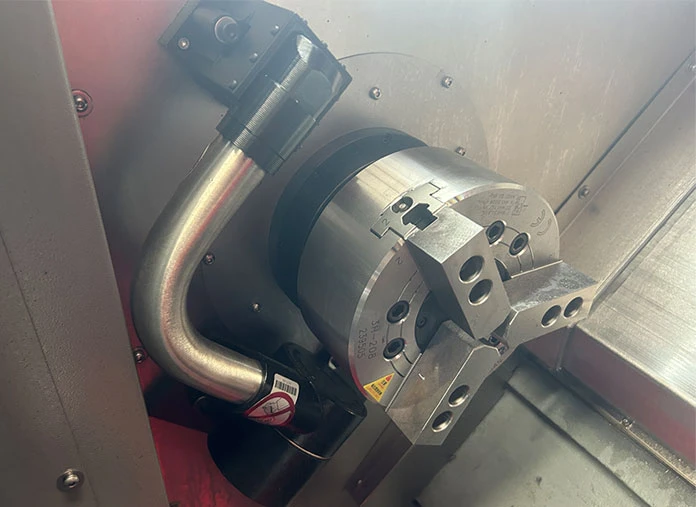

This lathe adopts 200 mm/8 inches hydraulic hollow chuck from AUTOGRIP, with high rigidity and high clamping accuracy.
