This machine belongs to the full function CNC lathe of semi-closed loop control system.
It applies to processing various complex spindles, jacket, disk. For example, machining interior lathe, conical, arc, end face, grooving, chamfering, and threads. AD-25M is with high speed, high efficiency cutting centre of milling, as well as drilling and milling. Besides, it can complete X, Z, C, three axes association and process various spindles, disc. What’s more, this machine can satisfy the demand for cutting metal, nonferrous metal with high speed.
The lathe design puts emphasis on spindle and the stability of heavy cut, which keeps the precision in IT5~IT6. The surface roughness is Ra0.4μm, Ra0.8μm(black metal). As the lathe with high university, especially applies to processing precision parts. Plus, it is with high craft apply ability, high efficiency, high precision, and high quality. In addition, it is widely use d to processing parts of cars, motorbikes, spindle, jackets, aircrafts, home appliances, hydraulic pneumatic system, bearings, shaft instruments, and metal valves. In conclusion, it is the ideal metal processing mechanical equipment.
| Items | Unit |
|---|---|
| Capacity | |
| Bed slant angle | ° |
| Swing over bed | mm |
| Max. turning diameter | mm |
| Max. turning diameter over carriage | mm |
| Max. length of workpiece | mm |
| Max. turning length | mm |
| Spindle | |
| Spindle nose type | - |
| Spindle bore | mm |
| Allowable bar diameter through spindle bore | mm |
| Max. spindle speed | rpm |
| Spindle motor power | kW |
| Hydraulic chuck | inch |
| Turret | |
| Turret type | - |
| No. of switching positions | - |
| Cross section of tool shank | mm |
| Boring bar diameter | mm |
| Stroke & Feed | |
| X-axis effective stroke | mm |
| Z-axis effective stroke | mm |
| Rapid traverse speed of X-axis |
m min |
| Rapid traverse speed of Z-axis | - |
| Tailstock | |
| Tailstock type | - |
| Tailstock quill diameter | mm |
| Tailstock quill taper | - |
| Tailstock quill max. stroke | mm |
| Others | |
| Electricity capacity | kVA |
| CNC system | - |
| Width × Height | mm |
| Length | mm |
| Weight | kg |
| AD25 | AD35 | AD45 | AD25 | AD35 |
|---|---|---|---|---|
| 45 | 45 | 45 | 45 | 45 |
| Φ600 | Φ700 | Φ850 | Φ600 | Φ700 |
| Φ420 | Φ550 | Φ800 | Φ420 | Φ550 |
| Φ420 | Φ500 | Φ650 | Φ420 | Φ500 |
|
700 1000 1500 2000 3000 |
1000 1500 2000 3000 |
1500 2000 3000 |
700 1000 1500 2000 3000 |
1000 1500 2000 3000 |
|
500 800 1300 1800 2800 |
800 1300 1800 2800 |
1300 1800 2800 |
500 800 1300 1800 2800 |
800 1300 1800 2800 |
| A2-8 | A2-11 | A2-15 | A2-8 | A2-11 |
| Φ86 | Φ105 | Φ131 | Φ86 | Φ105 |
| Φ75 | Φ90 | Φ110 | Φ75 | Φ90 |
| 3500 | 2000 | 1200 | 3500 | 2000 |
|
22 22 |
30 37 |
45 45 |
22 22 |
30 37 |
| 10 | 12 | 15 | 10 | 12 |
| Hydraulic turret | Hydraulic turret | Hydraulic turret | Hydraulic turret | Hydraulic turret |
|
8 12 |
8 12 |
8 12 |
8 12 |
8 12 |
| 25×25 | 25×25 | 32×32 | 25×25 | 25×25 |
| Φ40 | Φ50 | Φ60 | Φ40 | Φ50 |
| 230 | 305 | 430 | 230 | 305 |
|
500 800 1300 1800 2800 |
800 1300 1800 2800 |
1300 1800 2800 |
500 800 1300 1800 2800 |
800 1300 1800 2800 |
| 12 | 12 | 12 | 20 | 20 |
| 15 | 15 | 15 | 24 | 24 |

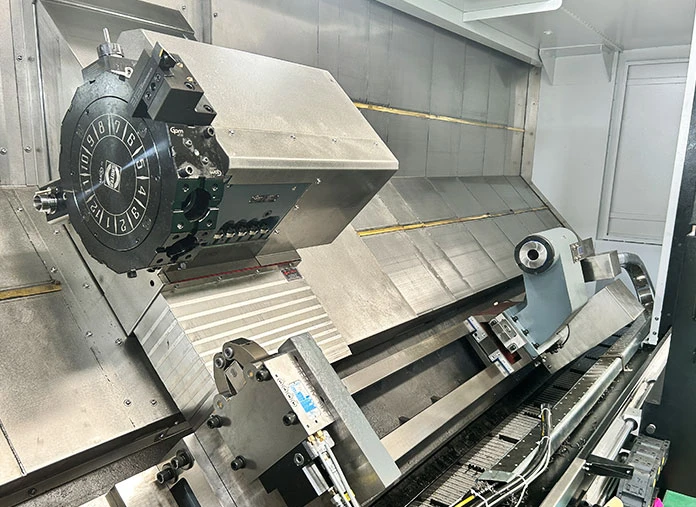

| Hydraulic tailstock | Hydraulic programmable tailstock | Hydraulic programmable tailstock | Hydraulic tailstock | Hydraulic programmable tailstock |
| Φ85 | Φ110 | Φ140 | Φ85 | Φ110 |
| MT5 | MT5 | MT6 | MT5 | MT5 |
| 100 | 100 | 130 | 100 | 100 |
| 36 | 59 | 69 | 36 | 59 |

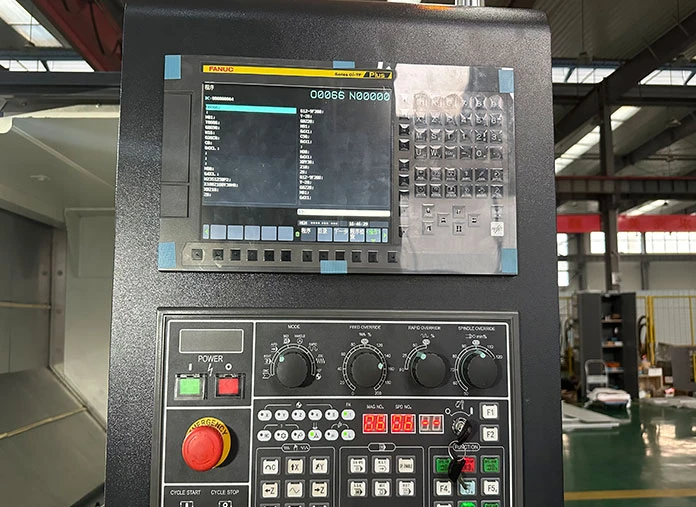

| Fanuc 0i-TF Plus (3B) | Fanuc 0i-TF Plus (3B) | Fanuc 0i-TF Plus (3B) | Fanuc 0i-TF Plus (3B) | Fanuc 0i-TF Plus (3B) |
| 2000×2100 | 2000×2300 | 2200×2400 | 2000×2100 | 2000×2300 |
|
3200 3500 4000 4500 5500 |
5000 5500 6500 |
6300 6800 7800 |
3200 3500 4000 4500 5500 |
5000 5500 6500 |
|
5000 5500 6500 7500 8500 |
8000 10100 11500 15500 |
15000 16000 18000 |
5000 5500 6500 7500 8500 |
8000 10100 11500 15500 |
The AD series is suitable for high-efficiency CNC turning of small and medium precision parts, including shafts, sleeves, discs, and batch production components.
A slant bed structure improves chip removal, rigidity, operator access, and automation layout, making it suitable for efficient production machining.
Depending on workpiece type and production requirement, automatic loading, bar feeder, robot loading, or conveyor solutions can be discussed.
Please send part drawing, material, diameter, length, tolerance, cycle time target, production quantity, and preferred CNC system.
