What is a slant bed CNC turning center used for?

A slant bed CNC turning center is used for precision turning and more complex machining processes that may require higher efficiency, more tools, and optional driven-tool functions.

When should I choose a turning center instead of a standard CNC lathe?

A turning center is recommended when the part requires more process integration, higher productivity, better chip removal, or complex machining in fewer setups.

What information should I send for AE-BX/BY selection?

Please send the part drawing, diameter, length, material, machining process, tolerance, tool requirements, and expected production volume.

Slant Bed CNC Turning Center：High Precision & Efficiency





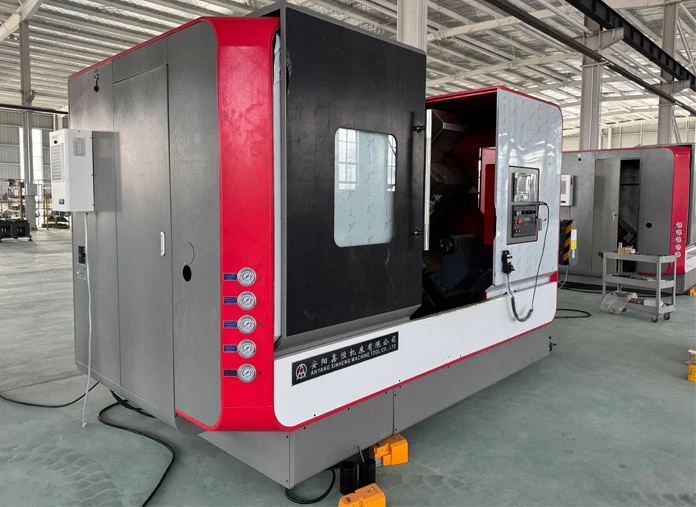

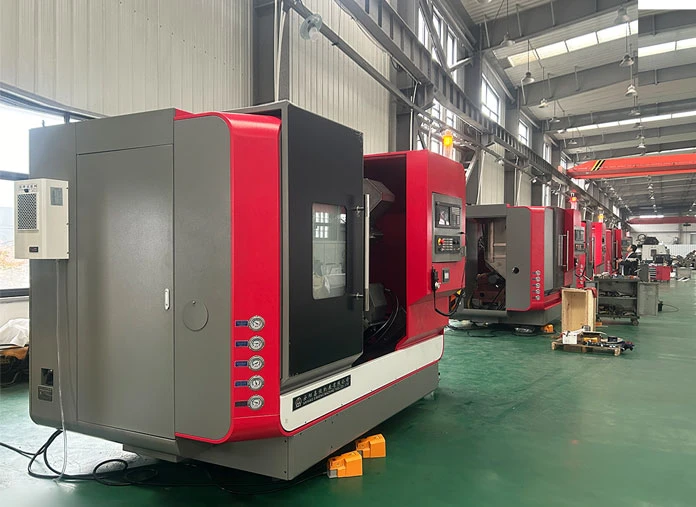

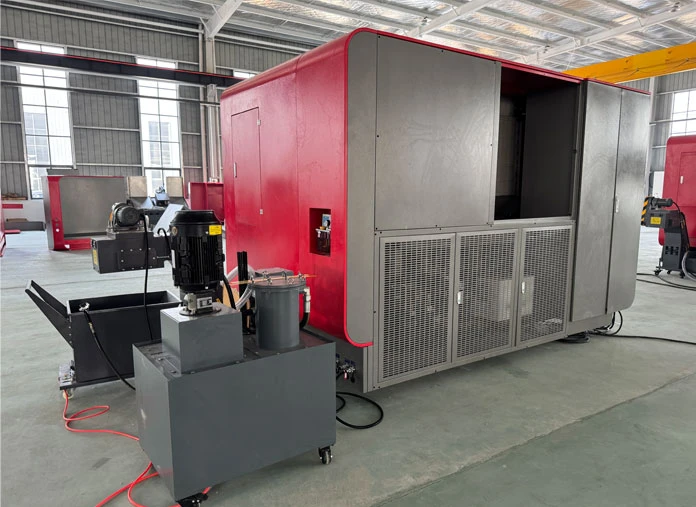

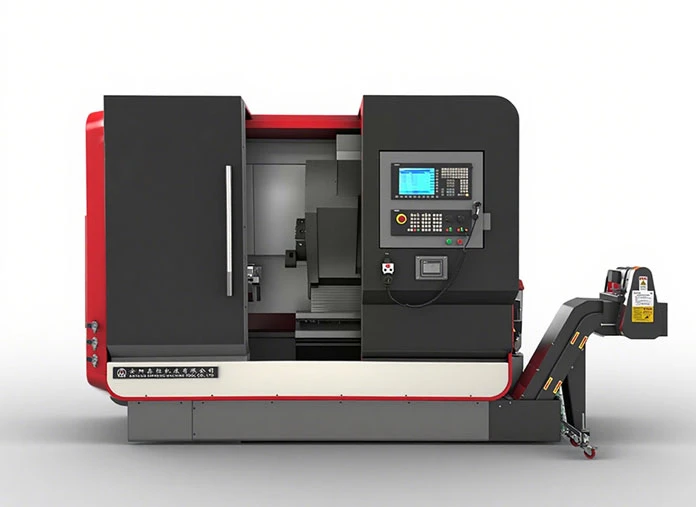

Slant bed CNC turning center

AE45Y slant bed CNC turning center is high-speed precision CNC turning center produced by our company. This turning center is equipped with power tooling turret and Y axis sliding table which can realize axial and radial non-centric machining for complex curved surfaces. The main accessories adopt the products of well-known manufacturers at home and abroad, the key parts are completed by the import precision machining center, to ensure manufacturing accuracy. Due to high speed cutting capability of AE series CNC turning center, productivity is greatly improved. This turning center has a wide application range and flexible operation. It is suitable for processing various kinds of complicated shafts, sleeves, disk parts with once clamping, including slot milling, polygonal milling, roller burnishing, as well as turning inside and outer cylindrical surface, conical surface, arc surface, end face, groove, chamfer, thread, etc. It is especially suitable for alternate processing of various kinds of workpiece in medium and small batches. It has the advantages of strong technological adaptability, high processing efficiency, low waste rate, good consistency of finished products, and it can reduce the requirements for workers’ technical proficiency, at the same, the machining efficiency and accuracy are greatly improved.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Bed slant angle	°
Swing over bed	mm
Max. turning diameter	mm
Max. turning diameter over carriage	mm
Max. drilling and milling diameter 90°/0°	mm
Max. length of workpiece	mm
Max. turning length	mm
Stroke &Feed
X-axis effective stroke	mm
Y-axis effective stroke	mm
Z-axis effective stroke	mm
Rapid traverse speed of X-axis/Z-axis	m min
Rapid traverse speed of Y-axis	m min
Max. feeding speed of X-axis/Z-axis	m min
Spindle
Spindle nose type	-
Spindle bore	mm
Allowable bar diameter through spindle bore	mm
Max. spindle speed	rpm
Spindle motor power	kW
Hydraulic chuck	inch
Accuracy
Repeat positioning accuracy of X-axis/Y-axis/Z-axis	mm
Positioning accuracy of X-axis/Y-axis/Z-axis	mm
Positioning accuracy of C-axis	°
Turret
Turret type	-
No. of switching positions	-
Cross section of tool shank	mm
Boring bar diameter	mm
Turret motor power	kW
Max. speed of turret motor	rpm
Stall torque of turret motor	N·m
Live tool holder type	-
Tailstock
Tailstock quill diameter	mm
Tailstock quill taper	-
Tailstock quill max. stroke	mm
Others
Electricity capacity	kVA
CNC system	-
Width×Height	mm
Length	mm
Weight	kg

AE40BX	AE45BX	AE55BX	AE40BY	AE45BY	AE55BY

30	30	30	30	30	30
Φ400	Φ420	Φ520	Φ400	Φ420	Φ520
Φ350	Φ350	Φ350	Φ350	Φ350	Φ350
Φ200	Φ200	Φ280	Φ200	Φ200	Φ280
Φ220 Φ150	Φ250 Φ200	Φ270 Φ250	Φ220 Φ150	Φ250 Φ200	Φ270 Φ250
600 1000 1500	1000 1500	1000 1500	500 1000 1500	850 1000 1500	850 1000 1500
390 800 1300	800 1300	800 1300	320 800 1300	650 800 1300	650 800 1300

185	215	260	185	215	260
-	-	-	±50	±50	±50
390	650	650	320	650	650
36 36	36 36	36 36	36 36	36 36	36 36
-	-	-	12	12	12
5	5	5	5	5	5

A2-6	A2-6	A2-8	A2-6	A2-6	A2-8
Φ66	Φ66	Φ86	Φ66	Φ66	Φ86
Φ50	Φ55	Φ75	Φ50	Φ55	Φ75
4000	4000	2500	4000	4000	2500
11	11	15	11	11	15
8	10	12	8	10	12

0.003 (full stroke)	0.003 (full stroke)	0.003 (full stroke)	0.003 (full stroke)	0.003 (full stroke)	0.003 (full stroke)
0.005 (full stroke)	0.005 (full stroke)	0.005 (full stroke)	0.005 (full stroke)	0.005 (full stroke)	0.005 (full stroke)
0.001 (full stroke)	0.001 (full stroke)	0.001 (full stroke)	0.001 (full stroke)	0.001 (full stroke)	0.001 (full stroke)

Power toolling turret	Power toolling turret	Power toolling turret	Power toolling turret	Power toolling turret	Power toolling turret
12	12	12	12	12	12
25×25	25×25	25×25	25×25	25×25	25×25
Φ32	Φ32	Φ32	Φ32	Φ32	Φ32
2.7	2.7	2.7	2.7	2.7	2.7
4000	4000	4000	4000	4000	4000
12	12	12	12	12	12
BMT45 ER25	BMT55 ER32	BMT55 ER32	BMT45 ER25	BMT55 ER32	BMT55 ER32

Φ80	Φ80	Φ80	Φ80	Φ80	Φ80
MT5	MT5	MT5	MT5	MT5	MT5
100	100	100	100	100	100

30	30	35	30	30	35
Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)
1600×1700	1600×1700	2900×1700×1800	2430×1730×2100	3000×1730×2000	3000×1850×2100
2300 2700 3200	2700 3200	2900 3400	2400 2900 3400	3000 3150 3650	3000 3150 3650
3340 3500 3700	4600 4850	5700 6000	3600 3800 4000	5125 5200 5450	5410 5500 5800

Accessories

Standard :

Fanuc 0i-TF (5)CNC system
3-jaw through-hole chuck
Power head
BMT power turret
LED work light
Coolant system
Automatic Lubrication system
Schneider electrical component
Cabinet shield
Leveling wedge

Anchor bolt
Wrench
Foot switch
C-axis
Hydraulic tailstock
Hydraulic spindle brake

Optional :

Syntec system
Sinumerik 808D CNC system
Fanuc 0i-TF (1) CNC system
3-jaw non-through-hole chuck
Cabinet air conditioner
Programmable hydraulic tailstock

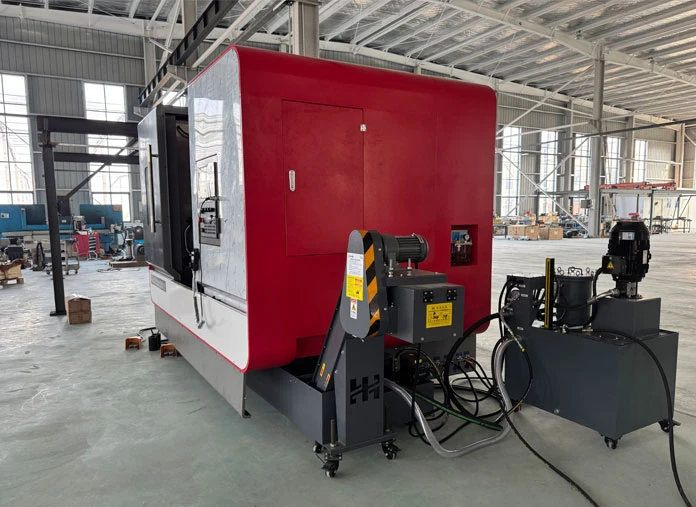

Chip conveyor & trolley
Tool setter
High pressure pump
Oil mist collector

Oil skimmer

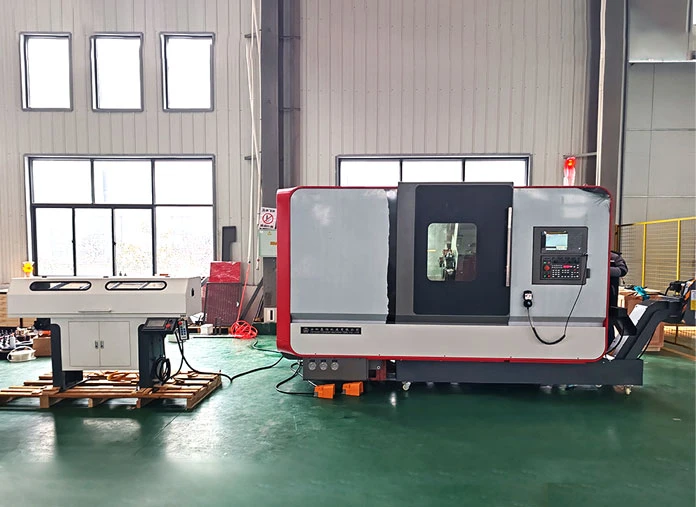

Bar feeder
Parts catcher
Robot
Cabinet air conditioner
Auto door
Workpiece probe
Static tool holder
Power tool holder
VDI power turret

Video

AE45Y Slant bed turning center processing

AE-BX/BY Applications

Characteristic





Bed

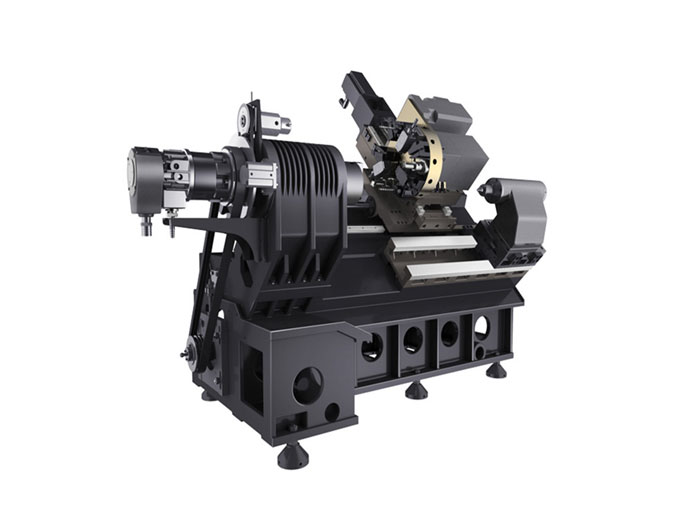

The bed adopts a 45° slant bed with an integral structure, which is cast by high strength nodular cast iron HT300 (the tensile strength is 300Mpa) and treated by twice strict aging treatments. The rough castings adopt resin sand molding casting piece with the sand core that improves the anti-vibration performance of the lathe. The lathe has the advantages of reasonable stiffener rib layout, wide guideway surface and high overall rigidity. In this way, the accuracy and rigidity of the lathe are both guaranteed.

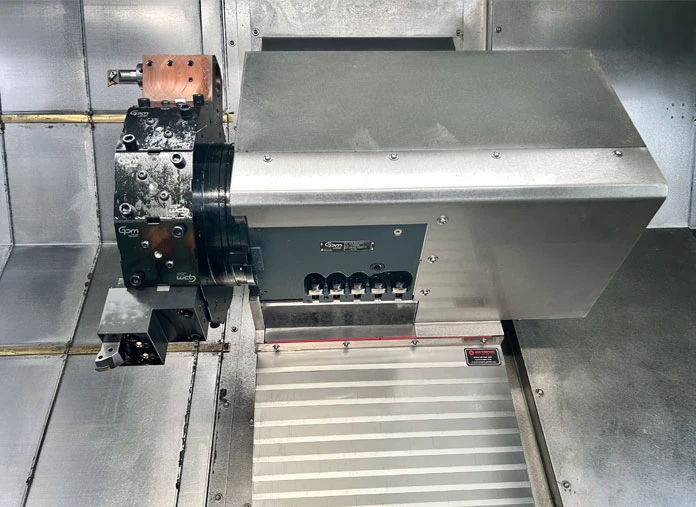

Power tooling turret

This turning center adopts BMT 40 type 12 positions power tooling turret.This power tooling turret can be installed with all kinds of power tools to realize axial and radial non-centricmachining for complex curved surfaces. Axial (0°) miling tool holder, radial (90°) milling tool holdertrning tool holder, facing tool holder and boring bar holder can be installed to achieve slot milling.polygonal milling,turning,facing, boring, etcStandard ERl6 collet is used to clamp tools.
The turret indexing and power tooling rotation re driven by servo motorsIndexing time of power tooling turret is much faster than hydraulic turret.

Collet chuck

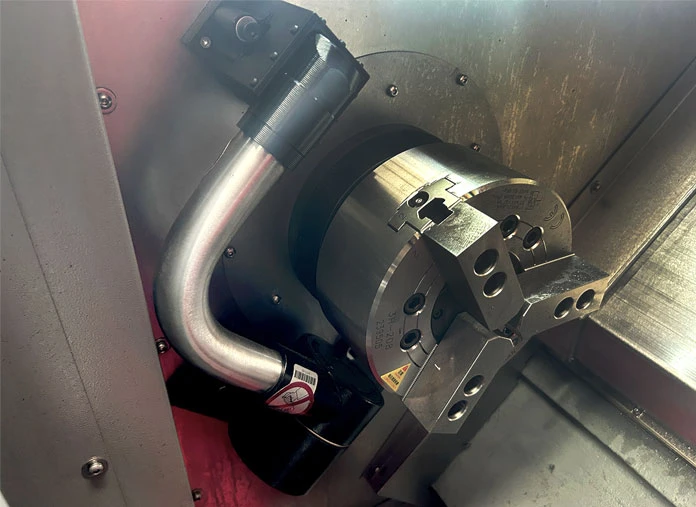

This lathe adopts 200 mm/8 inches hydraulic hollow chuck from AUTOGRIP, with high rigidity and high clamping accuracy.The clamping and unclamping functions are controlled by foot pedal, easy for operation.
