When should I choose a 5-axis vertical machining center?

A 5-axis machine is recommended for complex curved surfaces, multi-face machining, high precision components, and parts that should be completed with fewer setups.

What industries use 5-axis machining centers?

They are used in precision machinery, molds, aerospace-related parts, automotive components, medical components, and complex industrial parts.

What should I send for quotation?

Please send part drawings, material, machining process, required accuracy, size range, preferred CNC system, and production quantity.

The Pinnacle of Machining: 5-Axis Vertical Precision.





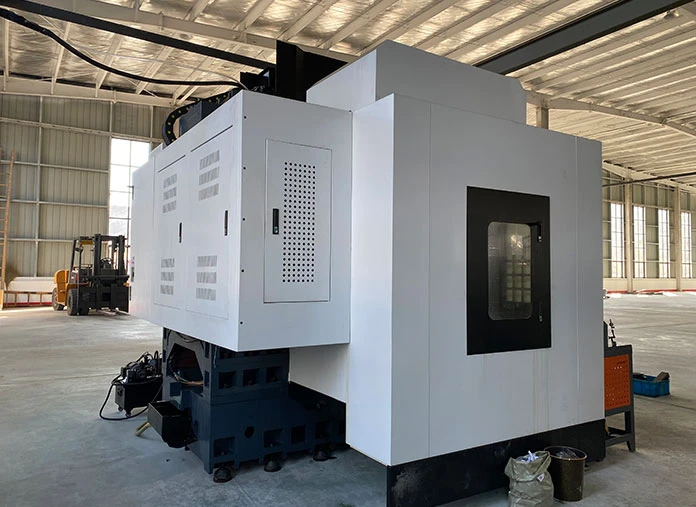

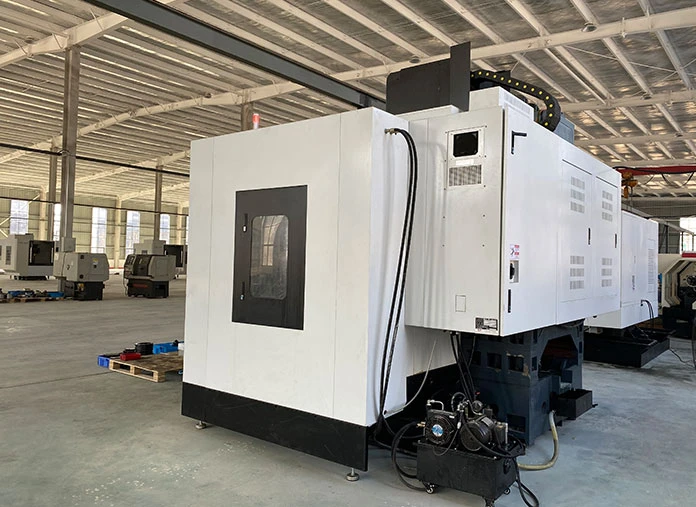

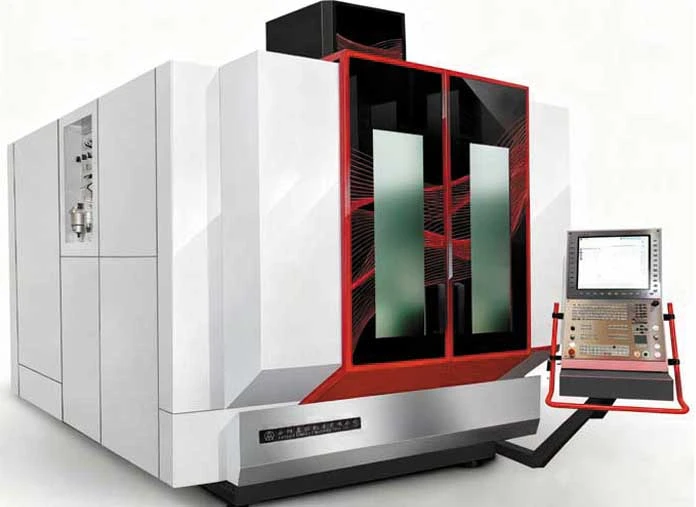

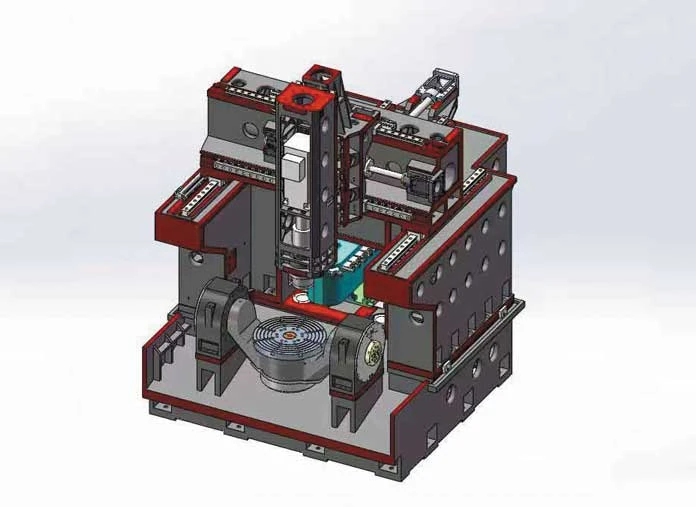

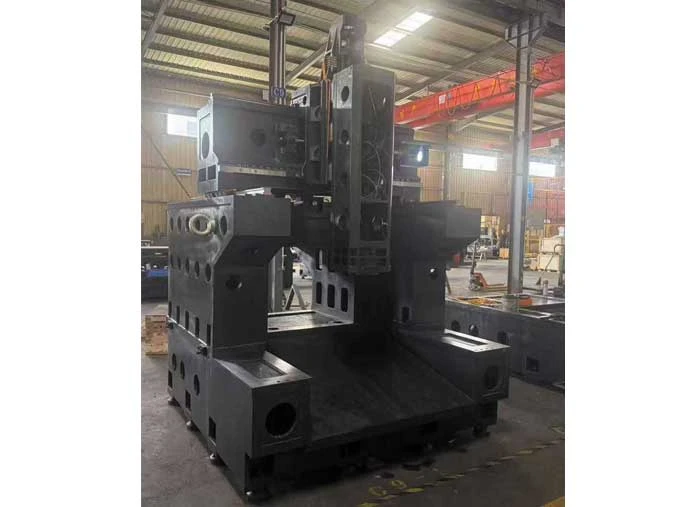

5-axis Vertical machine center

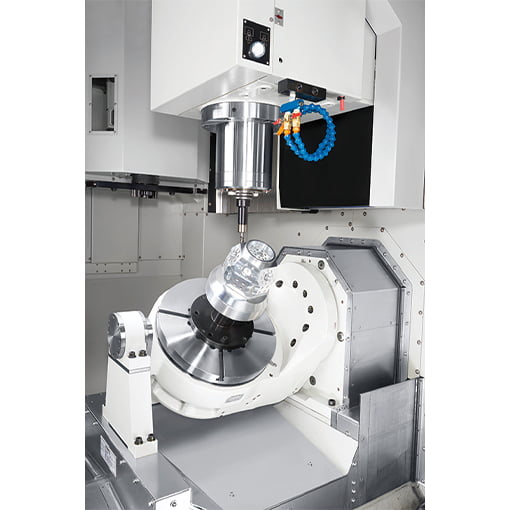

V5M series 5-axis vertical machining centers deliver high-precision, multi-operation machining for complex parts such as housings, molds, aerospace components, and medical devices. These machines enable complete processing—including milling, drilling, boring, tapping, and 3D contouring—in a single setup, thanks to full 5-axis simultaneous control.

Ideal for small to medium batch production, the CMC series reduces setup time, ensures exceptional accuracy, and improves surface quality across various materials like aluminum, titanium, and composites. With support for unmanned operation and advanced thermal management, these machining centers help shorten lead times, lower costs, and boost manufacturing efficiency—making them a smart investment for high-value industries

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Worktable diameter	mm
Max. workpiece diameter	mm
Max. load capacity	kg
Distance between spindle nose to worktable	mm
Guideway type of X-axis/Y-axis/Z-axis	-
Spindle
Spindle nose type	-
Max. spindle speed	rpm
Spindle type	-
Spindle motor power	kW
Spindle torque	N·m
Feed
A-axis stroke	°
C-axis stroke	°
X-axis stroke	mm
Y-axis stroke	mm
Z-axis stroke	mm
Rapid traverse speed of X-axis/Y-axis/Z-axis	m min
Max. feeding speed of A-axis	rpm
Max. feeding speed of C-axis	rpm
Max. feeding speed of X-axis/Y-axis/Z-axis	m min

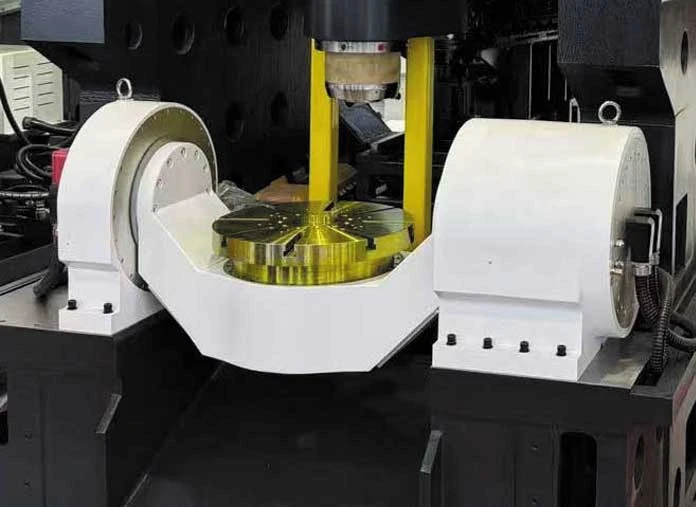

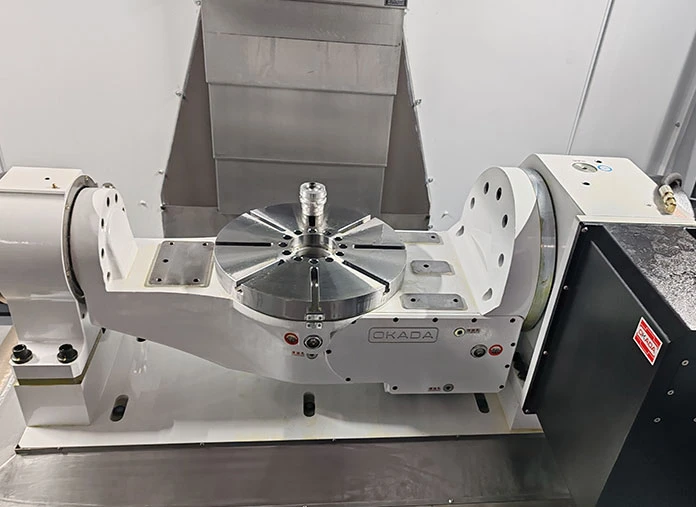

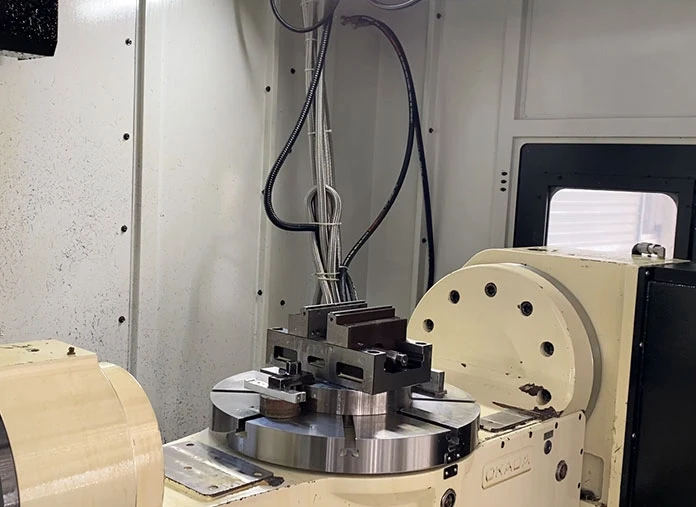

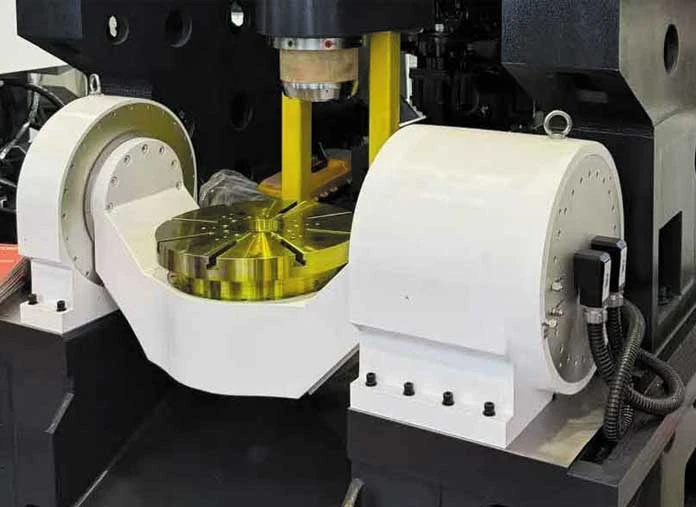

Rotary table
Rotary table type	-
A-axis rated torque	N·m
A-axis clamping torque	N·m
C-axis rated torque	N·m
C-axis clamping torque	N·m
ATC
ATC type	-
No. of switching positions	pcs
Max. tool diameter with/without tool in adjacent tool position	-
Max. tool weight	kg
Max. tool length	mm
Precision
Repeat positioning accuracy of A-axis/C-axis	°
Positioning accuracy of A-axis/C-axis	°
Repeat positioning accuracy of X-axis/Y-axis/Z-axis	mm
Positioning accuracy of X-axis/Y-axis/Z-axis	mm
Others
Electricity capacity	kVA
Length × Width × Height	mm
Net weight	kg
CNC system
Quantity of simultaneous axis	pcs
Typical function	-
CNC system	-

V5M3240DD	V5M4040DD	V5M5050DD	V5M6355DD	V5M8055DD

Φ320	Φ400	Φ500	Φ630	Φ800
Φ520	Φ590	Φ630	Φ850	Φ850
330	500	500	800	1000
120-520	150-550	150-650	150-700	150-700
Linear Linear Linear	Linear Linear Linear	Linear Linear Linear	Linear Linear Linear	Linear Linear Linear

HSK-A63	HSK-A63	HSK-A63	BBT40	BBT40
20000	20000	20000	18000	18000
Motorized spindle	Motorized spindle	Motorized spindle	Motorized spindle	Motorized spindle
9.5	9.5	9.5	20	20
30	30	30	53	53

±120	±120	±120	±120	±110
360	360	360	360	360
460	550	650	800	800
460	500	600	850	1000
400	400	500	550	550
36 36 36	36 36 36	36 36 36	30 30 30	30 30 30
100	100	80	80	40
100	100	100	100	60
10	10	10	10	10

Drive drive (DD)	Drive drive (DD)	Drive drive (DD)	Drive drive (DD)	Drive drive (DD)
540	614	1500	1354	7000
2500	3000	3000	3600	14000
200	300	600	902	2000
1500	1500	1200	2400	4000

Carousel type	Carousel type	Carousel type	Carousel type	Carousel type
24	32	32	32	32
80 200	80 200	80 200	80 200	80 200
8	8	8	8	8
300	300	300	300	300

0.002	0.002	0.002	0.002	0.002
0.003	0.003	0.003	0.003	0.003
0.003	0.003	0.003	0.005	0.005
0.005	0.005	0.005	0.008	0.008

45	45	47	85	111
2650×2150×2800	3100×2250×2850	3200×2350×2950	3760×2750×3100	4050×2950×3200
6300	8700	8900	12500	14200

5	5	5	5	5
RTCP	RTCP	RTCP	RTCP	RTCP
Sinumerik ONE	Sinumerik ONE	Sinumerik ONE	Sinumerik ONE	Sinumerik ONE

Accessories

Standard :

Sinumerik ONE CNC system
24 ATC
Movable Manual Pulse Generator
LED work light
Coolant system
Automatic Lubrication system
Schneider electrical component
Cabinet shield
Leveling wedge
Anchor bolt
Wrench
Chip conveyor & trolley

Optional :

Spindle speed upgrade
Coolant-through spindle bore
Cabinet air conditioner
High pressure pump
Oil mist collector

Oil skimmer
Robot
Transformer
Tool setter
Workpiece probe
32 ATC

Video

V5M3256 FIve-axis vertical machining center

🏎️ 5-Axis VMC = Car Prototyping Done Right!

Characteristic





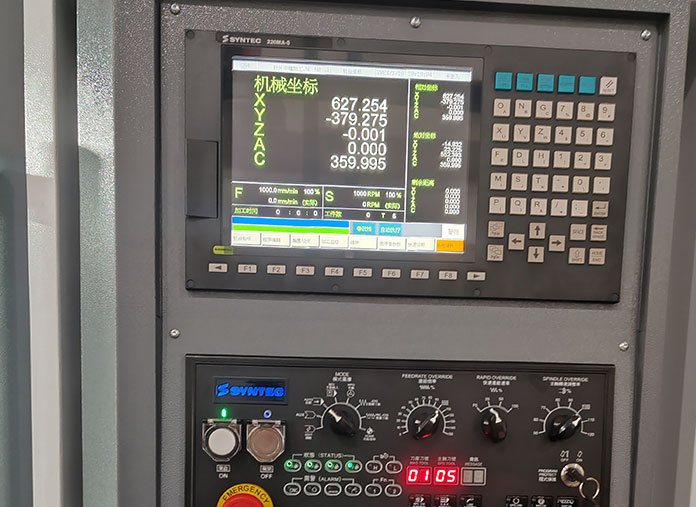

CNC system

The CNC system is equipped with Siemens 840D system and supporting drivers, which are fully functional and easy to operate; standard communication interface, UF socket and related software, with DNC online processing function.

ATC

It adopts Taiwan disc type 24 tool magazine, which is installed on the side of the column. When changing tools, the cutterhead is driven and positioned by the roller cam mechanism. After the spindle reaches the tool changing position, the robot tool changer (ATC) completes the tool return and tool feeding. ATC is a gear hobbing cam mechanism that can operate at high speed and noiselessly after being preloaded, making the tool changing process fast and accurate.

Spindle

The spindle group adopts Taiwan’s 15000rpm direct-coupled spindle unit, which has high precision and high rigidity. The bearing adopts NSK bearings specially used for P4-level spindles. After the whole set of spindles is assembled under constant temperature conditions, they are all tested through dynamic balance correction and running-in, which improves the service life and reliability of the whole set of spindles.
