Your Reliable Workhorse: Efficient 3/4-Axis Vertical Machining.





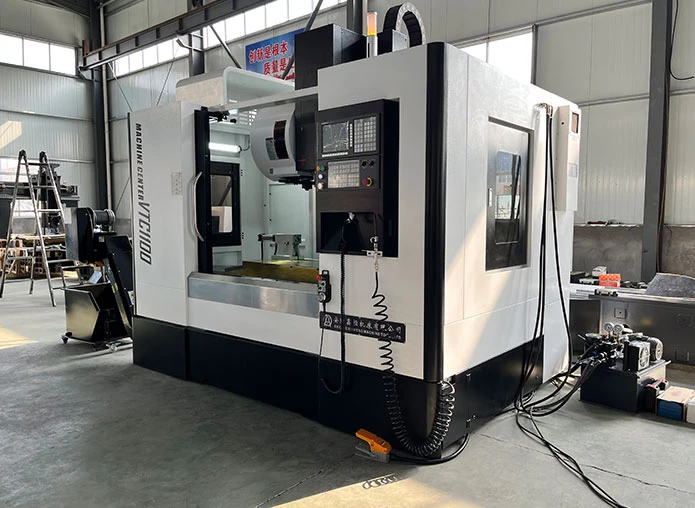

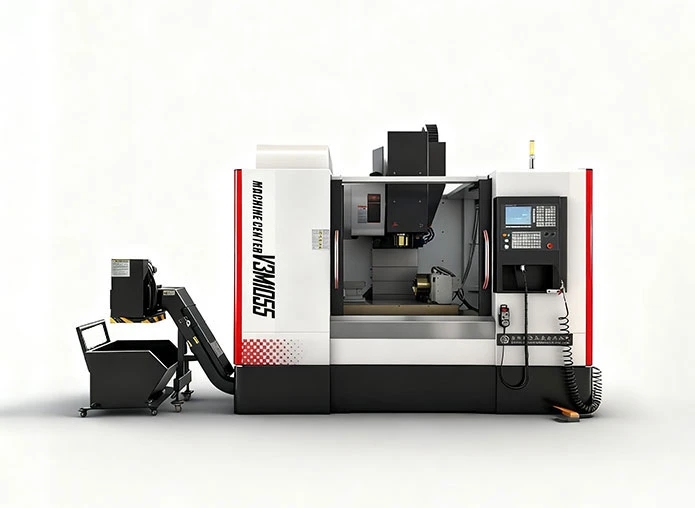

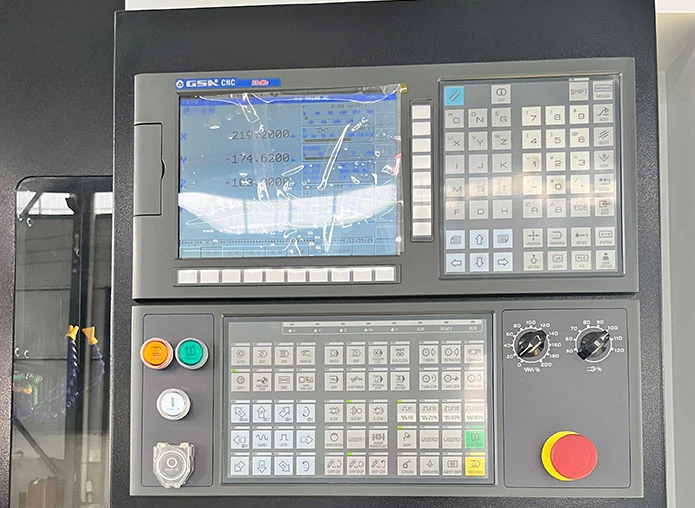

3/4-axis Vertical machine center

This machine comes standard with three-axis high-speed milling and offers an optional fourth-axis for multi-face compound machining, enabling the complete processing of complex angular features and multi-step parts in a single setup—significantly improving production efficiency and machining consistency. The machine body features a high-rigidity structure and high-quality guideway systems, maintaining exceptional stability even under heavy cutting conditions and ensuring long-term accuracy. An optional high-performance electric spindle provides a wide range of speeds and torque options, making it suitable for processing various materials including steel, aluminum, and composite metals. Multiple tool magazine options are available for fast automatic tool changes, ideal for small-to-medium batch production of diverse part types. The user-friendly CNC system supports online simulation and real-time compensation, greatly reducing operational complexity and setup time. Widely used in industries such as mold cores, precision housings, new energy components, and medical parts, it helps shorten delivery cycles, improve surface quality, reduce overall costs, and easily integrate into automated production cells.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Worktable dimension	mm×mm
Max. load capacity	kg
T slot	-
Distance between spindle center to Z-axis guideway surface	-
Distance between spindle nose to worktable	mm
Guideway type of X-axis/Y-axis/Z-axis
Spindle
Spindle nose type	-
Max. spindle speed	rpm
Spindle transmission	-
Spindle motor power	kW
Spindle torque	N·m
Feed
X-axis stroke	mm
Y-axis stroke	mm
Z-axis stroke	mm
Rapid traverse speed of X-axis/Y-axis/Z-axis	m min
Max. feeding speed of X-axis/Y-axis/Z-axis	m min
ATC
ATC type	-
No. of switching positions	pcs
Max. tool diameter with/without tool in adjacent tool position	-
Max. tool weight	kg
Max. tool length	mm
Tool indexing time (excluding tool releasing and locking time)	sec.
Precision
Repeat positioning accuracy of X-axis/Y-axis/Z-axis	mm
Positioning accuracy of X-axis/Y-axis/Z-axis	mm
Others
Electricity capacity	kAV
Long× Width × Height	mm
Net weight	kg
CNC systhem	-

V3M650	V3M850	V3M855	V3M1055	V3M1160	V3M1275	V3M1370	V3M1380	V3M1380H	V3M1580	V3M1580H	V3M1690	V3M1890	V3M2285H

500×800	500×1000	550×1000	550×1050	600×1200	700×1300	1400×700	1400×800	1400×800	1600×800	1700×800	1800×900	2000×900	2200×820
400	400	500	800	800	800	1200	1250	1250	1400	1500	2000	2000	1400
5-16×90	5-18×90	5-18×90	5-18×100	5-18×100	7-18×100	5×18×110	7×18×110	7×18×110	7×22×110	5×22×135	5×22×165	5×22×165	5×18×120
550	570	570	590	650	-	750	855	865	855	865	950	950	850
120-620	120-620	120-670	120-670	120-720	120-720	150-850 60-760	160-860	150-850	155-855	100-800	160-760	115-835	210-910
Linear Linear Linear	Linear Linear Linear	Linear Linear Linear	Linear Linear Linear	Linear Linear Linear	Linear Linear Linear	Linear Linear Linear	Linear Linear Linear	Linear Linear quenched	Linear Linear Linear	Linear Linear quenched	Linear Linear quenched	Linear Linear quenched	Linear Linear quenched

BT40	BT40	BT40	BT40	BT40	BT40 BT50	BT40 BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
10000 12000	10000 12000	10000 12000	10000 12000	8000 12000	8000 12000	8000	6000	6000	6000	6000	6000	6000	6000
synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt	synchronous belt
5.5 7.5	7.5 11	7.5 11	11 15	11 15	11 15	15-18.5	15-18.5	15-18.5	15-18.5	15-18.5	15-18.5	15-18.5	15-18.5
70	95.5	95.5	118	118	118	143	143	143	236	236	236	236	-

600	800	800	1000	1100	1200	1300	1300	1300	1500	1500	1600	1800	2000
500	500	550	550	600	750	700	800	800	800	800	900	900	800
500	500	550	550	600	600	700	700	700	700	700	600	720	700
48 48 48	48 48 36	48 48 36	36 36 36	36 36 24	24 24 24	24 24 24	24 24 24	24 24 15	24 24 24	24 24 15	24 24 15	24 24 15	24 24 20
10	10	10	10	10	10	10	10	10	10	10	10	10	8

Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type	Vertical disc type
24	24	24	24	24	24	24	24	24	24	24	24	24	24
80 150	80 150	80 150	80 150	-	-	-	-	-	-	-	-	-	-
8	8	8	8	8	8	18	18	18	18	18	18	18	18
300	300	300	300	300 350	300 350	300	300	300	300	300	300	300	300
1.3-2.2	1.3-2.2	1.3-2.2	1.3-2.2	-	-	-	-	-	-	-	-	-	-

0.003 300	0.003 300	0.003 300	0.003 300	0.003 300	0.003 300	±0.003	±0.003	±0.003	±0.003	±0.003	±0.005	±0.005	0.005
0.005 300	0.005 300	0.005 300	0.005 300	0.005 300	0.005 300	±0.005	±0.005	±0.005	±0.005	±0.005	±0.008	±0.008	0.008

16	20	20	25	25	25	30	30	30	30	30	30	30	30
2550×2250×1950	2600×2250×2600	2600×2250×2600	2800×2250×2625	3150×2300×3281	3150×2300×3281	3200×2540×2600	3600×3050×3610	3600×3050×2890	3900×2740×3650	4200×3200×3650	4600×3850×2105	5200×3600×2345	5420×2800×2810
4500	5100	5100	5300	6200	8800	11000	11500	13000	13500	13000	13500	14500	10700
Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)	Fanuc 0i-MF (5)

Accessories

Standard :

Fanuc 0i-MF (5) CNC system
16/24 ATC
Movable Manual Pulse Generator
LED work light
Coolant system
Automatic Lubrication system
Schneider electrical component
Cabinet shield
Leveling wedge
Anchor bolt
Wrench

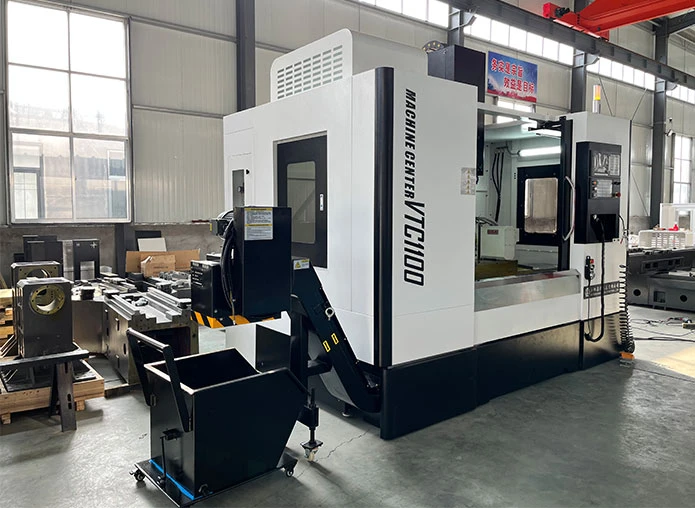

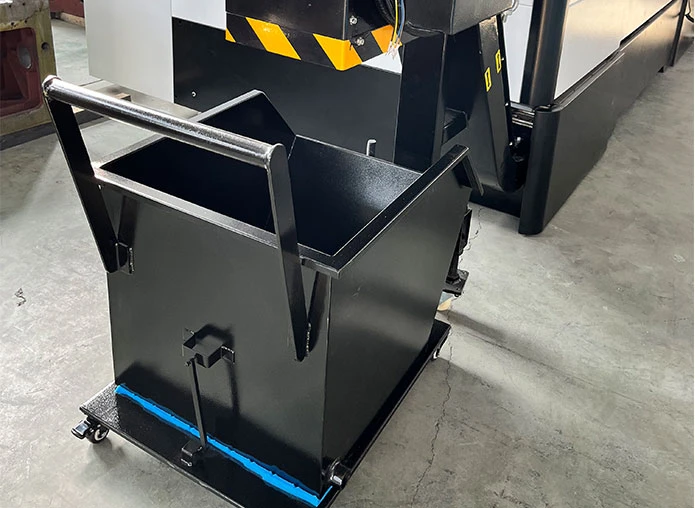

Chip conveyor & trolley

Optional :

GSK CNC system
Siemens CNC system
Mitsubishi CNC system
Spindle speed upgrade
Coolant-through spindle bore
Cabinet air conditioner
High pressure pump
Oil mist collector

Oil skimmer
Parts catcher
Robot
Transformer
Tool setter
Workpiece probe

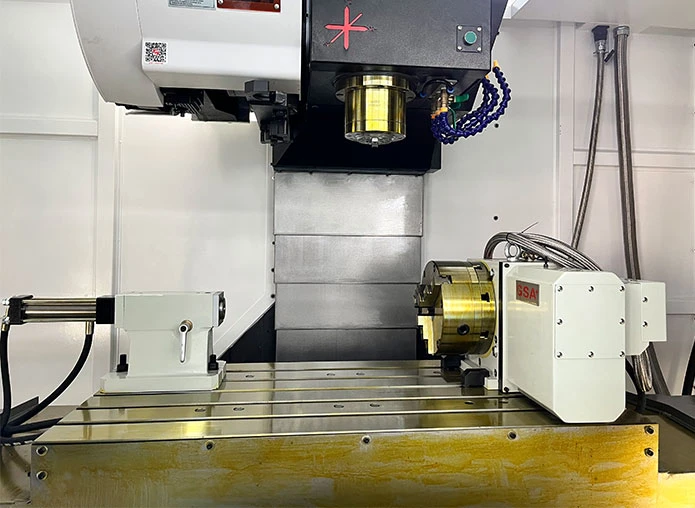

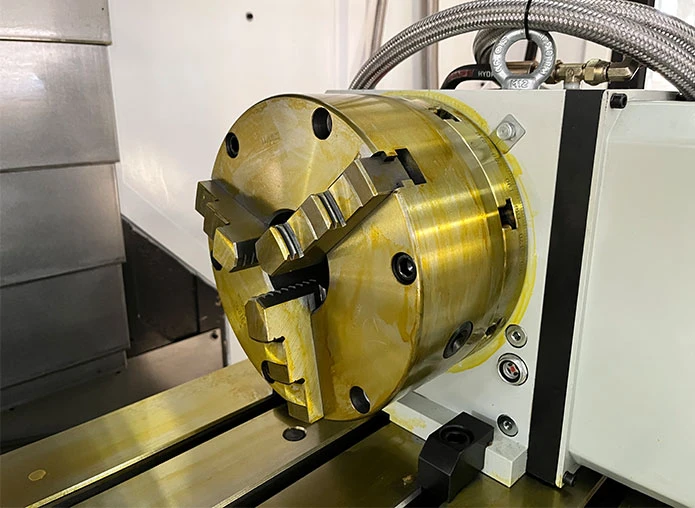

4-axis
32 ATC

Video

🚀 V3M1100 Machining Center: Equipped for Maximum Productivity!

Four-axis vertical machine center

Characteristic





Spindle

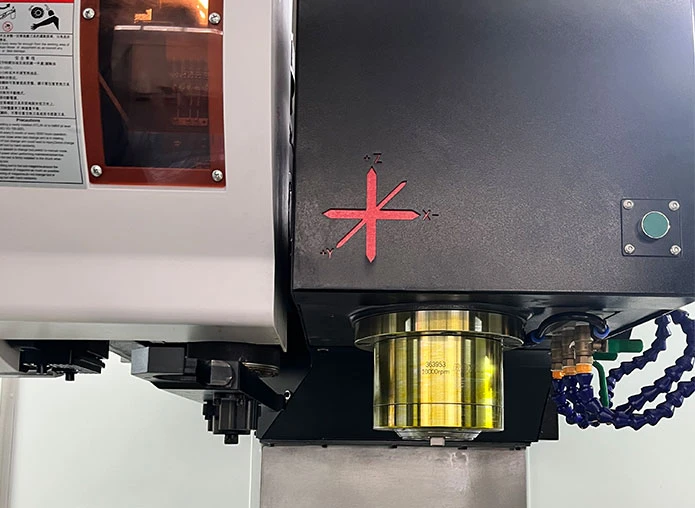

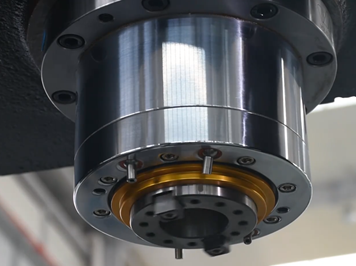

Adopt German FAG/Japan NSK spindle bearing

ATC

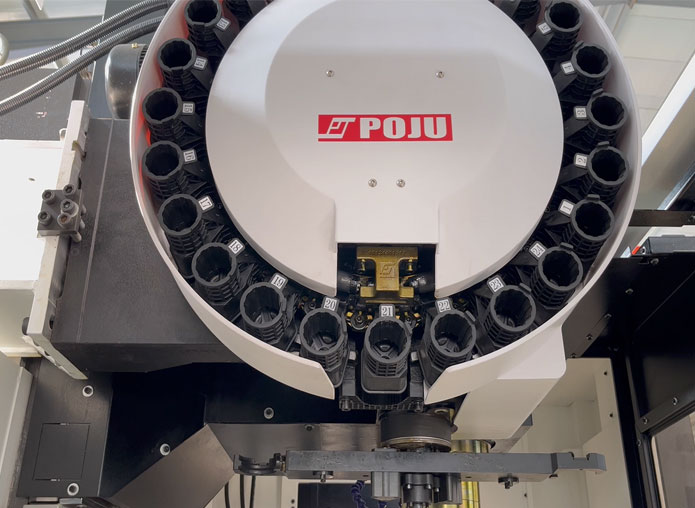

High-quality 24 mechanical tool magazine, accurate tool change, short tool change time and high efficiency

Worktable

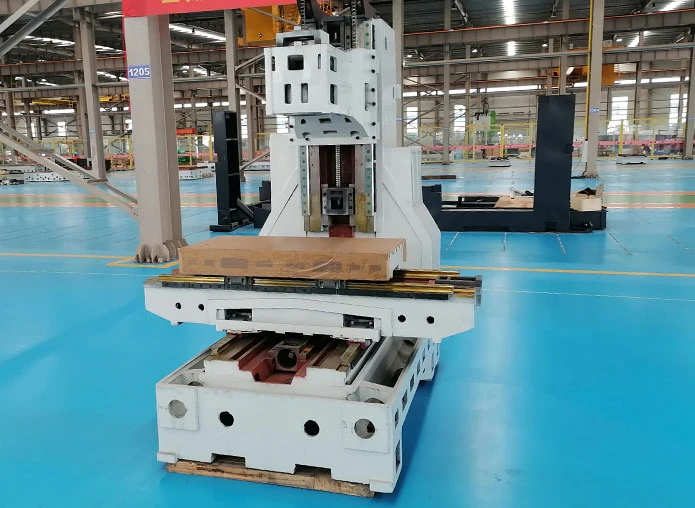

The base is wide, the column is a triangular box-shaped structure, and the heavy-load full support design is solid, which can ensure the heavy-load capacity during processing.
