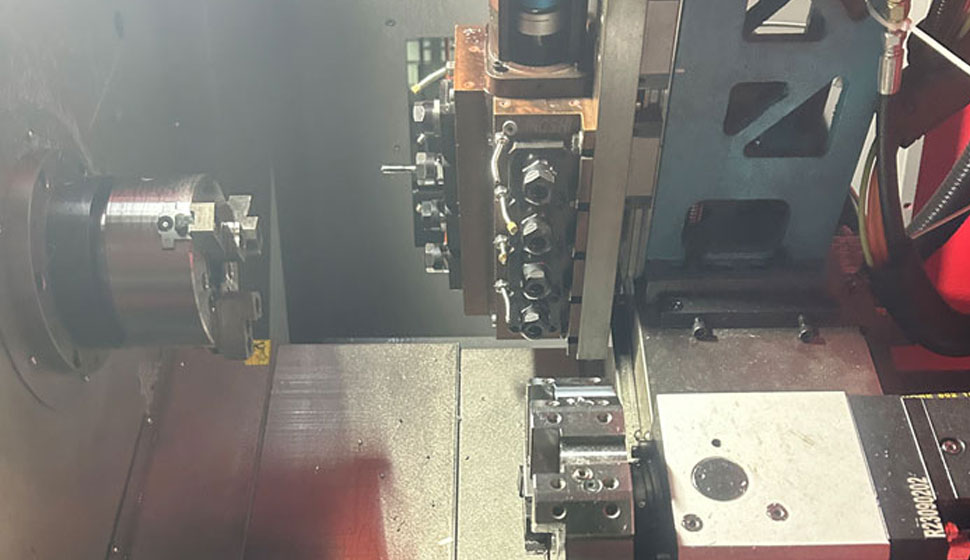

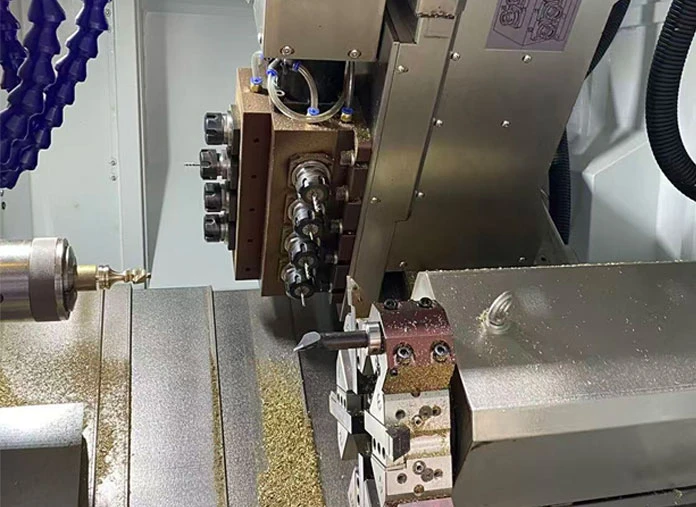

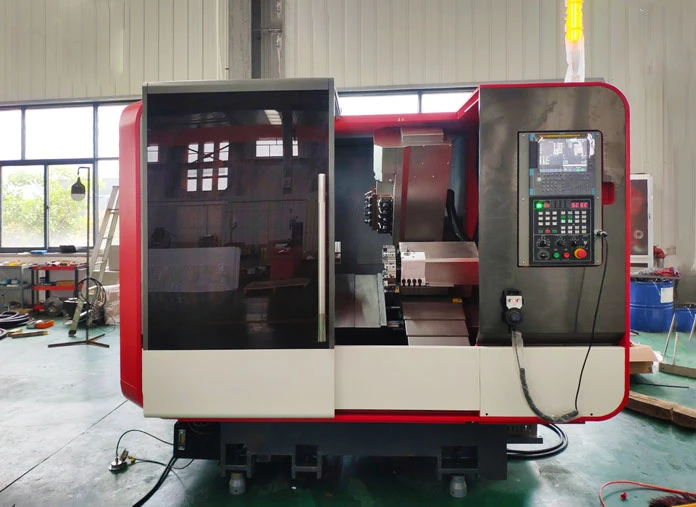

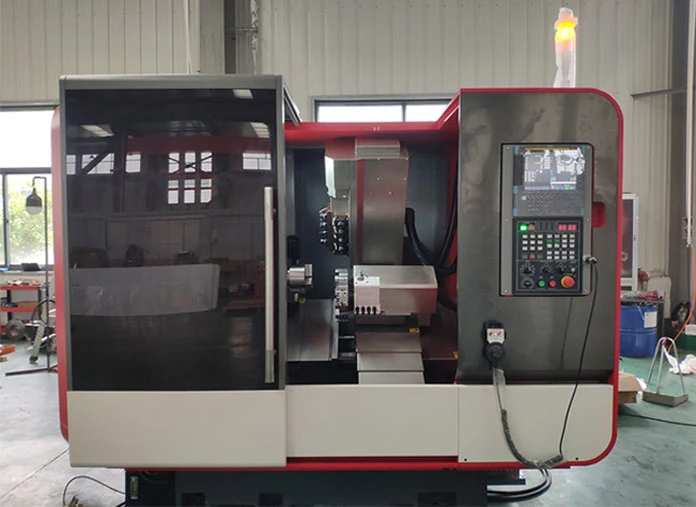

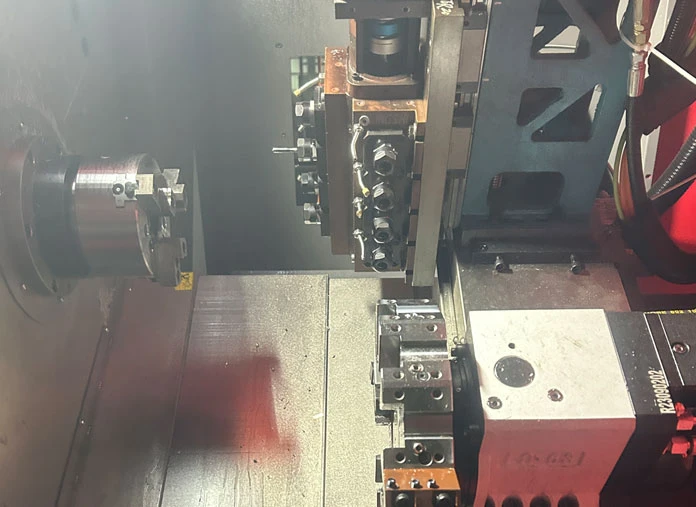

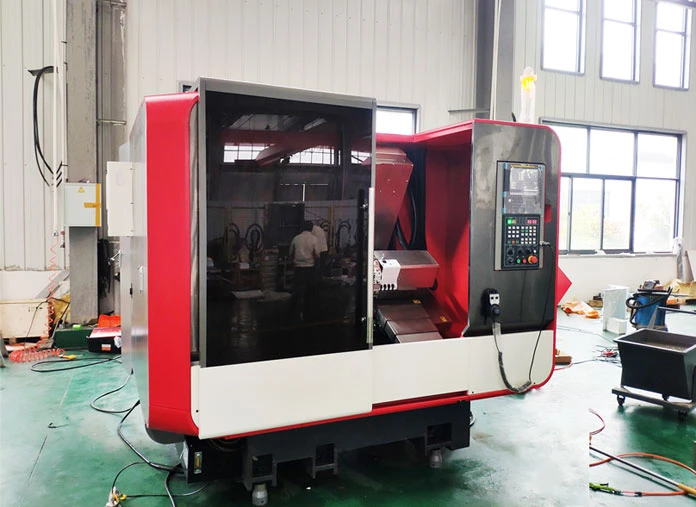

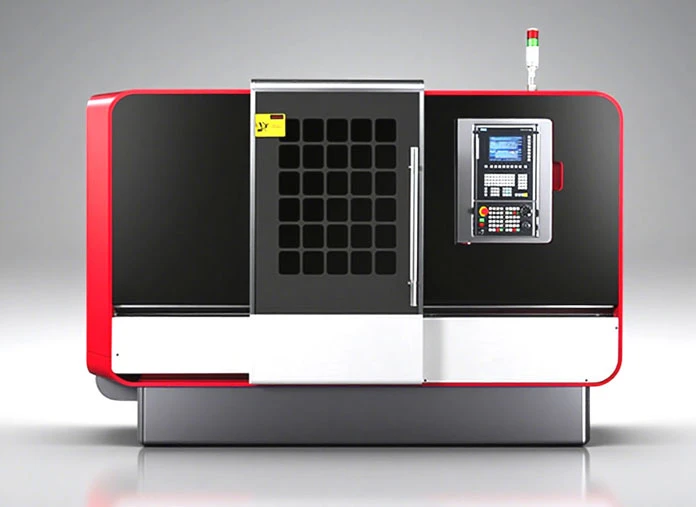

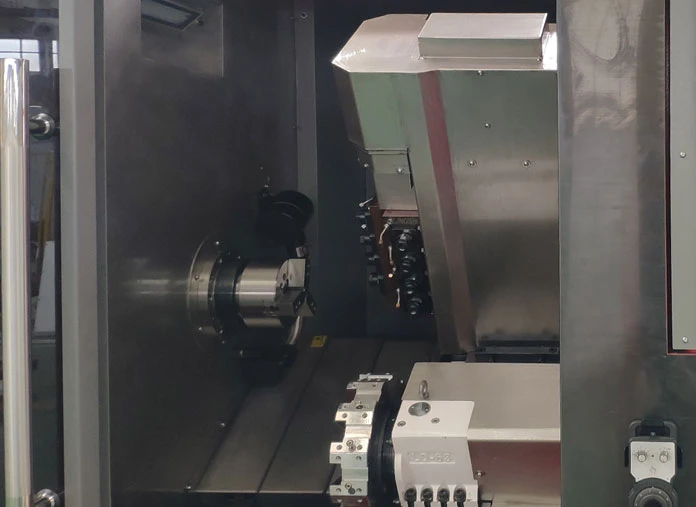

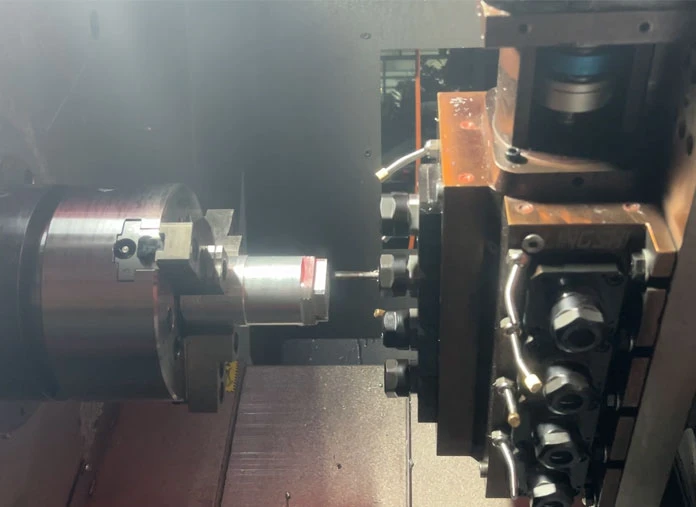

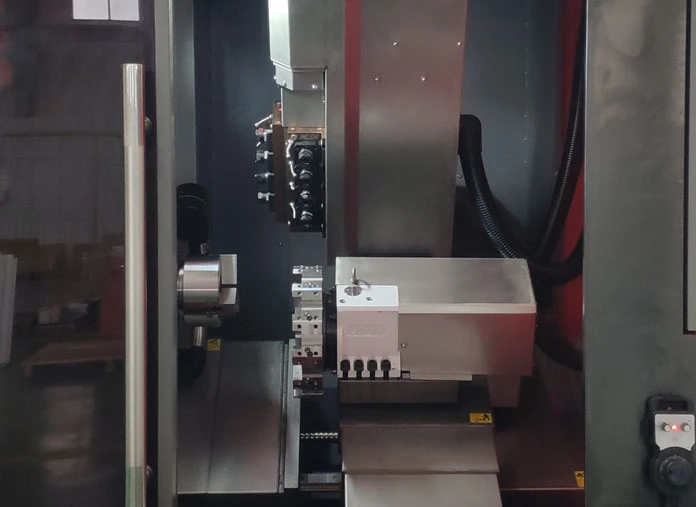

This equipment adopts a 30° inclined bed structure with excellent rigidity, which not only significantly enhances the machine’s vibration resistance and stability but also ensures smooth chip removal and convenient operation experience. It comes standard with a high-performance hydraulic chuck and hydraulic tailstock, guaranteeing secure and reliable workpiece clamping. At its core, the machine is equipped with an advanced hydraulic turret system integrated with 4 axial and 4 radial power heads, truly enabling multiple processes such as turning, milling, drilling, and tapping to be completed in a single setup. This greatly improves the processing efficiency and accuracy of complex parts (e.g., flanges, shaft components, and valve bodies). Compared to traditional power turret configurations, this solution offers equally powerful turning-milling compound machining capabilities at a more competitive price, providing you with a high-cost-effective integrated intelligent manufacturing solution. It is an ideal choice for small-to-medium batch and multi-variety precision machining needs.
| Items | Unit |
|---|---|
| Capacity | |
| Bed slant angle | ° |
| Swing over bed | mm |
| Max. turning diameter (shaft/disc workpiece) | mm |
| Spindle | |
| Spindle nose type | - |
| Spindle bore | mm |
| Allowable bar diameter through spindle bore | mm |
| Max. spindle speed |
r min |

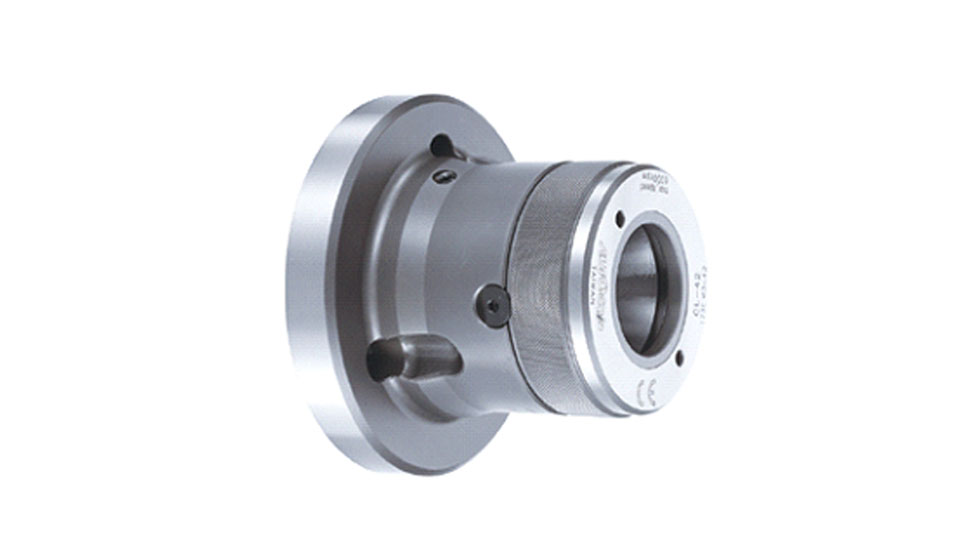

| Collet specification | - |
| Turret | |
| Cross section of tool shank | mm |
| Turret type | - |
| No. of switching positions | - |
| Boring bar diameter | mm |
| Power Head | |
| Power head tool collet Specification | - |
| Max. power head speed |
r min |
| Max. drilling diameter (Copper and aluminum) | mm |
| Max. tapping diameter (Copper and aluminum) | mm |
| Tool diameter | mm |
| Stroke & Feed | |
| X-axis effective stroke | mm |
| Y-axis effective stroke | mm |
| Z-axis effective stroke | mm |
| Rapid traverse speed of X-axis/Z-axis |
m min |
| Rapid traverse speed of Y-axis |
m min |
| Accuracy | |
| Repeat positioning accuracy of X-axis/Z-axis | mm |
| Positioning accuracy of X-axis/Z-axis | mm |
| Others | |
| Spindle motor power | kW |
| Electricity capacity | KVA |

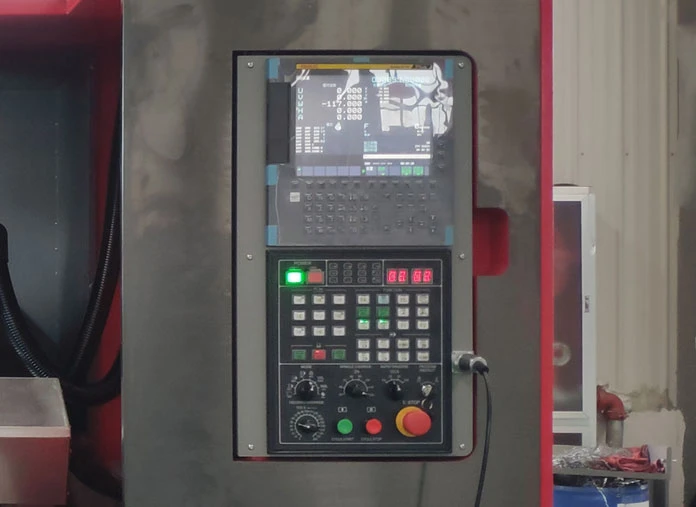

| CNC system | - |
| Length×Width×Height | mm |
| Net weight | kg |
| AE45YD | AE46YD | AE52YD |
|---|---|---|
| 30 | 30 | 30 |
| Φ450 | Φ500 | Φ500 |
|
Φ130 Φ160 |
Φ140 Φ200 |
Φ140 Φ200 |
| A2-5 | A2-5 | A2-6 |
| Φ56 | Φ56 | Φ62 |
| Φ40 | Φ40 | Φ50 |
| 4500 | 4500 | 4000 |
| CL42-A5 | CL42-A5 | CL52-A6 |
| 20×20 | 20×20 | 20×20 |
| Hydraulic turret | Hydraulic Turret | Hydraulic Turret |
| 8 | 8 | 8 |
| Φ25 | Φ25 | Φ25 |
| ER20 (Axial×4+Radial×4) | ER20 (Axial×4+Radial×4) | ER20 (Axial×4+Radial×4) |
| 3000 | 3000 | 3000 |
| Φ12 | Φ12 | Φ12 |
| M12 | M12 | M12 |
| Φ2-Φ13 | Φ2-Φ13 | Φ2-Φ13 |
| 450 | 450 | 450 |
| 220 | 220 | 220 |
| 350 | 350 | 410 |
|
X:24 Z:24 |
X:30 Z:30 |
X:30 Z:30 |
| 15 | 15 | 15 |
| 0.003 (full stroke) | 0.003(full stroke) | 0.003(full stroke) |
| 0.006(full stroke) | 0.005(full stroke) | 0.005(full stroke) |
| 7.5 | 7.5 | 5.5 |
| 13 | 13 | 16 |
| GSK988T | GSK988T | GSK988T |
| 2500×1800×1800 | 2400×1800×2150 | 2400×1800×2150 |
| 3000 | 3000 | 3000 |
The AE-YD series is suitable for precision production parts that require efficient turning, stable structure, and process integration according to part drawing and production requirements.
Yes. Chuck, tooling, CNC system, automation, and fixture options can be configured based on the actual part and production process.
Please provide part drawings, material, production volume, machining process, tolerance, surface finish requirements, and destination port.
