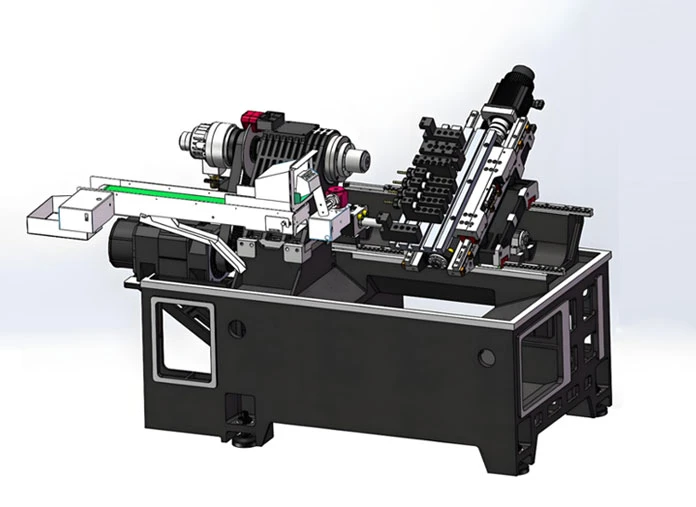

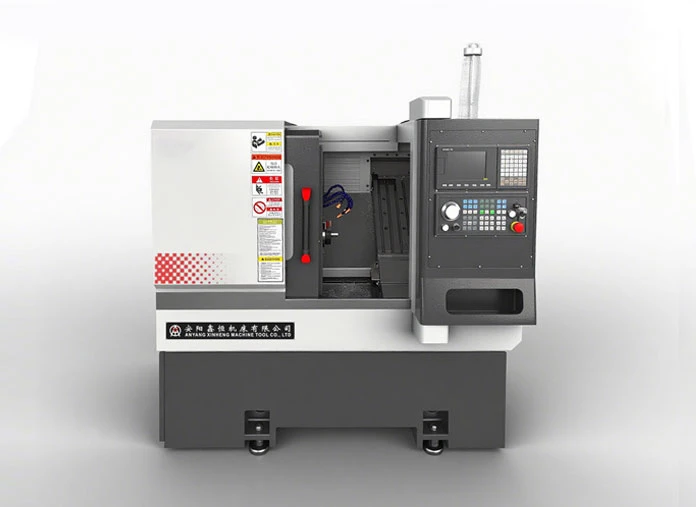

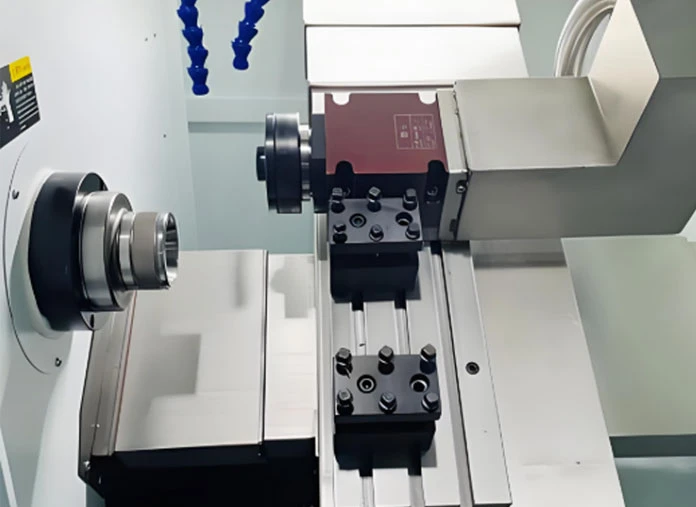

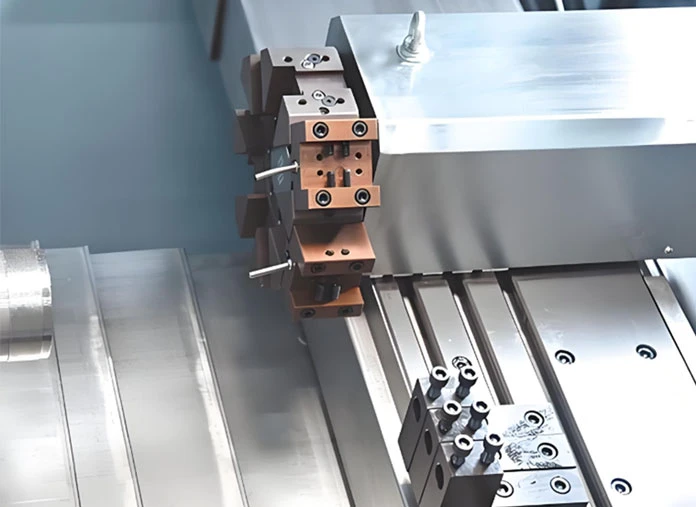

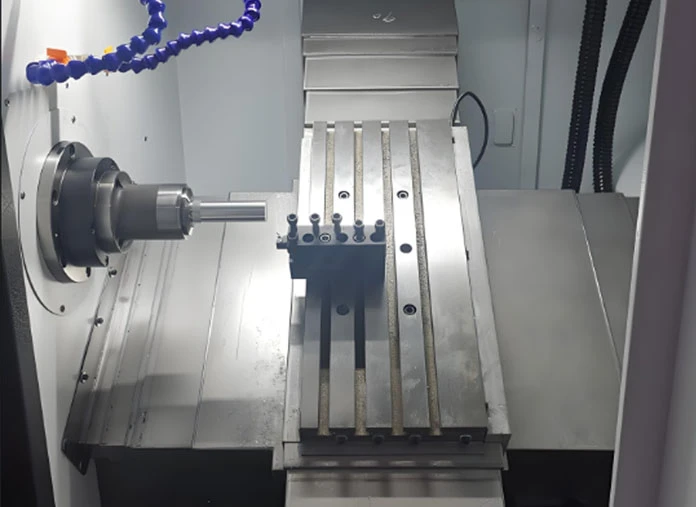

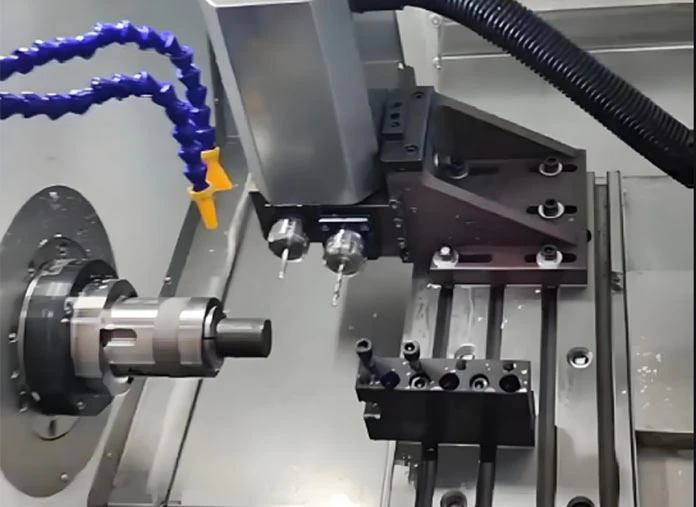

This equipment offers two options for high-rigidity inclined bed structures: 30° and 45°, which not only ensure excellent vibration resistance and stability but also achieve smooth and efficient chip removal, meeting the demands of long-duration continuous machining. It can be optionally equipped with a high-precision linear tool turret or a horizontal turret, featuring fast tool change speed and precise positioning to effectively reduce non-cutting time and improve production efficiency. A milling power head is also available as an option, enabling turn-mill compound machining and expanding capabilities for complex processes. Designed with a compact structure, it is specifically optimized for high-volume production of small parts and can be seamlessly integrated into automated production lines for unattended intelligent manufacturing. It is an ideal solution for high-efficiency, high-precision mass production requirements
| Items | Unit |
|---|---|
| Capacity | |
| Bed slant angle | ° |
| Swing over bed | mm |
| Swing over carriage | mm |
| Max. turning length | mm |
| Carriage length | mm |
| Spindle | |
| Spindle nose type | - |
| Spindle bore | - |
| Allowable bar diameter through spindle bore | mm |
| Max. spindle speed |
r min |
| Spindle motor power | kW |
| Collet specification | - |
| Hydraulic chuck | inch |
| Stroke & Feed | |
| Max. X-axis stroke | mm |
| Max. Y-axis stroke | |
| Max. Z-axis stroke | mm |
| Rapid traverse speed of X-axis/Z-axis |
m min |
| Max. feeding speed of X-axis/Z-axis |
m min |
| Accuracy | |
| Repeat positioning accuracy of X-axis/Z-axis | mm |
| Positioning accuracy of X-axis/Z-axis | mm |
| Toolpost/Turret | |
| Turret type | - |
| No. of switching positions | - |
| Cross section of tool shank | mm |
| Boring bar diameter | mm |
| Turret motor power | kW |
| Max. speed of turret motor | rpm |
| Rated torque of turret motor | N·m |
| Live tool holder type | - |
| Others | |
| CNC system | - |
| Length × Width × Height | mm |
| Weight | kg |
| AP32 | AP36 | AP42 | AP42DP | AP46DP | AP46Y |
|---|---|---|---|---|---|
| 30 | 45 | 45 | 45 | 30 | 30 |
| Φ320 | Φ360 | Φ420 | Φ420 | Φ460 | Φ460 |
| Φ100 | Φ100 | Φ120 | Φ120 | Φ250 | Φ250 |
| 240 | 300 | 450 | 350 | 400 | 300 |
| 550 | 520 | 650 | 330 | 450 | 450 |
| A2-4 | A2-5 | A2-5 | A2-5 | A2-5 | A2-5 |
| Φ45 | Φ56 | Φ56 | Φ56 | Φ56 | Φ56 |
| Φ30 | Φ40 | Φ45 | Φ45 | Φ45 | Φ45 |
| 6000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| 3.7 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| CL30-A4 Collet | CL42-A5 Collet | - | - | - | - |
| - | - | 6 | 6 | 6 | 6 |
| 720 | 760 | 990 | 330 | 190 | 190 |
| - | - | - | - | - | ±50 |
| 240 | 300 | 450 | 350 | 400 | 300 |
|
X:30 Z:30 |
X:30 Z:30 |
X:30 Z:30 |
X:30 Z:30 |
X:30 Z:30 |
X:30 Z:30 |
| 5 | 5 | 5 | 5 | 5 | 5 |
| 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 |
| 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Gang tool post | Gang tool post | Gang tool post | Servo turret | Servo turret | Power tooling turret |
| - | - | - | 8 | 12 | 12 |
| 16×16 | 20×20 | 25×25 | 20×20 | 20×20 | 25×25 |
| Φ20 | Φ25 | Φ32 | Φ25 | Φ25 | Φ32 |
| - | - | - | - | - | 1.7 |
| - | - | - | - | - | 5000 |
| - | - | - | - | - | 8 |
| - | - | - | - | - |
BMT45 ER25 |
| Syntec 7TA | Syntec 7TA | Syntec 21TA | Syntec 21TA | Syntec 21TA | Syntec 22TB |
| 1700×1400×1460 | 1900×1520×1710 | 2250×1550×1720 | 2250×1550×1720 | 2600×1650×1800 | 2600×1650×1900 |
| 1500 | 1900 | 2100 | 2150 | 3400 | 3500 |
The AP series is suitable for precision CNC turning of small and medium parts that require stable machining, efficient chip removal, and compact production layout.
The slant bed design is better for chip flow, machine enclosure, automation integration, and high-efficiency production, while flat bed CNC lathes are often used for larger and longer workpieces.
Yes. Tooling and turret options can be discussed according to the part drawing, machining process, tool quantity, and production efficiency requirement.
