When should I choose a high-rigidity vertical CNC lathe?

Choose a high-rigidity vertical CNC lathe for heavier cutting, larger workpieces, higher load requirements, and applications demanding better machining stability.

What parts are suitable for this machine?

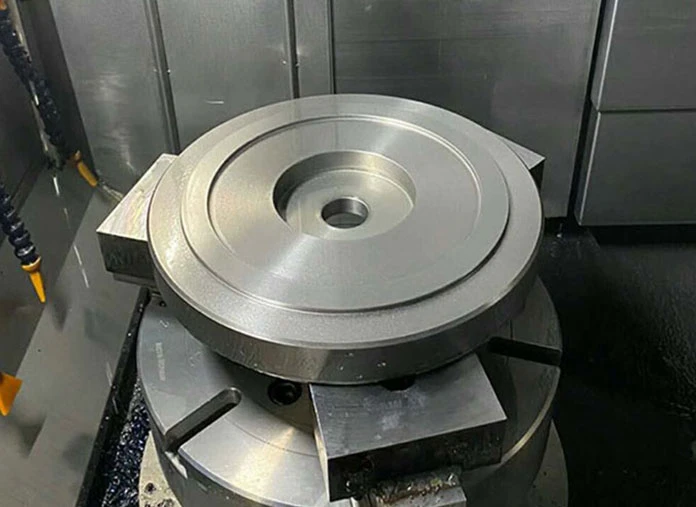

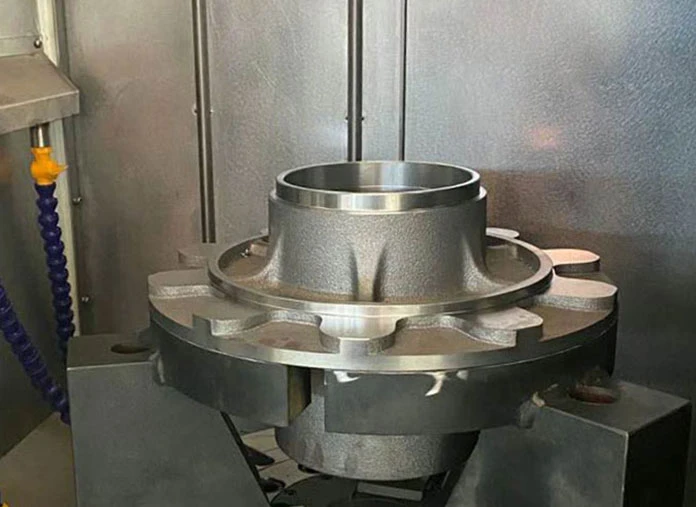

It is suitable for heavy discs, rings, wheels, flanges, covers, and large circular parts that benefit from vertical clamping.

What details are needed for quotation?

Please send the workpiece drawing, diameter, height, weight, material, machining allowance, tolerance, and production quantity.

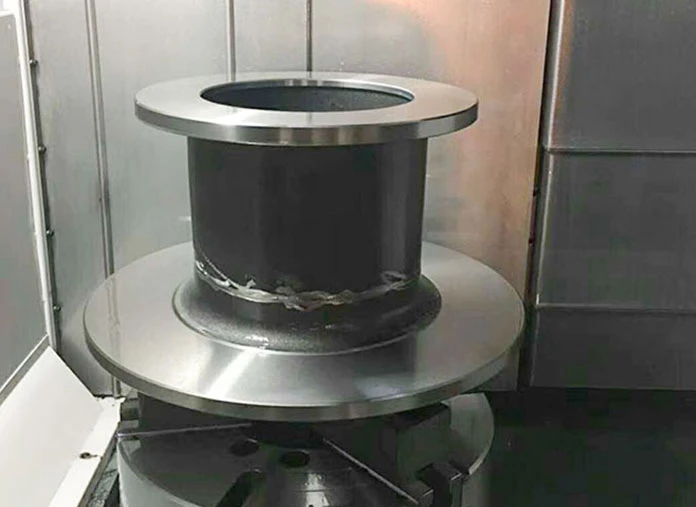

High Rigidity Vertical CNC Lathe for Precision brake disc parts





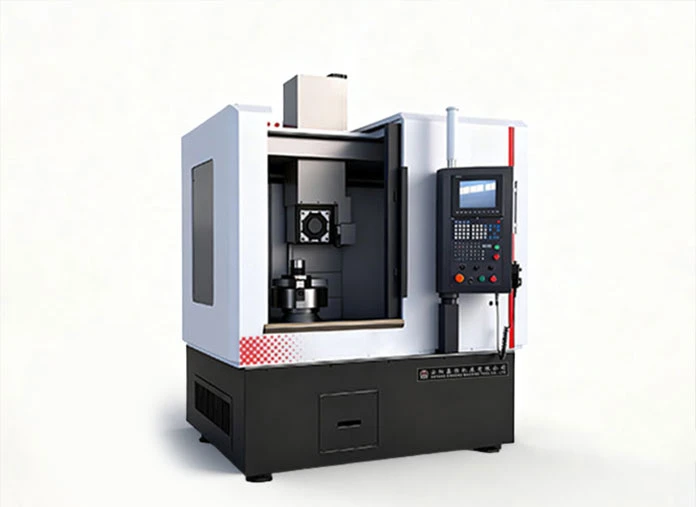

High Rigidity Vertical CNC Lathe

The VLA series vertical CNC lathe is an excellent product designed and produced vertical lathes, integrating our company’s years of experience in producing vertical lathes, and conforming to the market demand. This series of vertical lathe is economical and efficient, and is the first choice for processing complex disk parts in the automotive, military and other machinery industries.

This series of vertical lathe can be used to process various short shaft and disc parts, and it can be used for threading, arcs turning, inner and outer curved surfaces turning, grooving, end facing, etc. It is suitable for parts processing with large batches, with high processing accuracy and high dimensional consistency requirements. This series of vertical lathe is widely used in the automobile industry. It is a high-quality, high-precision, low-cost and high-efficiency vertical lathe.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacities
Max. swing diameter	mm
Max. turning diameter	mm
Spindle
Spindle nose	-
Spindle bore	mm
Spindle speed	r min
Inner diameter of spindle front bearing	mm
Chuck diameter	mm inch
Spindle end radial runout	mm
Turret
Cross section of tool shank	mm
Boring bar diameter	mm
Turret type	-
Tool disc swing	mm
Stroke
Stroke of X-axis	mm
Stroke of Z-axis	mm
Servo motor
Spindle servo motor power	kW
Main motor max. torque	N.m
Spindle max. torque	N·m
Servo motor power of X-axis	kW
Servo motor torque of X-axis	N·m
Servo motor power of Z-axis	kW
Servo motor torque of Z-axis	N·m
Rapid traverse
Rapid traverse speed of X-axis	m min
Rapid traverse speed of Z-axis	m min
Accuracy
Repeat positioning accuracy of X-axis/Z-axis	mm
Positioning accuracy of X-axis/Z-axis	mm
Hydraulic station
Hydraulic station volume	L
Motor power	kW
Flow rate	L min
Others

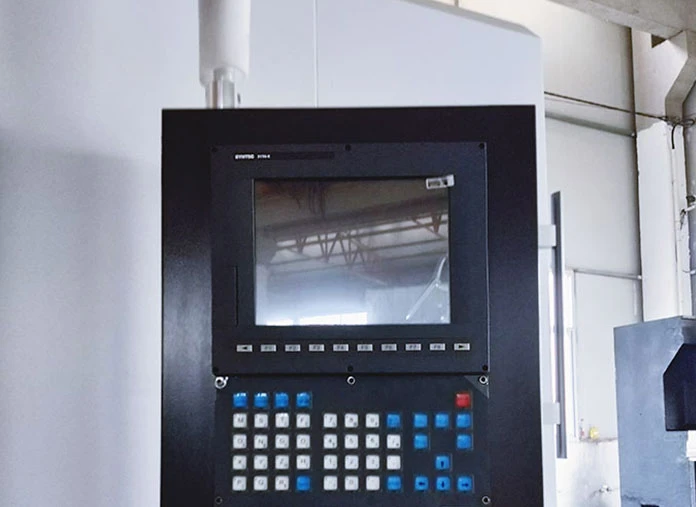

CNC system	-
Length×Width×Height	mm
Net weight	kg

VLA450	VLA550	VLA650	VLA850

600	760	840	950
450	550	650	850

A2-8	A2-8	A2-11	A2-11
72	86	86	100
2500	2000	1500	1200
120	130	160	180
304 12	381 15	450 18	610 24
0.003	0.003	0.003	0.004

25×25	25×25	25×25	32×32
40	50	50	50
H8	H8	H8	H8
400	450	480	520

270	350	380	880
600	700	850	950

15	18.5	18.5	18.5
180	240	240	275
450	600	720	825
2.5	3	3	3
Stall torque 20 Max. torque 45	Stall torque 27 Max. torque 68	Stall torque 27 Max. torque 68	Stall torque 30 Max. torque 83
3	3	3	3
Stall torque 27 Max. torque 68	Stall torque 36 Max. torque 90	Stall torque 36 Max. torque 90	Stall torque 38 Max. torque 130

16	15	15	12
16	15	15	12

0.004	0.004	0.004	0.004
0.008	0.008	0.008	0.008

80	80	80	80
2.2	3	3.75	3.75
30	30	40	40

FANUC 0i-TF (5)	FANUC 0i-TF (5)	FANUC 0i-TF (5)	FANUC 0i-TF (5)
1680×3320×2700	1850×3500×2700	1900×3620×2900	2500×3760×3300
6000	8000	8600	11000

Accessories

Standard :

Hydraulic chuck
Hydraulic turret
Cabinet shield
Chip conveyor
LED work light
Coolant pump
Schneider electrical component
Leveling wedge
Anchor bolt
Wrench

Foot switch
Chip conveyor & trolley
H8 hydraulic turret

Optional :

Power Turret
Double cutting tools
Power tool holder
Static tool holder
Tailstock
Hydraulic chuck and rotary cylinder
Auto door
Workpiece probe
Hydraulic spindle brake
High pressure pump

Oil mist collector
Oil skimmer
Robot
Tool setter
Dual speed gearbox for the spindle motor
Counter display for each insert
Chuck position sensor
High pressure coolant through turret

Video

Vertical CNC Lathe/Brake Disc Vertical Lathe

Vertical CNC Lathe

Characteristic





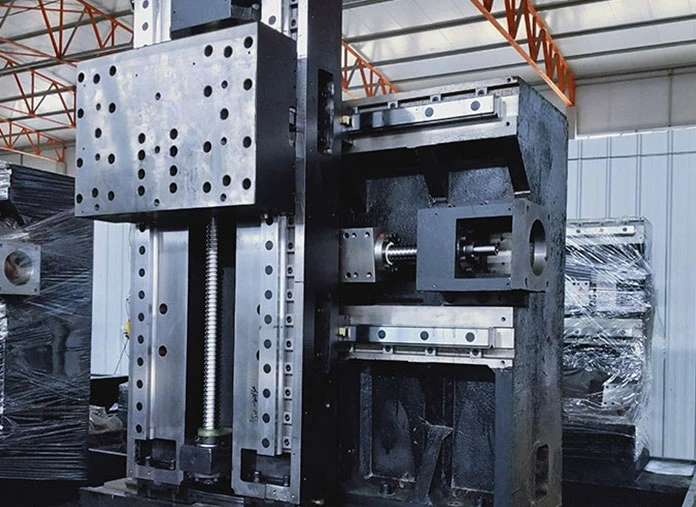

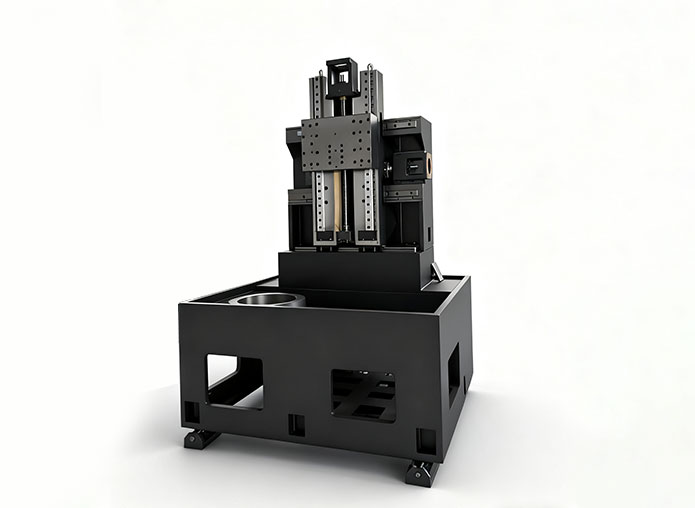

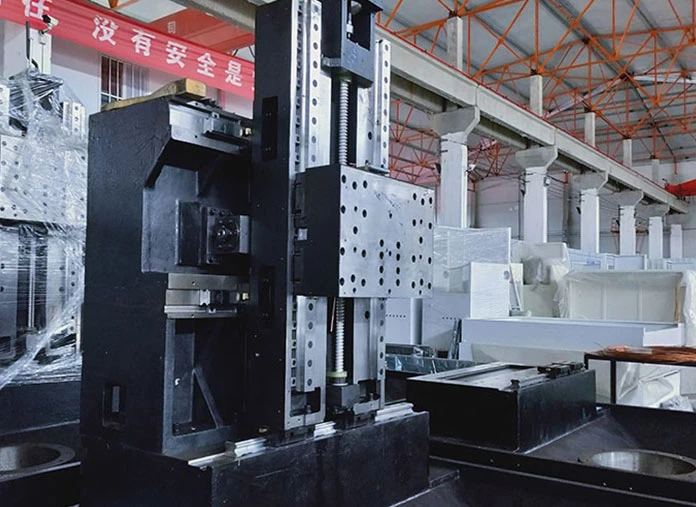

Base

The rib shape of the base is optimized by Ansys software, which makes the base to have high rigidity.1hebase is cast by a high strength cast iron (HT250). The rough castings adopt a resin sand molding castingpiece with the sand core that improves the anti-vibration performance of the base. The base has a reasonableinteral structure and higher rigidity so that can ensure the stability of the machine during the machiningprocess of the workpiece with a large diameter.

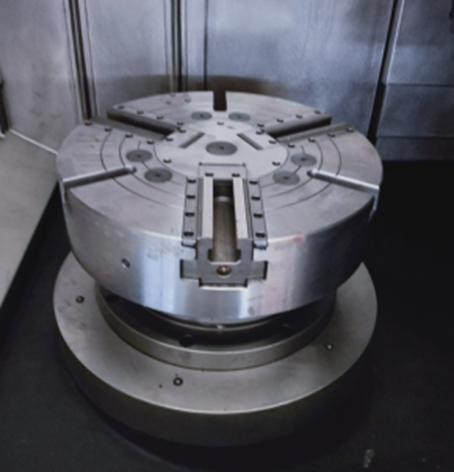

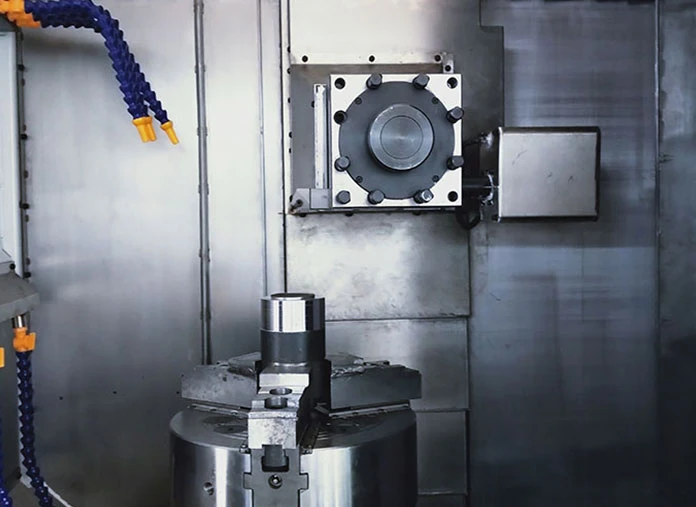

Hydraulic chuck

This lathe adopts hydraulic non through-hole chuck. The chuck is a waterproof chuck. There is a sealing strip at the sliding joint of the jaw sliding seat and the chuck body, which can effectively prevent the coolant from leaking to the spindle through the chuck and prevent chips from entering the sliding surface to damage the sliding seat. There are 3 T-slots on the end of the chuck, which can be used to easily install various jigs and fixtures. It has good adaptability and it can meet the requirements of users for processing various parts.

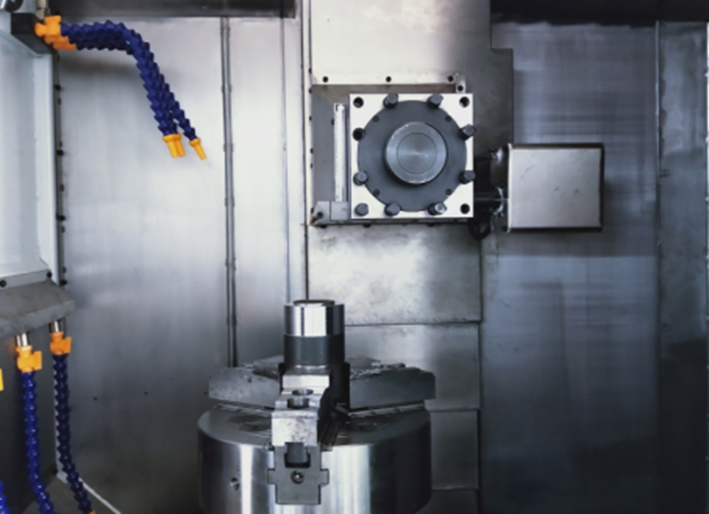

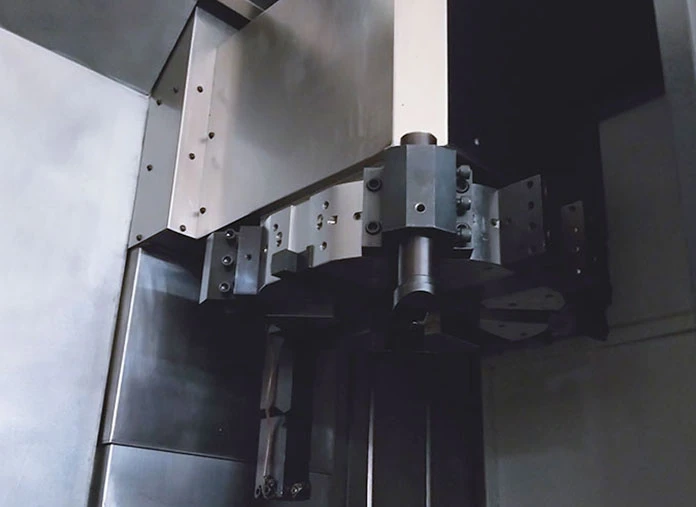

Electrical turret

This lathe is equipped with electric turret without lifting, it’s quick and convenient to change cutting tool.
The standard configuration is 4-position vertical turret.
There are other vertical 4-position turrets, vertical 6-position turrets, horizontal 6-position turrets, horizontal 8-position turrets, horizontal 12-position turrets and other turrets for optional.
