What is an economical vertical CNC lathe suitable for?

It is suitable for general vertical turning of disc-type and ring-type workpieces where vertical clamping is convenient and a cost-effective CNC solution is required.

What workpiece information is needed?

Please provide workpiece diameter, height, weight, material, machining allowance, and production quantity.

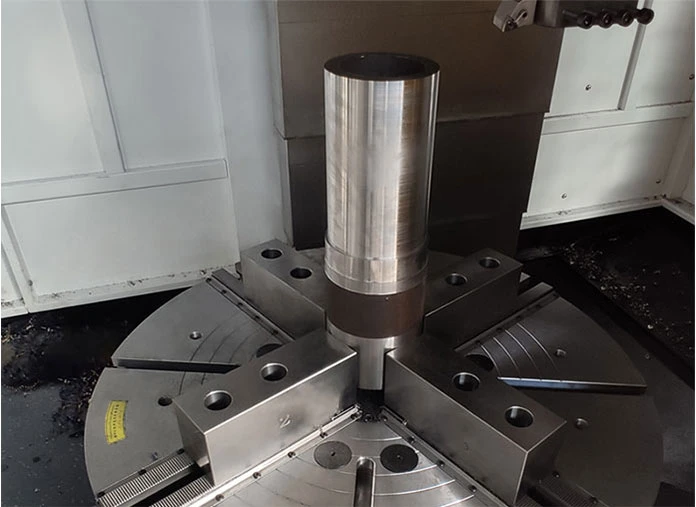

Can the machine be configured with different chuck options?

Yes. Chuck and fixture options can be selected according to the workpiece shape, clamping method, and machining process.

Uncompromised Value: The Smart Choice in Vertical CNC Turning





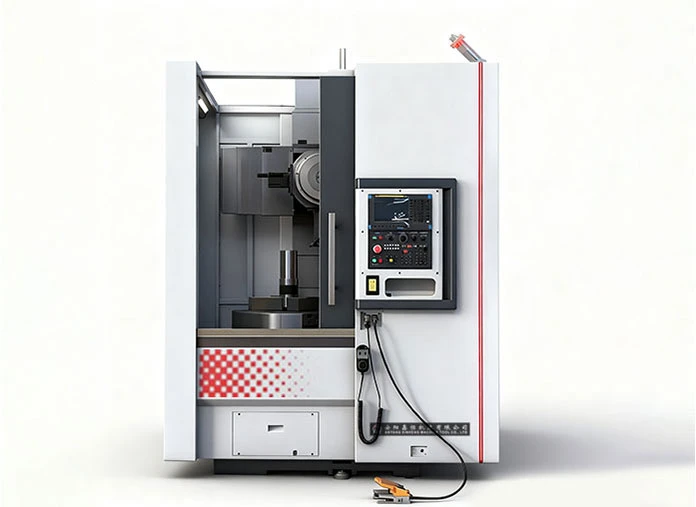

Economical Vertical CNC Lathe

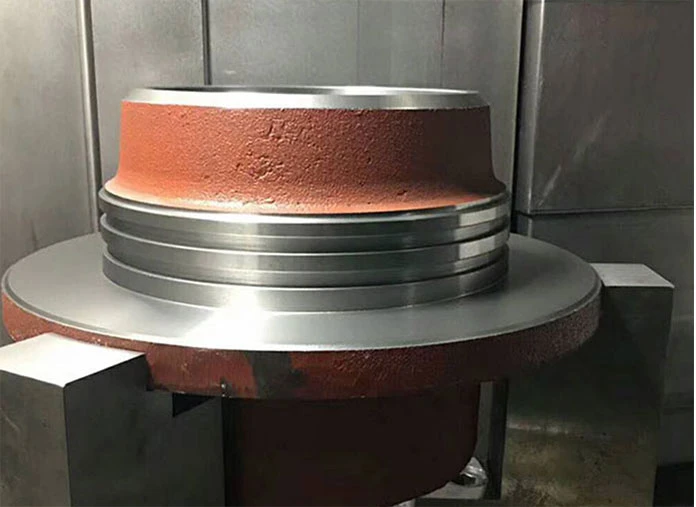

The VTL series vertical CNC lathe is an excellent product designed and produced vertical lathes, integrating our company’s years of experience in producing vertical lathes, and conforming to the market demand. This series of vertical lathe is economical and efficient, and is the first choice for processing complex disk parts in the automotive, military and other machinery industries.

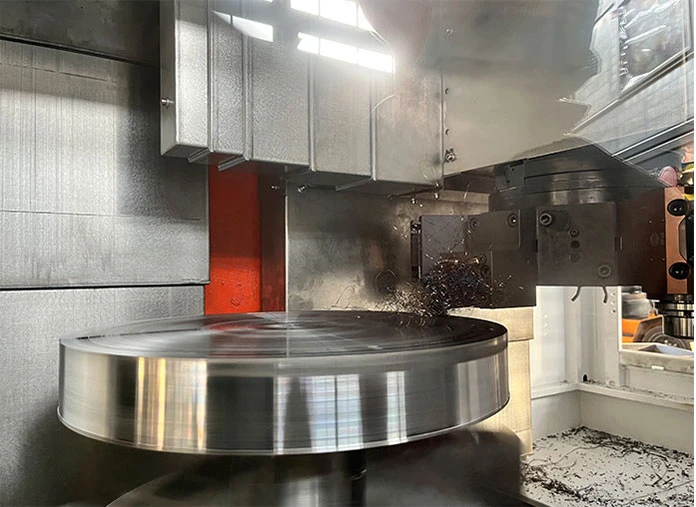

This series of vertical lathe can be used to process various short shaft and disc parts, and it can be used for threading, arcs turning, inner and outer curved surfaces turning, grooving, end facing, etc. It is suitable for parts processing with large batches, with high processing accuracy and high dimensional consistency requirements. This series of vertical lathe is widely used in the automobile industry. It is a high-quality, high-precision, low-cost and high-efficiency vertical lathe.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capability
Max. swing diameter	mm
Max. turning diameter	mm
Max. height of workpiece	mm
Max. weight of workpiece	kg
Spindle
Spindle nose type	-
Spindle bore	mm
Max. spindle speed	rpm
Spindle motor power	kW
Spindle torque (S1)	N·m
Chuck type	-
Chuck diameter	inch
Feed
Z-axis effective stroke	mm
X-axis effective stroke	mm
Max. feeding speed of X-axis/Z-axis	m min
Rapid traverse speed of X-axis/Z-axis	m min
Turret
Turret type	-
No. of switching positions	-
Cross section of tool shank	mm
Boring bar diameter	mm
Accuracy
Repeat positioning accuracy of X-axis/Z-axis	mm
Positioning accuracy of X-axis/Z-axis	mm
Other
Overall dimension (L×W×H)	mm×mm×mm
Weight	kg

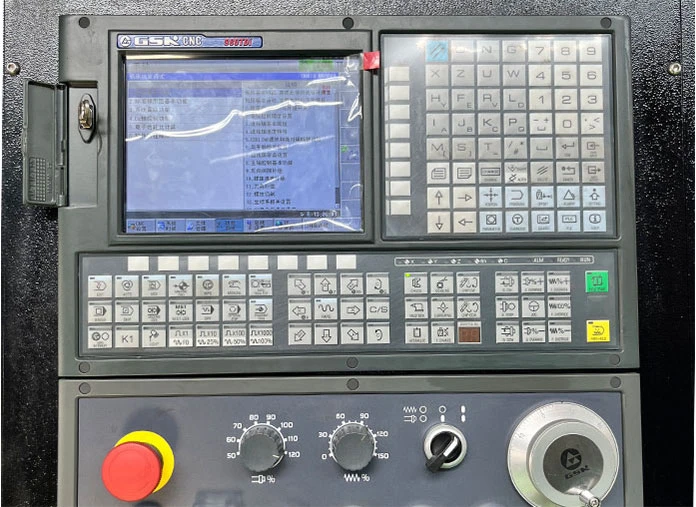

CNC system	-

VTL500	VTL600	VTL700	VTL800	VTL900	VTL1000

700	800	900	1000	1100	1250
500	600	700	800	900	1000
550	600	700	750	800	850
500	800	800	1200	1200	1500

A2-8	A2-11	A2-11	A2-15	A2-15	A2-15
86	100	100	100	100	100
2000	1200	1200	800	800	500
22	26	30	30	37	37
343	446	516	859	1059	1289
Hydraulic 3-jaw chuck	Hydraulic 3-jaw chuck	Hydraulic 3-jaw chuck	Hydraulic 3-jaw chuck	Hydraulic 3-jaw chuck	Hydraulic 3-jaw chuck
12	15	18	21	24	32

550	600	700	750	800	850
285	325	370	420	470	535
4	4	4	4	4	4
20 20	20 20	20 20	15 15	15 15	15 15

Hydraulic turret	Hydraulic turret	Hydraulic turret	Hydraulic turret	Hydraulic turret	Servo turret
8	8	8	8	8	6
25×25	25×25	25×25	25×25	32×32	40×40
32	40	40	40	50	80

0.007	0.007	0.007	0.007	0.007	0.007
0.01	0.01	0.01	0.01	0.01	0.01

1900×3200×2590	2000×3300×2700	2230×3400×2810	2380×3650×3000	2630×3750×3150	2770×3990×3500
4700	6200	7800	9400	11500	13500
Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)	Fanuc 0i-TF Plus (3B)

Accessories

Standard :

Hydraulic chuck
Hydraulic turret
Cabinet shield
Chip conveyor
LED work light
Coolant pump
Schneider electrical component
Leveling wedge
Anchor bolt
Wrench
Foot switch
Chip conveyor & trolley

Optional :

Power Turret
Double cutting tools
Power tool holder
Static tool holder
Tailstock
Hydraulic chuck and rotary cylinder
Auto door
Workpiece probe
Hydraulic spindle brake
High pressure pump

Oil mist collector
Oil skimmer
Robot
Tool setter
Dual speed gearbox for the spindle motor
Workpiece counter
Spindle indexing encoder
High pressure coolant through turret

Video

VTL500 Vertical CNC Lathe: Complex Discs for Auto & Military!

VTL 900 vertical CNC lathe

Characteristic





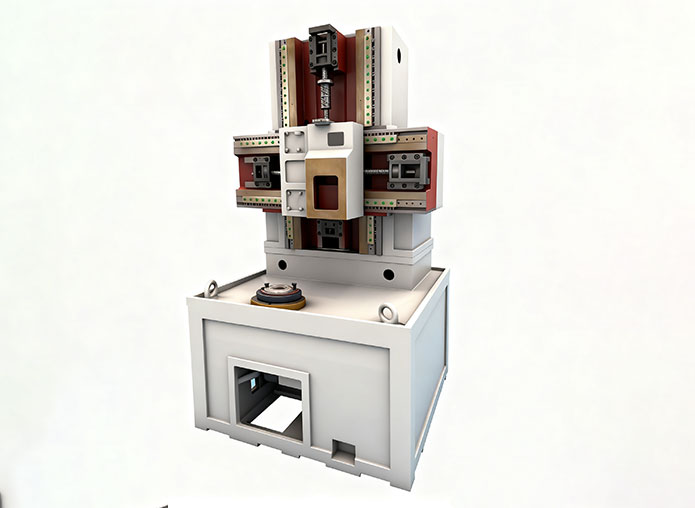

Base

The rib shape of the base is optimized by Ansys software, which makes the base to have high rigidity. Thebase is cast by a high strength cast iron (HT250). The rough castings adopt resin sand molding casting piecewith the sand core that improves the anti-vibration performance of the base. The base has a reasonableinteral structure and higher rigidity so that can ensure the stability of the machine during the machiningprocess of the workpiece with a large diameter.

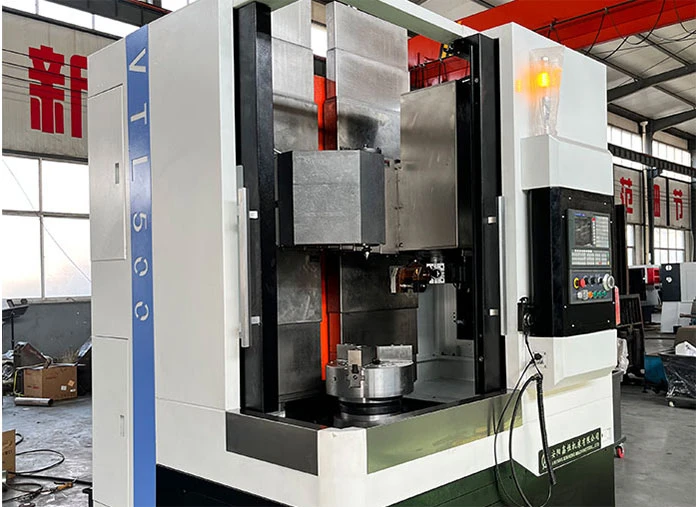

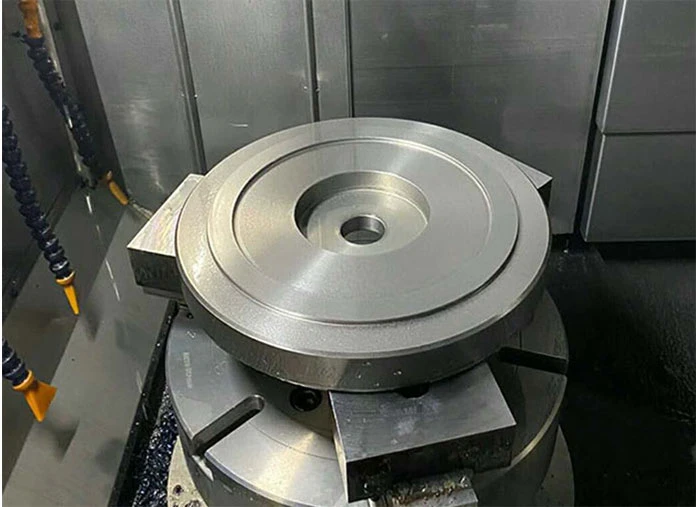

Hydraulic chuck

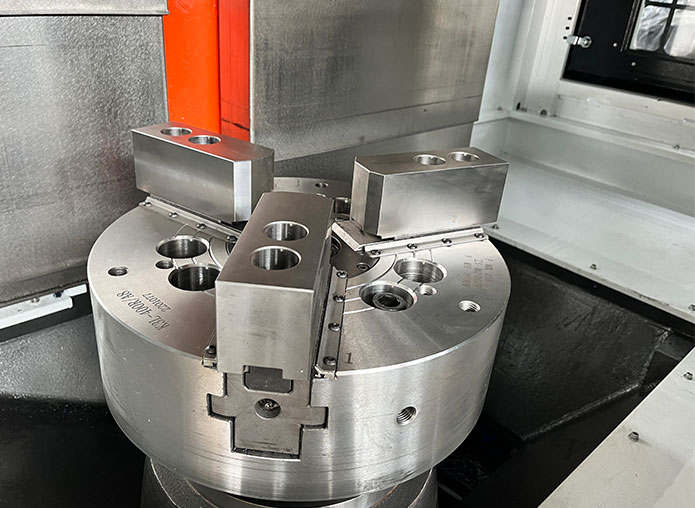

This lathe adopts hydraulic non through-hole chuck. The chuck is a waterproof chuck. There is a sealing strip at the sliding joint of the jaw sliding seat and the chuck body, which can effectively prevent the coolant from leaking to the spindle through the chuck and prevent chips from entering the sliding surface to damage the sliding seat. There are 3 T-slots on the end of the chuck, which can be used to easily install various jigs and fixtures. It has good adaptability and it can meet the requirements of users for processing various parts.

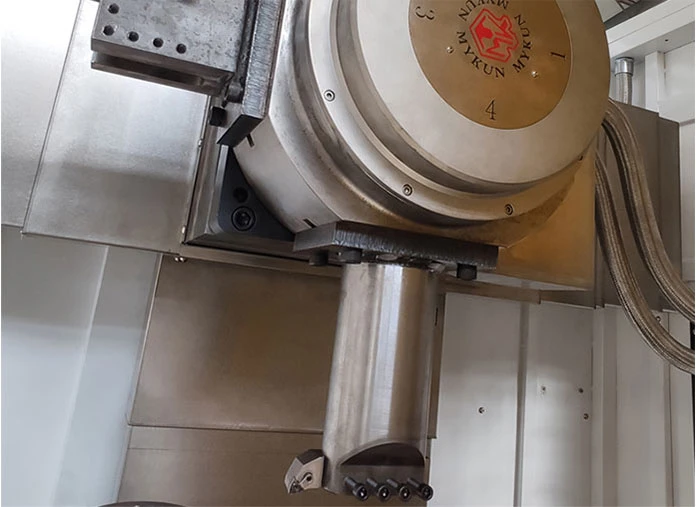

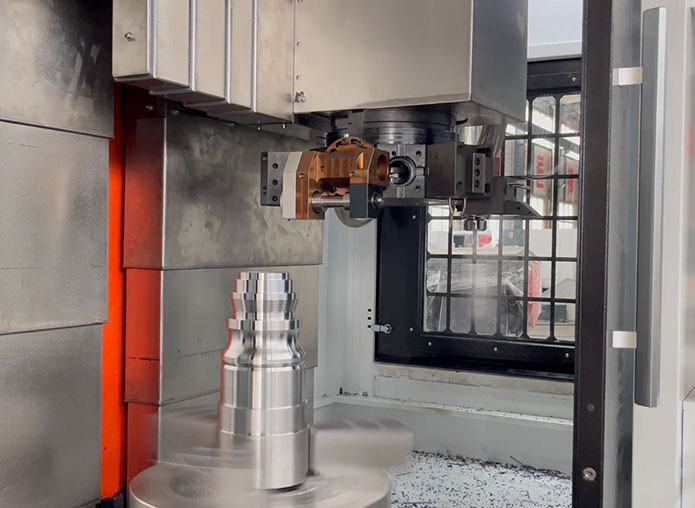

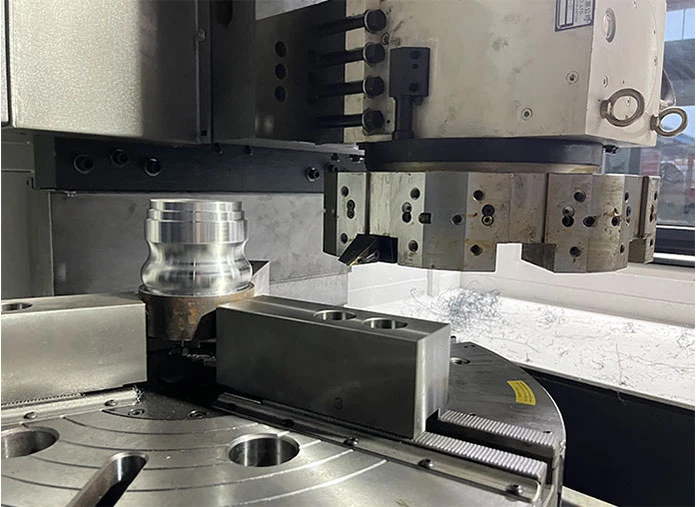

Turret

This lathe is equipped with hydraulic 8 position turrets, the power /servo 8/12-position turrets and other turrets
for optional.
