What are the advantages of the 550/600 mm guideway conventional lathe?

It provides stronger rigidity and better stability for medium and heavy manual turning compared with smaller guideway conventional lathes.

Which workpieces are suitable for this machine?

It is suitable for shafts, rollers, sleeves, discs, and repair parts that require manual turning with higher rigidity and longer center distance options.

Can this series process long shafts?

Yes. Center distance can be selected according to workpiece length, and steady rests can be used for supporting long shafts.

What configuration should I confirm?

Please confirm swing, center distance, spindle bore, chuck size, tailstock, steady rest, follow rest, and required accessories.

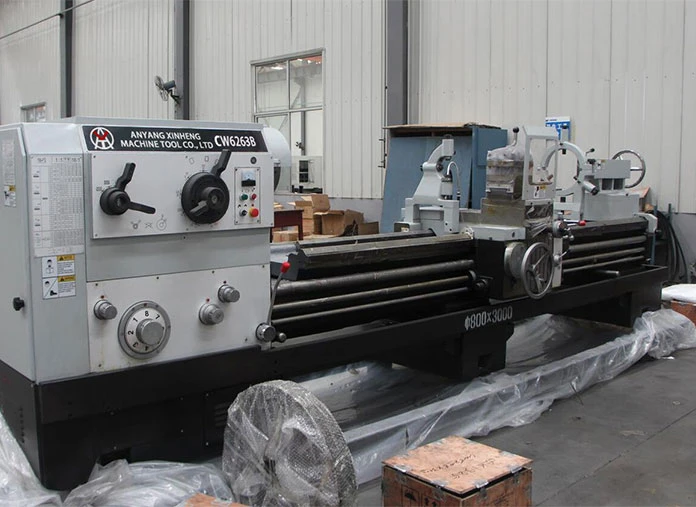

Conventional lathe(550/600mm guideway)Conventional lathe





Conventional lathe

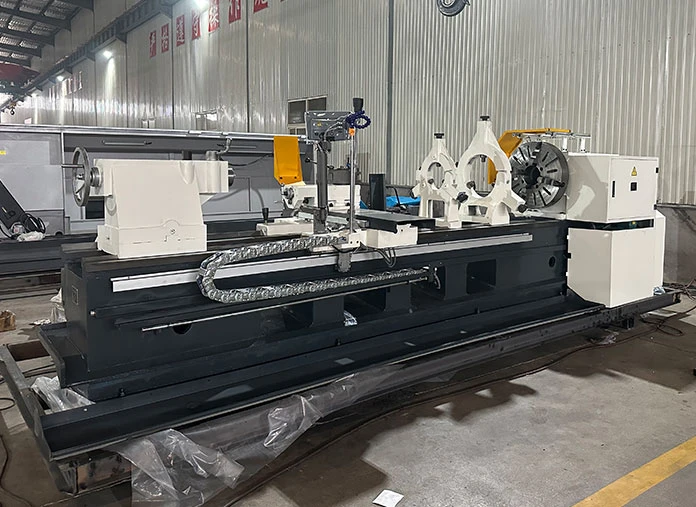

Our CW series lathe is engineered for the most demanding machining applications, featuring an impressive 8mm single-pass cutting capability that delivers exceptional metal removal rates. This machine excels in processing large-scale components across heavy industries, including wind turbine shafts, marine propulsion systems, and massive hydraulic cylinders. With its ability to handle workpieces up to 12 meters in length and 4000kg in weight, the lathe maintains remarkable stability during aggressive machining operations thanks to its 550-600mm wide hardened guideways and reinforced bed construction. The optional gap bed further extends its versatility for oversized flange and disk machining. Designed for precision performance in energy, marine, and heavy equipment manufacturing sectors, this robust lathe significantly reduces processing time while maintaining superior surface quality and dimensional accuracy, making it an ideal solution for high-volume, large-component production environments.

Note: swing over bed/swing over gap/distance between centers (750 mm – 12000 mm) can be customized.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Swing over bed	mm
Swing over carriage	mm
Swing over gap	-
Max. length of workpiece	mm
Max. turning length	mm
Span of guideway	mm
Max. weight of workpiece	ton
Spindle
Spindle nose type	-
Center taper	-
Spindle bore	mm
No. of spindle speeds	-
Range of spindle speeds	r min
Toolpost
Cross section of tool shank	mm
Max.stroke of upper toolpost	mm
Max. stroke of lower toolpost	mm
Feed
No. of longitudinal and transverse feeding	-
Ratio of transverse feed to longitudinal feed	-
No. and rang of metric threads	-
No. and rang of inch threads	-
No. and rang of modulus threads	-
No. and rang of diameter pitch threads	-
Tailstock
Tailstock quill diameter	mm
Tailstock quill taper	-
Tailstock quill effective stroke	mm
Power system
Main motor power	kW
Rapid traverse motor power	kW
Others
Width×Height	mm
Length	mm
Net weight	kg

CW6163B	CW6263B	CW6180B	CW6280B	CW6194B	CW6294B	CW6180	CW61100

630	630	800	800	940	940	800	1000
350	350	520	520	660	660	480	680
-	830	-	1000	-	1140	-	-
1500 2000 3000	1500 2000 3000	1500 2000 3000	1500 2000 3000	1500 2000 3000	1500 2000 3000	1500 2000 3000	1500 2000 3000
1350 1850 2850	1350 1850 2850	1350 1850 2850	1350 1850 2850	1350 1850 2850	1350 1850 2850	1350 1850 2850	1350 1850 2850
550	550	550	550	550	550	600	600
1.5 3	1.5 3	1.5 3	1.5 3	1.5 3	1.5 3	2 4	2 4

C11	C11	C11	C11	C11	C11	C11 C15	C11 C15
MT5	MT5	MT5	MT5	MT5	MT5	MT6	MT6
100	100	100	100	100	100	100 140	100 140
18	18	18	18	18	18	18 6	18 6
7.5-1000	7.5-1000	6-800	6-800	6-800	6-800	Forward: 6-750; Reverse:10-775	Forward: 6-750; Reverse:10-775

30×30	30×30	30×30	30×30	30×30	30×30	32×32	32×32
200	200	200	200	200	200	200	200
440	440	540	540	570	570	500	500

64 kinds each	64 kinds each	64 kinds each	64 kinds each	64 kinds each	64 kinds each	64 kinds each	64 kinds each
1 2	1 2	1 2	1 2	1 2	1 2	1 2	1 2
50; 1-240	50; 1-240	50; 1-240	50; 1-240	50; 1-240	50; 1-240	50; 1-240	50; 1-240
26; 14-1	26; 14-1	26; 14-1	26; 14-1	26; 14-1	26; 14-1	26; 14-1	26; 14-1
53; 0.5-44	53; 0.5-44	53; 0.5-44	53; 0.5-44	53; 0.5-44	53; 0.5-44	53; 0.5-120	53; 0.5-120
24; 28-1	24; 28-1	24; 28-1	24; 28-1	24; 28-1	24; 28-1	24; 28-1	24; 28-1

100	100	100	100	100	100	100	100
MT5	MT5	MT5	MT5	MT5	MT5	MT6	MT6
250	250	250	250	250	250	250	250

11	11	11	11	11	11	11	11
1.1	1.1	1.1	1.1	1.1	1.1	1.1	1.1

1393×1537	1393×1537	1473×1622	1473×1622	1430×1690	1430×1690	1450×1730	1450×1830
3725 4225 5225	3725 4225 5225	3725 4225 5225	3725 4225 5225	3725 4225 5225	3725 4225 5225	3670 3985 5165	3670 3985 5165
3700 4200 4700	3700 4200 4700	3900 4400 4900	3900 4400 4900	4400 4900 5400	4400 4900 5400	4900 5100 5500	5400 5600 6000

Accessories

Standard :

3-jaw self-centering chuck
Standard V4 toolpost
Standard tailstock
LED work light
Coolant system
Leveling wedge
Anchor bolt
Wrench
Dead center

Optional :

Gap bed
Φ140 Spindle bore
Foot pedal
4-jaw chuck
Faceplate
Quick change toolpost
Grinding attachment
Follow rest

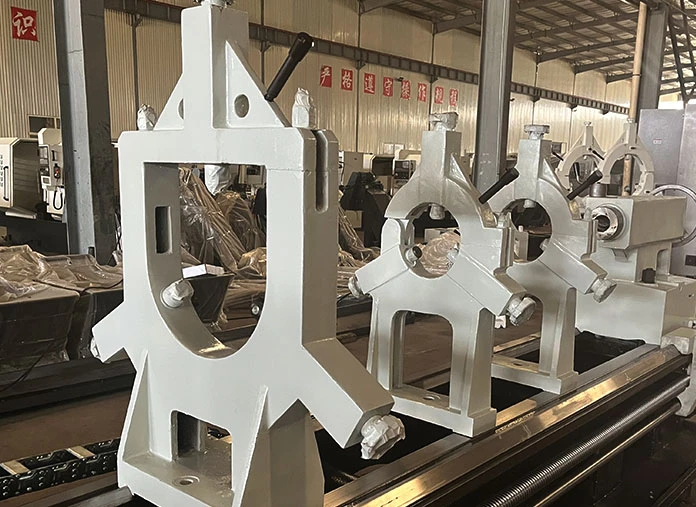

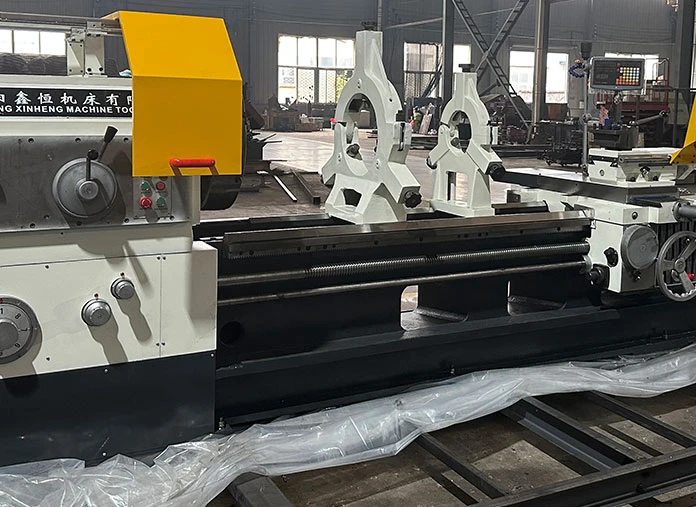

Steady rest

Thread lead indicator

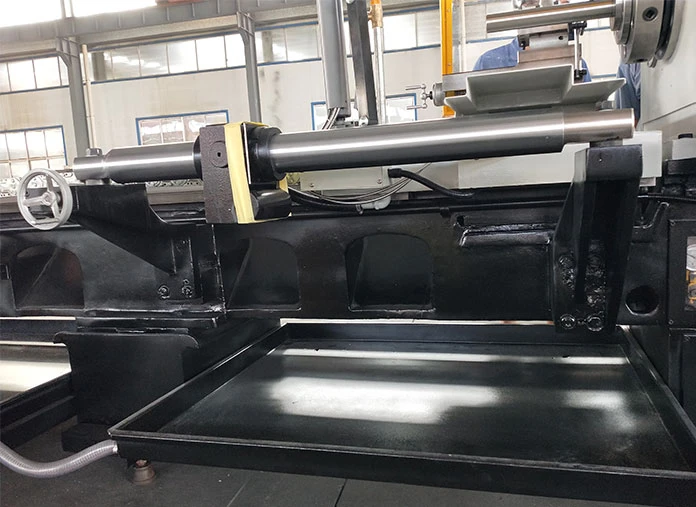

Taper attachment

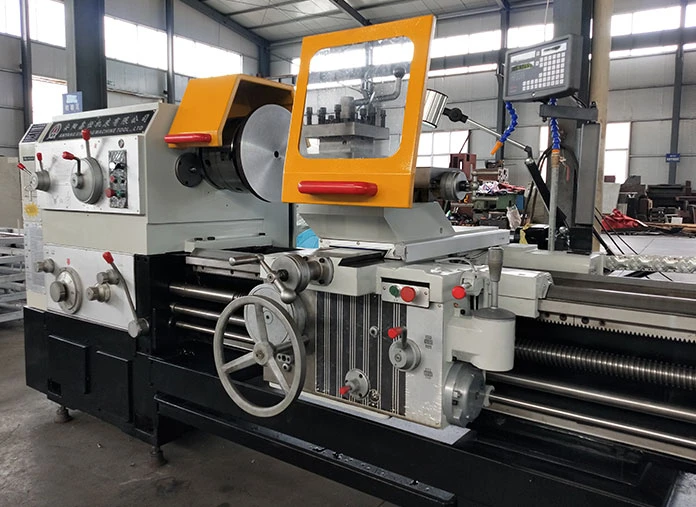

Toolpost protection

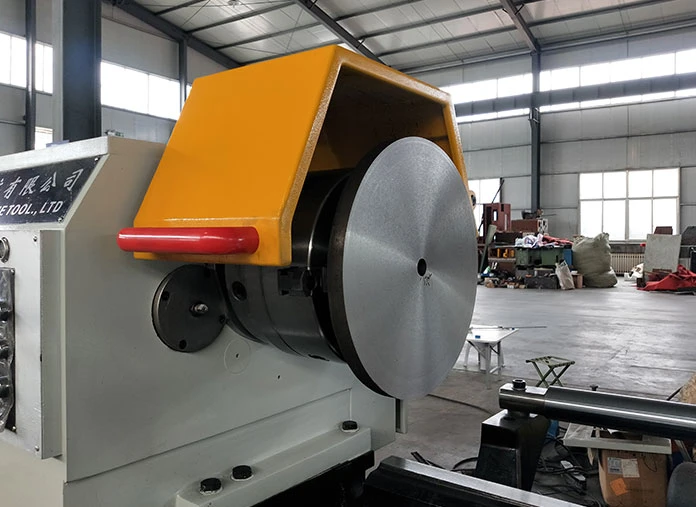

Chuck protection
Side protection
Automatic feed along the X axis
Spindle bore adapter
Live center
DRO

Video

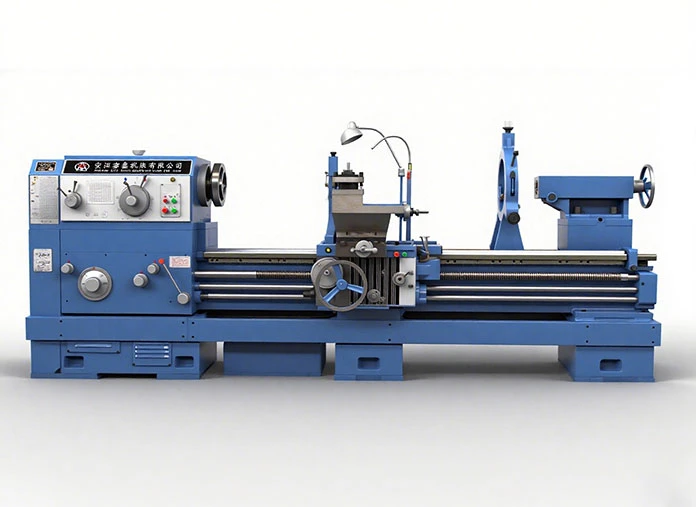

CW6194B Conventional lathe

CW61100B Conventional lathe

Characteristic





Toolpost

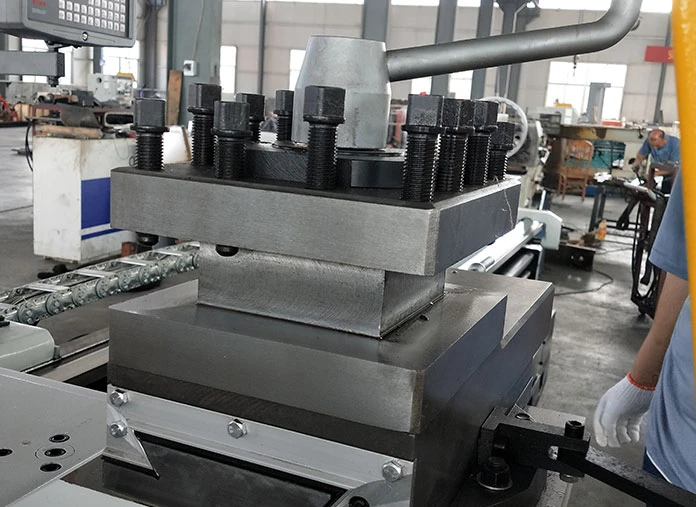

Standard configuration is 4-position vertical toolpost. There are Europe style quick change toolpost, pistontype quick change toolpost, Italy style quick change toolpost and other toolpost for optional.

Chuck

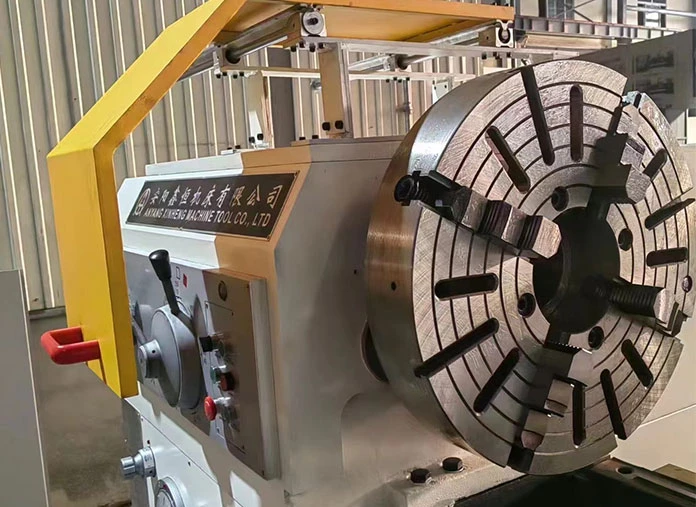

The lathe adopts Ф350 mm 3-jaw chuck. Other manual 4-jaw and 3-jaw chuck are for option.

Tailstock

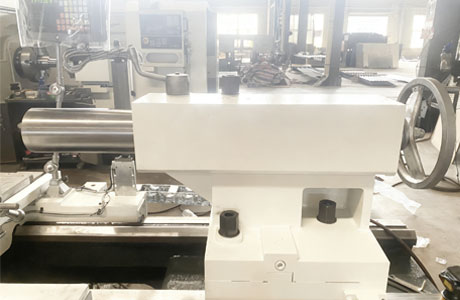

The center line of tailstock spindle is horizontally zeroed to the center line of the headstock spindle. The center line of tailstock spindle has been well adjusted before lathe leaves the factory. There is a zero line mark at the convex plane between the right lower tailstock body and the base. The horizontally adjustable displacement of the tailstock body is ±15mm.
