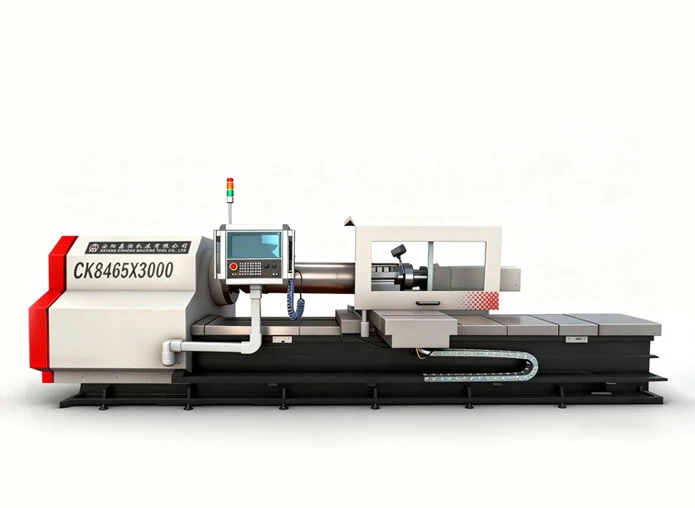

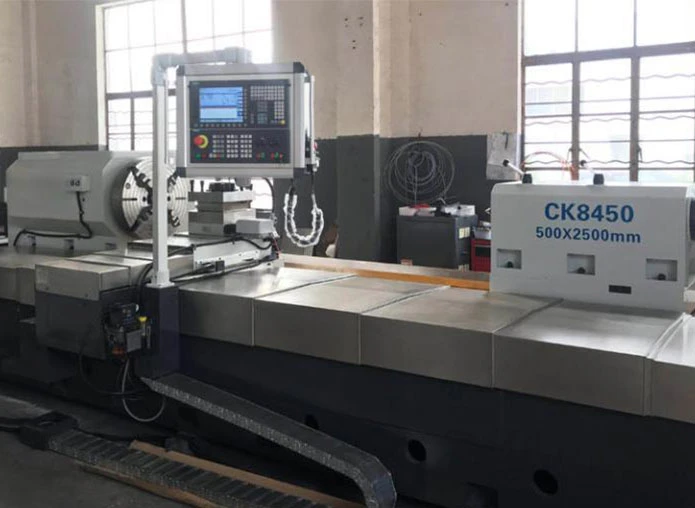

CNC roll turning lathe

Developed through comprehensive analysis of global roll turning lathe standards, this machine integrates high-speed precision spindle systems, optimized CNC servo feed drives, thermal deformation control mechanisms, and real-time compensation technologies to ensure superior machining accuracy and operational reliability.
Advanced Optional Configurations: C-axis functionality for precise angular positioning and complex contour machining; BMT75 milling power head enables true turning-milling compound processing, allowing for complete machining in a single setup

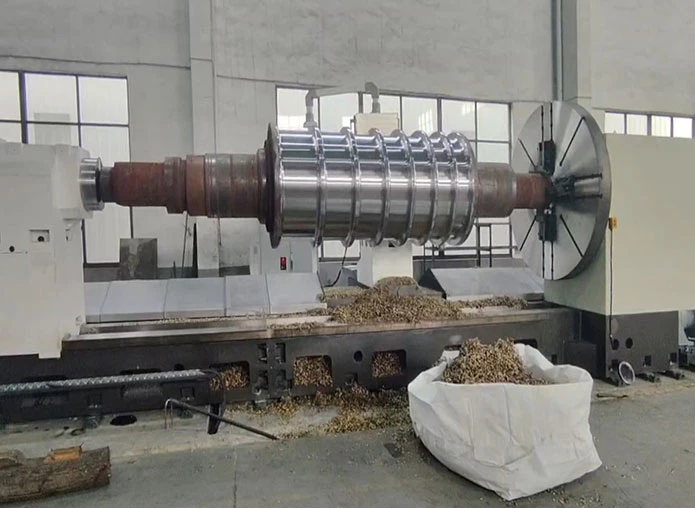

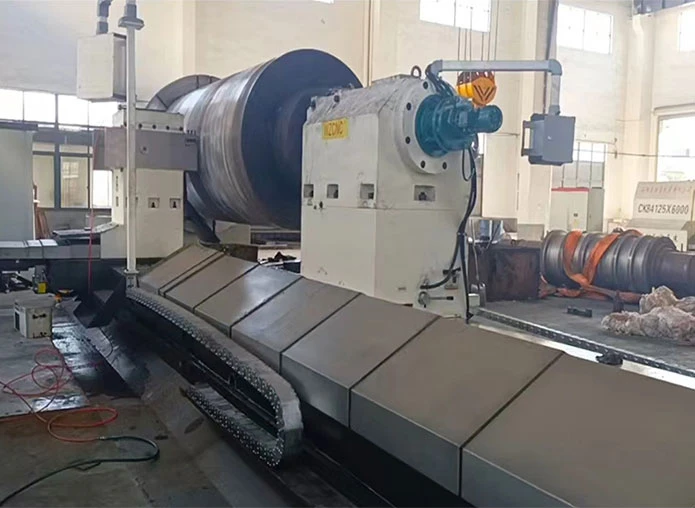

Extended Applications:Ideal for various roll types including; Work rolls and backup rolls for steel and non-ferrous metal rolling mills; Paper rolls and rubber rolls for industrial processing; Large precision shafts and cylinders requiring high surface finish standards; Grooved rolls and textured surface rolls
Repair and turning of worn rolls in metalworking, paper, and plastic industries

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacities
Max. roll turning diameter	mm
Max. length of workpiece	mm
Max. turning length	mm
Span of guideways	mm
Max. weight of workpiece	kg
Spindle
Spindle nose type	-
Spindle bore	mm
Taper hole of spindle	-
Taper of spindle center	-
Spindle speed range	r min
Chuck (4-jaw manual)	mm
Turret
Cross section of tool shank	mm
Turret type	-
Feed
Max. stroke of X-axis	mm
Min. feed of X-axis/Z-axis	mm
Rapid traverse speed of X-axis	m min
Rapid traverse speed of Z-axis	m min
Tailstock
Tailstock quill diameter	mm
Tailstock quill taper	-
Tailstock quill max. stroke	mm
Others
CNC system	-
Spindle motor power	kw
Machining accuracy	-
Surface roughness	μm

CK8450	CKQ8465	CKQ8485	CK8465	CK8485	CKQ84100	CK84100	CK84125	CK84160

Φ500	Φ650	Φ850	Φ650	Φ850	Φ1000	Φ1000	Φ1250	Φ1600
2500 3000	2500 3000	2500 3000	3500 5000	3500 5000	3500 5000	5000 6000 8000	5000 6000 8000	5000 6000 8000
2300 3000	2300 3000	2300 3000	3000 4800	3000 4800	3000 4800	4800 5800 7800	4800 5800 7800	4800 5800 7800
850 900	850 900	850 900	1100	1100	1100	1450	1450	1450
3600 4000	3600 4000	3600 4000	8000	8000	8000	20000	20000	20000

C2-11	C2-11	C2-11	A2-15	A2-15	A2-15	A2-15	A2-15	A2-15
Φ100	Φ100	Φ100	Φ130	Φ130	Φ130	Φ96	Φ96	Φ96
Metric120	Metric120	Metric120	Metric 140	Metric 140	Metric 140	Metric 140	Metric 140	Metric 140
MT5	MT5	MT5	MT6	MT6	MT6	MT6	MT6	MT6
10-500	10-500	10-500	8-350	8-350	8-350	5-200	5-200	5-200
Φ500-630	Φ500-630	Φ500-630	Φ630-800	Φ630-800	Φ630-800	Φ800-1125	Φ800-1125	Φ800-1125

40×40	40×40	40×40	40×40	40×40	40×40	50×50	50×50	50×50
V4	V4	V4	V4	V4	V4	V4	V4	V4

330	330	330	450	450	450	450	450	450
0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001
3	3	3	3	3	3	3	3	3
6	6	6	6	6	6	6	6	6

200	200	200	220	220	220	300	300	300
MT5	MT5	MT5	MT6	MT6	MT6	MT6	MT6	MT6
310	310	310	330	330	330	310	310	310

SIEMENS 808D	SIEMENS 808D	SIEMENS 808D	SIEMENS 808D	SIEMENS 808D	SIEMENS 808D	SIEMENS 808D	SIEMENS 808D	SIEMENS 808D
AC22 (30)	AC22 (30)	AC22 (30)	AC30 AC45	AC30 AC45	AC30 AC45	AC75	AC75	AC75
IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Ra 0.8	Ra 0.8	Ra 0.8	Ra 0.8	Ra 0.8	Ra 0.8	Ra 0.8	Ra 0.8	Ra 0.8

Accessories

Standard :

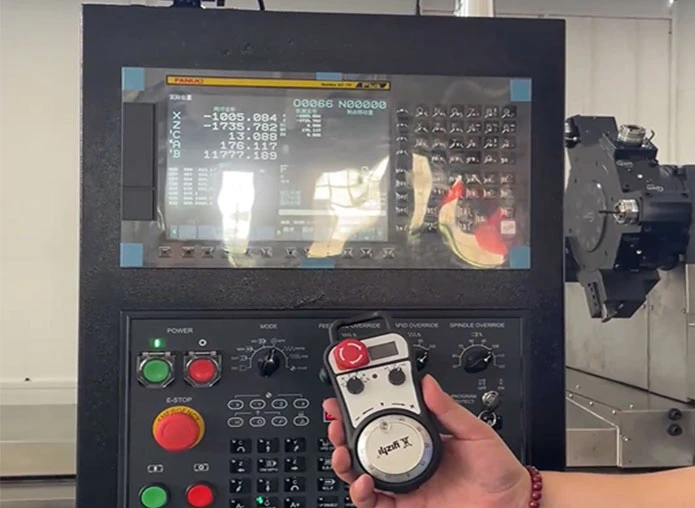

Fanuc 0i-TF (5) CNC system
4-jaw manual chuck
Standard turret

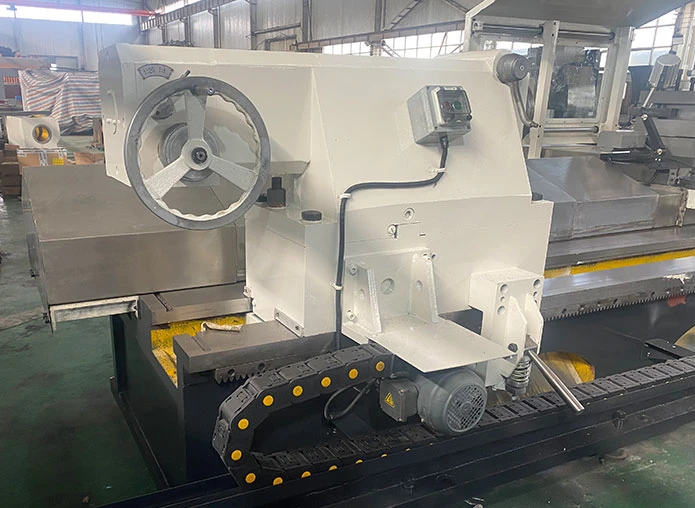

Standard tailstock
LED work light
Coolant system
Automatic Lubrication system
Schneider electrical component
Cabinet shield

Leveling wedge
Anchor bolt
Wrench
Center
Foot switch

Optional :

GSK 980TDi CNC system
Sinumerik 828D CNC system
Sinumerik 808D CNC system
3/4 jaw manual chuck
3/4 jaw pneumatic chuck
3/4 jaw hydraulic chuck
Hydraulic system
Hydraulic tailstock
Force measuring device
BMT75 power turret

C axis
Follow rest

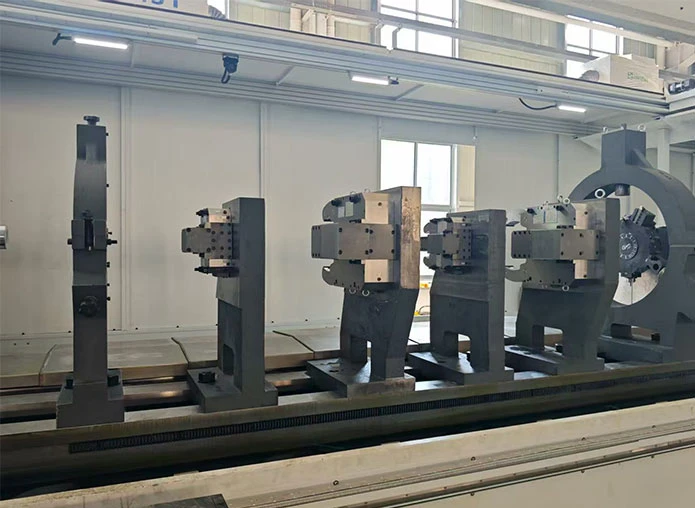

Steady rest
Roller support
Live center
Safety door switch
Cabinet air conditioner
Optical linear encoder
Semi/Full enclosed guard

Video

🔥 CK84100X 5000: Heavy-Duty milling turning center + Multi-Hydraulic Steady Rests Excellence!

Characteristic





Bed

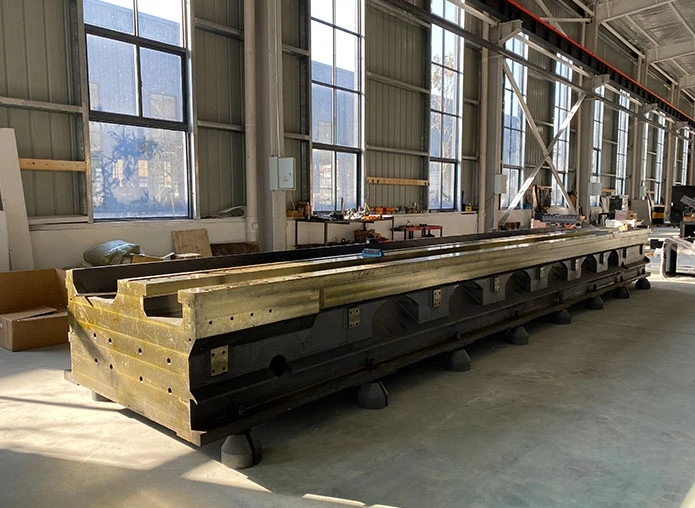

The bed of CK84 series CNC roll lathe adopts box structure and strong and tough MEHANITE cast iron (HT-250). It is cast by whole piece casting technology, so it has the characteristics of strong overall rigidity, good precision retention and high reliability.

The high rigidity 3 guideways structure is adopted, the feed guideway and the tailstock guideway are separated, the workpiece interference range is reduced. It has highprecision and it is convenient for chip discharging.It is suitable for the precision machining of high speed steel rolls, high boron steel rolls, laser cladding rolls and ordinary rolls.

Chuck

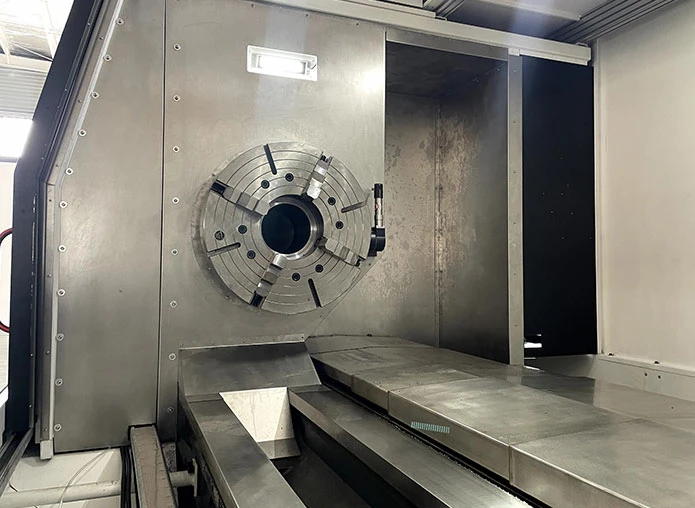

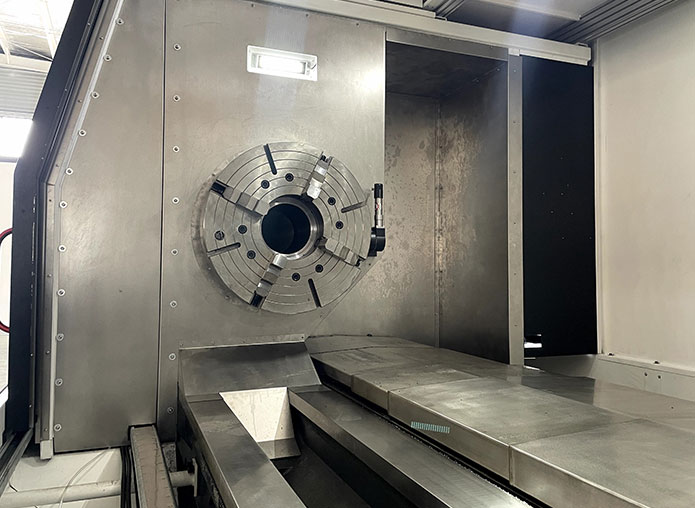

This lathe adopts φ1800 mm4-jaw manual independent chuck, the workpiece clamping is convenient, safe and reliable.
Hard jaws are used in rough machining and soft jaws are used in fine machining.

Other hydraulic or pneumatic chuck is optional

Turret

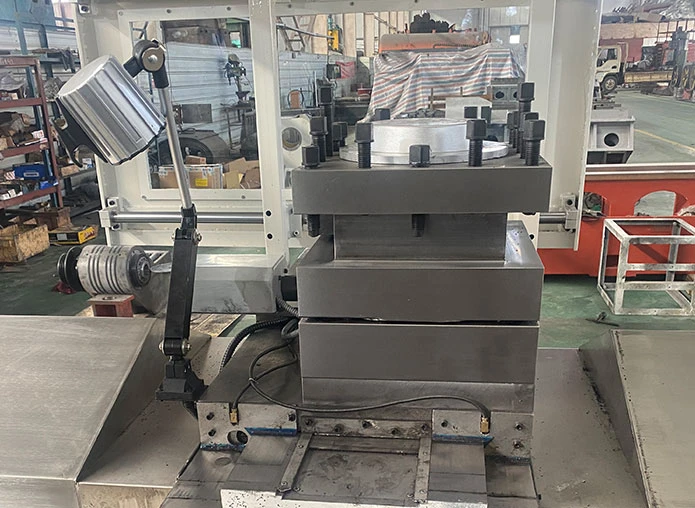

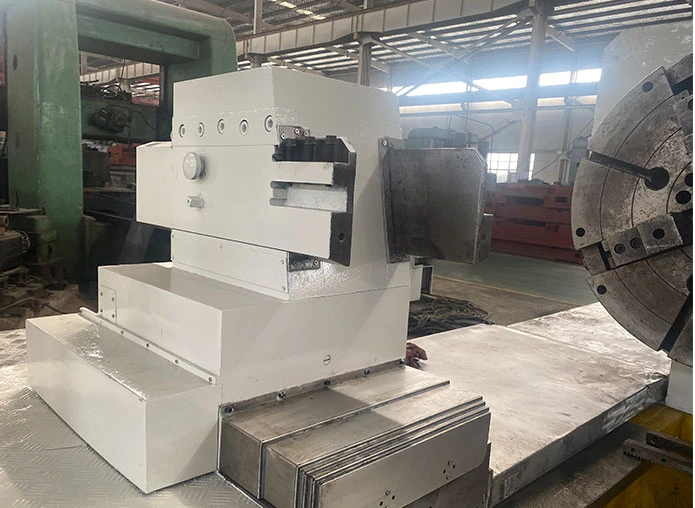

The lathe is equipped with frame type turret. The frame turret is suitable to installed on heavyduty horizontallathes for rough and finish cutingof various shaft pats, especially for heavy cutting (rough cutting) andcutting of stepped shafts, deep grooves and end faces. The tool platesare divided into main tool plate andauxiliary tool plate, which are arranged on the 2 sides of the frametype turret body. They can beindependently extended and retracted, and they are fixed on the turret body with pressing plate. Theextension length of the tool plate can be determined according to processing request. The tool plate movingmechanisi is manually operated
