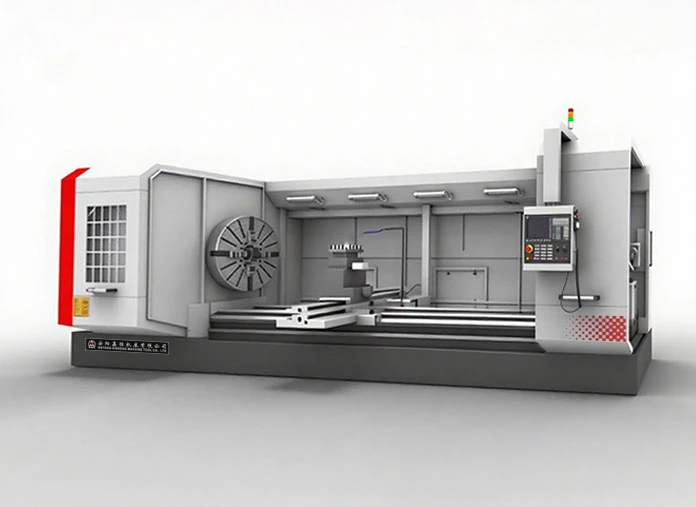

This CNC lathe delivers exceptional flexibility and operational efficiency, making it ideal for machining complex shafts, sleeves, disc-type parts, and a wide range of turning operations—including cylindrical/conical surfaces, arcs, end faces, grooves, chamfers, and threads. With a maximum workpiece weight capacity of 10 tons, it effortlessly handles heavy and large components while maintaining precision and stability.
Designed for medium-to-bigger batch production, this lathe excels in rapid job switching and offers strong process adaptability, high machining efficiency, low waste rates, and exceptional consistency in finished parts. Its user-friendly programming and simplified operation reduce dependency on highly skilled operators, streamlining production workflows.
Note: swing over bed/distance between centers (3000 mm – 16000 mm) can be customized.
| Items | Unit |
|---|---|
| Capacity | |
| Swing over bed | mm |
| Swing over carriage | mm |
| Max. length of workpiece | mm |
| Max. turning length | mm |
| Span of guideway | mm |
| Max. weight of workpiece | ton |
| Spindle | |
| Spindle nose type | - |
| Spindle center taper | - |
| Spindle bore | mm |
| Spindle speed range |
r min |
| Turret | |
| Cross section of tool shank | mm |
| Turret type | - |
| Tailstock | |
| Tailstock quill diameter | mm |
| Tailstock quill taper | - |
| Tailstock quill max. stroke | mm |
| Power system | |
| Main motor power | kW |
| Others | |
| CNC system | - |
| Width×Height | mm |
| Length | mm |
| Net weight | kg |
| CK61125E | CK61140E | CK61160E | CK61180E |
|---|---|---|---|
| Φ1250 | Φ1400 | Φ1600 | Φ1800 |
| Φ880 | Φ1010 | Φ1210 | Φ1410 |
|
3000 5000 8000 |
3000 5000 8000 |
3000 5000 8000 |
3000 5000 8000 |
|
2800 4800 7800 |
2800 4800 7800 |
2800 4800 7800 |
2800 4800 7800 |
| 970 | 970 | 970 | 970 |
| 10 | 10 | 10 | 10 |
| A2-15 | A2-15 | A2-15 | A2-15 |
| MT6 | MT6 | MT6 | MT6 |
| Φ130 | Φ130 | Φ130 | Φ130 |
| 5-320(stepless in 4 hydraulic gears) | 5-320(stepless in 4 hydraulic gears) | 5-320(stepless in 4 hydraulic gears) | 5-320(stepless in 4 hydraulic gears) |
| 40×40 | 40×40 | 40×40 | 40×40 |
| V4 | V4 | V4 | V4 |
| Φ220 | Φ220 | Φ220 | Φ220 |
| MT6 | MT6 | MT6 | MT6 |
| 300 | 300 | 300 | 300 |
| 30 | 30 | 30 | 30 |
| FANUC 0i-TF (5) | FANUC 0i-TF (5) | FANUC 0i-TF (5) | FANUC 0i-TF (5) |
| 2665×2680 | 2665×2680 | 2665×2680 | 2665×2680 |
|
6520 8520 11520 |
6520 8520 11520 |
6520 8520 11520 |
6520 8520 11520 |
|
13500 16500 20000 |
13500 16500 20000 |
13500 16500 20000 |
13500 16500 20000 |
A 970 mm guideway CNC lathe is recommended for heavy-duty turning where larger swing, longer center distance, higher load capacity, and stronger bed rigidity are required.
It is suitable for large shafts, rollers, cylinders, heavy sleeves, and other large industrial workpieces used in energy, mining, steel, shipbuilding, and heavy machinery applications.
Yes. Steady rests and follow rests can be considered for long and heavy shaft parts to improve support and machining stability.
Please confirm the workpiece weight, maximum turning diameter, length, spindle bore, chuck requirement, tailstock requirement, CNC system, and workshop power supply.
