What is this conventional lathe series suitable for?

This series is suitable for general manual turning, repair work, training, maintenance, and small to medium workpieces such as shafts, sleeves, and discs.

Which models may be included in this series?

The series may include CD6132, CD6136, CD6140, CQ6140, CQ6150, CQ6161, CQ6166, CQ6180, and related gap-bed models depending on required swing and center distance.

Why choose a conventional lathe instead of a CNC lathe?

A conventional lathe is more flexible for manual operation, repair, single-piece machining, and workshops that do not require programmed batch production.

What should I provide before quotation?

Please provide swing over bed, center distance, spindle bore, workpiece material, machining process, and destination port.

Conventional lathe(312/400mm guideway)Conventional lathe





Conventional lathe

Designed for exceptional performance and durability, our CQ Series conventional Lathe delivers reliable precision for a wide range of turning applications. It is well-suited for machining samll to medium workpieces, offering a practical balance of power, accuracy, and versatility.
This lathe supports shaft diameters from Ø180mm to Ø400mm and can handle workpieces up to 4000mm in length, making it ideal for long shafts and bulky components. The HT300 cast iron bed, combined with 312mm or 400mm wide hardened guideways, ensures outstanding rigidity and vibration resistance, providing consistent performance even under full load capacity of 300kg.
For added flexibility, an optional gap bed is available, significantly expanding the machine’s range to accommodate large-diameter disk-type parts and irregular shapes. Whether you’re turning, facing, boring, or threading, this lathe offers smooth operation and dependable accuracy.
Ideal for job shops, maintenance departments, and small-scale manufacturing, this machine brings industrial-grade robustness and functionality to your workshop.

Note: swing over bed/swing over gap/distance between centers (750 mm – 4000 mm) can be customized.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Swing over bed	mm
Swing over carriage	mm
Swing over gap	mm
Max. length of workpiece	mm
Max. turning length	mm
Span of guideway	mm
Spindle
Spindle nose type	-
Spindle taper	-
Spindle bore	mm
No. of spindle speeds	-
Range of spindle speeds	r min
Toolpost
Cross section of tool shank	mm
Tool post type	mm
Max.stroke of upper toolpost	mm
Feed
No.of longitudinal feeding	mm r
No.of transverse feeding	mm r
No.and rang of metric threads	-
No.and rang of inch threads	TPI
No.and rang of modulus threads	-
No.and rang of diameter pitch threads	-
Tailstock
Tailstock quill diameter	mm
Tailstock quill taper	-
Tailstock quill effective stroke	mm
Others
Main motor power	kW
Width × Height	mm
Length	mm
Net weight	kg

CD6132	CD6136	CD6140	CQ6140	CQ6240	CQ6150	CQ6250	CQ6161	CQ6261	CQ6166	CQ6266

320	360	400	400	400	500	500	610	610	660	660
180	200	240	210	210	300	300	370	370	400	400
-	-	-	-	630	-	720	-	830	-	880
750 1000	750 1000	750 1000	1000 2000 3000	1000 2000 3000	1000 2000 3000	1000 2000 3000	1000 2000 3000	1000 2000 3000	1000 2000 3000	1000 2000 3000
600 850	600 850	600 850	850 1850 2850	850 1850 2850	850 1850 2850	850 1850 2850	850 1850 2850	850 1850 2850	850 1850 2850	850 1850 2850
312	312	312	400	400	400	400	400	400	400	400

C6	C6	C6	C6 D8	C6 D8	C6 D8 D8	C6 D8 D8	C6 D8 D8	C6 D8 D8	C6 D8 D8	C6 D8 D8
MT6	MT6	MT6	MT6 90 1:20	MT6 90 1:20	MT6 90 1:20 113 1:20	MT6 90 1:20 113 1:20	MT6 90 1:20 113 1:20	MT6 90 1:20 113 1:20	MT6 90 1:20 113 1:20	MT6 90 1:20 113 1:20
52	52	52	52 80	52 80	52 80 105	52 80 105	52 80 105	52 80 105	52 80 105	52 80 105
12	12	12	24	24	24	24	24	24	24	24
30-1600	30-1600	30-1600	16-1400	16-1400	16-1400	16-1400	16-1400	16-1400	16-1400	16-1400

20×20	20×20	20×20	25×25	25×25	25×25	25×25	25×25	25×25	25×25	25×25
V4	V4	V4	V4	V4	V4	V4	V4	V4	V4	V4
140	140	140	140	140	140	140	140	140	140	140

44;0.039-1.05	44;0.039-1.05	44;0.039-1.05	64	64	64	64	64	64	64	64
44;0.019-0.52	44;0.019-0.52	44;0.019-0.52	64	64	64	64	64	64	64	64
25;0.5-20	25;0.5-20	25;0.5-20	44;1-192	44;1-192	44;1-192	44;1-192	44;1-192	44;1-192	44;1-192	44;1-192
35;80-1.75	35;80-1.75	35;80-1.75	21;24-2	21;24-2	21;24-2	21;24-2	21;24-2	21;24-2	21;24-2	21;24-2
24;0.25-10	24;0.25-10	24;0.25-10	39;0.25-48	39;0.25-48	39;0.25-48	39;0.25-48	39;0.25-48	39;0.25-48	39;0.25-48	39;0.25-48
30;160-3.5	30;160-3.5	30;160-3.5	37;1-96	37;1-96	37;1-96	37;1-96	37;1-96	37;1-96	37;1-96	37;1-96

60	60	60	75	75	75	75	75	75	75	75
MT4	MT4	MT4	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5
100	100	100	150	150	150	150	150	150	150	150

3	3	3	7.5	7.5	7.5	7.5	7.5	7.5	7.5	7.5
970×1220	970×1250	970×1280	1000×1267	1000×1267	1037×1312	1037×1312	1081×1367	1081×1367	1106×1392	1106×1392
1940 2180	1940 2180	1940 2180	2650 3650 4800	2650 3650 4800	2650 36504800	2650 36504800	2650 3650 4800	2650 3650 4800	2650 3650 4800	2650 3650 4800
1300 1370	1350 1400	1400 1450	2070 2570 3200	2070 2570 3200	2140 2640 3400	2140 2640 3400	2250 2787 3600	2250 2787 3600	2450 2880 3800	2450 2880 3800

Accessories

Standard :

3-jaw self-centering chuck
Standard V4 toolpost
Standard tailstock
LED work light
Coolant system
Leveling wedge
Anchor bolt
Wrench
Dead center

Optional :

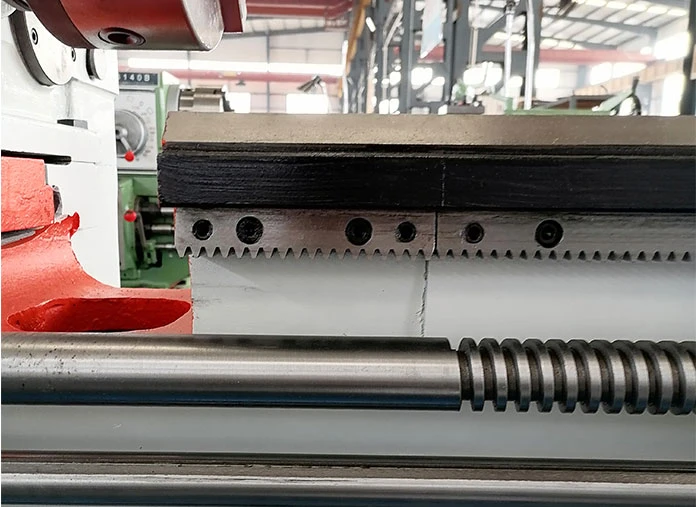

Bed Guideway Recess (GAP)
Φ80/105 Spindle Bore
Four-Jaw Chuck
Face Plate
Quick-Change Tool Post
Power Grinding Head

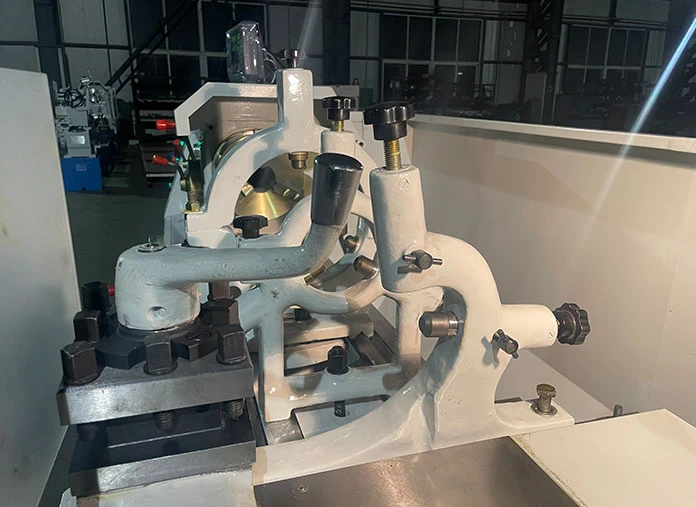

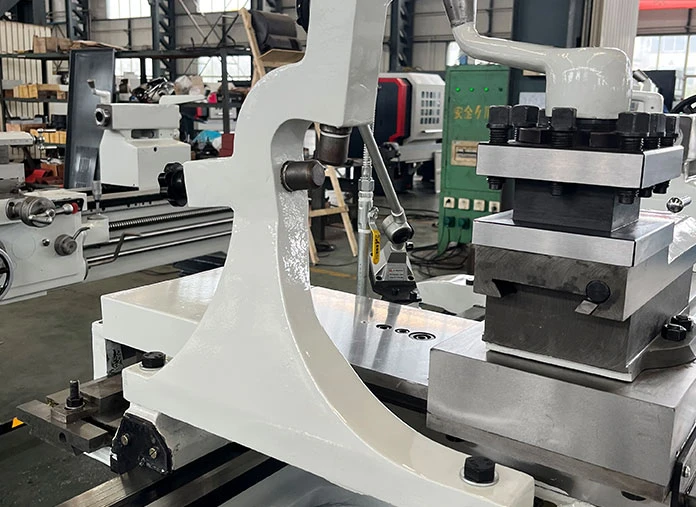

Moving Steady Rest

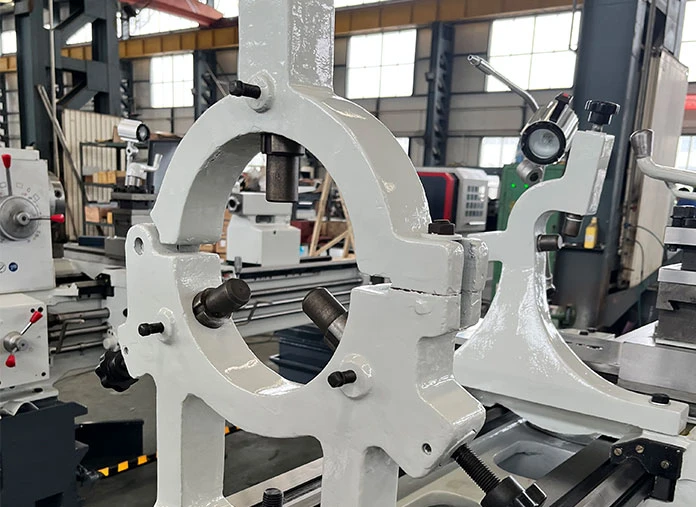

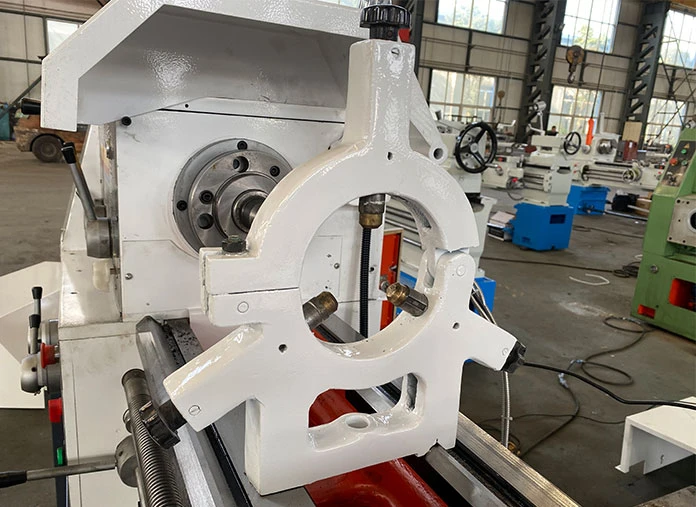

Fixed Steady Rest

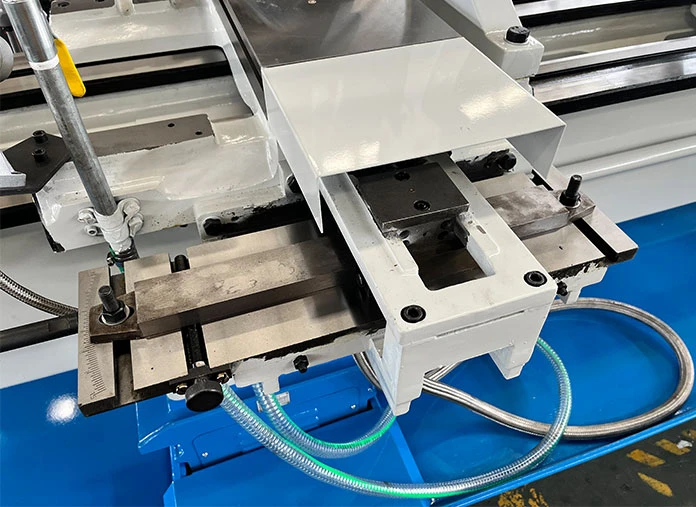

Taper Turning Fixture

Tool Post Guard

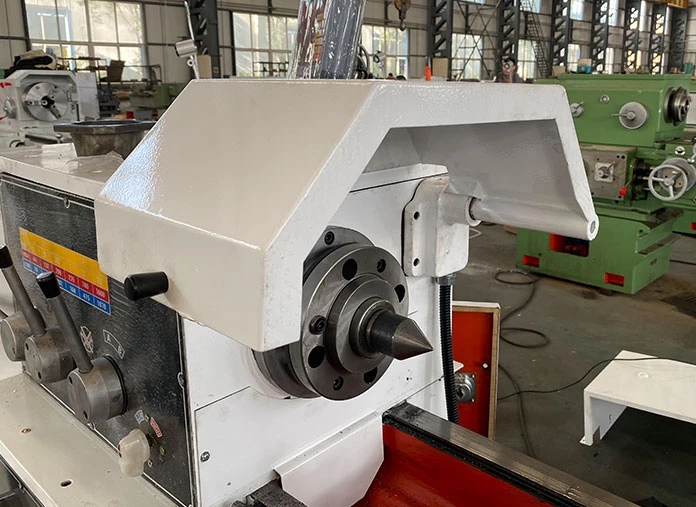

Lathe Chuck Guard

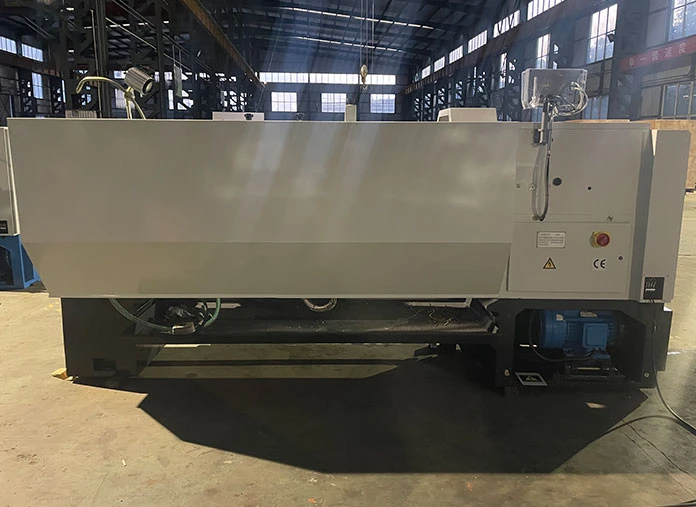

Rear End Guard
Foot Switch
Thread Lead Indicator
Reducing Sleeve
Rotating Lathe Center
Digital Display (DDI)

Video

🌟 CD6132 Conventional Lathe: Quick-Change Tool Post Excellence!

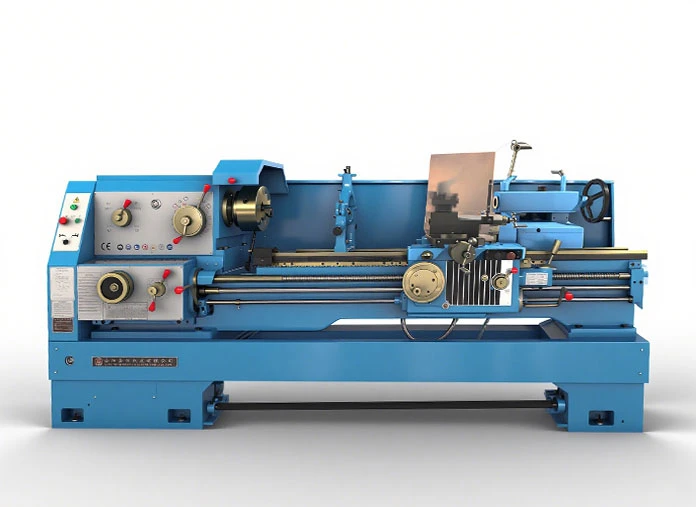

CQ6150 conventional lathe

Characteristic





Chuck

The lathe adopts Ф200 mm 3-jaw chuck.

Toolpost

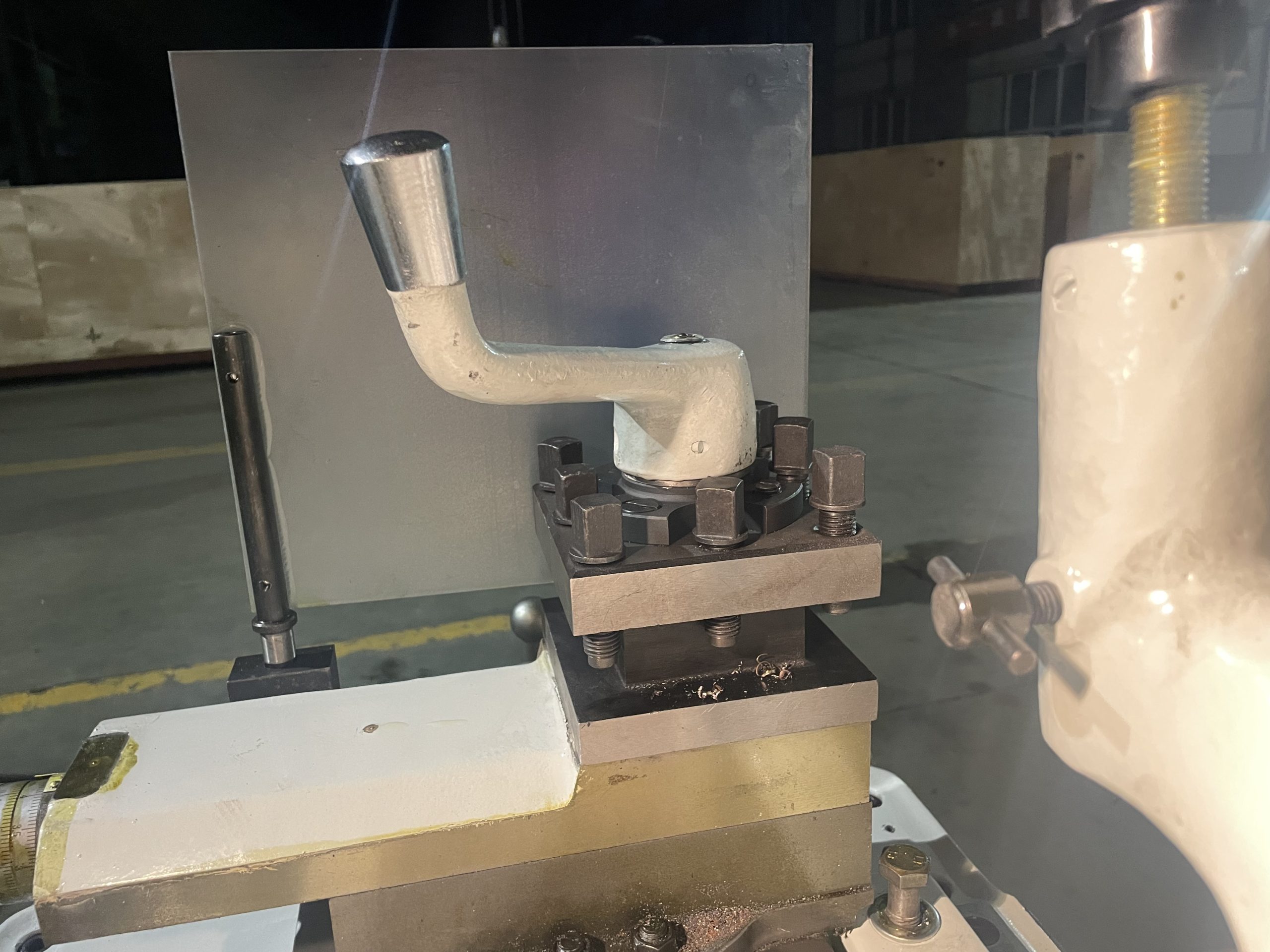

The lathe is equipped with vertical 4-position toolpost. Other quick change toolposts are for option.

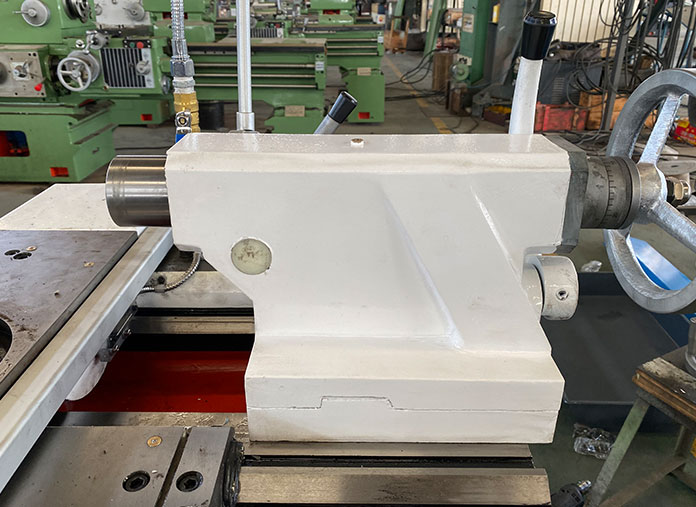

Tailstock

The center line of tailstock spindle is horizontally zeroed to the center line of the headstock spindle. The center line of tailstock spindle has been well adjusted before lathe leaves the factory. There is a zero line mark at the convex plane between the right lower tailstock body and the base.
