What are the advantages of the 550/600 mm guideway CNC lathe?

The 550/600 mm guideway CNC lathe provides stronger rigidity and better cutting stability for medium and heavy shaft parts compared with smaller guideway machines.

Which workpieces are suitable for this series?

This series is suitable for shafts, rollers, sleeves, discs, and medium-heavy workpieces that need stable CNC turning over longer center distances.

What configuration options are commonly considered?

Common options include CNC system, hydraulic chuck, manual or hydraulic tailstock, tool post type, spindle bore, chip conveyor, steady rest, and follow rest.

Can this series handle long workpieces?

Yes. The center distance can be selected according to the workpiece length, and steady rests can be considered for long shaft machining.

What details are needed before quotation?

Please provide the maximum turning diameter, workpiece length, weight, material, machining allowance, tolerance, and production quantity.

CNC Lathe Solutions for Modern Machining





CNC lathe

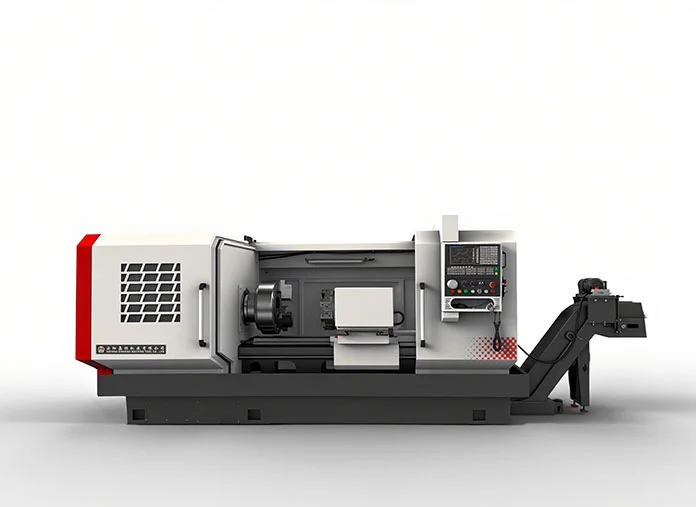

This robust CNC lathe is engineered for industrial applications, featuring a swing capacity of Φ340–970mm and supporting workpieces up to 12 meters in length with a maximum weight capacity of 4 tons. Equipped with a 4-station vertical electric turret for efficient tool changes and a manual tailstock for extended workpiece support, it delivers precision turning performance for large-diameter components.
Ideal for machining shafts, pipes, and cylindrical parts in energy, marine, and heavy machinery industries.

Note: swing over bed/swing over gap/distance between centers (1000 mm – 8000 mm)

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Swing over bed	mm
Swing over carriage	mm
Swing over gap	mm
Max. length of workpiece	mm
Max. turning length	mm
Span of guideway	mm
Max. weight of workpiece	ton
Spindle
Spindle nose type	-
Spindle center taper	-
Spindle bore	mm
Spindle speed range	r min
Turret
Cross section of tool shank	mm
Turret type	-
Feed
Min. feed of X-axis/Z-axis	mm
Rapid traverse speed of X-axis/Z-axis	mm min
Max. stroke of X-axis	mm
Tailstock
Tailstock quill diameter	mm
Tailstock quill taper	-
Tailstock quill max. stroke	mm
Power system
Main motor power	kW
Others
CNC system	-
Width×Height	mm
Length	mm
Net weight	kg

CK6163	CK6263	CK6180	CK6280	CK6194	CK6294	CKP6163	CKP6263	CKP6180	CKP6280	CKP6194	CKP6294	CKB6180	CKB61100	CKBP6180	CKBP61100	CKBP61125

Φ630	Φ630	Φ800	Φ800	Φ940	Φ940	Φ630	Φ630	Φ800	Φ800	Φ940	Φ940	Φ800	Φ1000	Φ800	Φ1000	Φ1250
Φ340	Φ340	Φ510	Φ510	Φ650	Φ650	Φ340	Φ340	Φ510	Φ510	Φ650	Φ650	Φ480	Φ680	Φ480	Φ680	Φ930
-	Φ800	-	Φ970	-	Φ1110	-	Φ800	-	Φ970	-	Φ1110	-	-	-	-	-
750 1000 1500	750 1000 1500	750 1000 1500	750 1000 1500	750 1000 1500	750 1000 1500	750 1000 1500 2000	750 1000 1500 2000	750 1000 1500 2000	750 1000 1500 2000	750 1000 1500 2000	750 1000 1500 2000	1000 1500 2000	1000 1500 2000	1000 1500 2000	1000 1500 2000	1000 1500 2000
600 850 1350	600 850 1350	600 850 1350	600 850 1350	600 850 1350	600 850 1350	600 850 1350 1850	600 850 1350 1850	600 850 1350 1850	600 850 1350 1850	600 850 1350 1850	600 850 1350 1850	850 1350 1850	850 1350 1850	1350 1850 2850	1350 1850 2850	850 1350 1850
550	550	550	550	550	550	550	550	550	550	550	550	600	600	600	600	600
2 3	2 3	2 3	2 3	2 3	2 3	2	2	2	2	2	2	2.5	2.5	4	4	4

C11	C11	C11	C11	C11	C11	C11	C11	C11	C11	C11	C11	C11 C15	C11 C15	C11 C15	C11 C15	C11 C15
MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT6	MT6	MT6	MT6	MT 6
Φ100 Φ105	Φ100 Φ105	Φ100 Φ105	Φ100 Φ105	Φ100 Φ105	Φ100 Φ105	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100 Φ140	Φ100 Φ140	Φ100 Φ140	Φ100 Φ140	Φ100 Φ140
12.5-1000 (stepless 4 hydraulic gears) 10-1200 (stepless 3 manual gears)	12.5-1000 (stepless 4 hydraulic gears) 10-1200 (stepless 3 manual gears)	10-800 (stepless 4 hydraulic gears stepless 3 manual gears)	10-800 (stepless 4 hydraulic gears stepless 3 manual gears)	10-800 (stepless 4 hydraulic gears stepless 3 manual gears)	10-800 (stepless 4 hydraulic gears stepless 3 manual gears)	27-1000 (stepless in 3 manual gears)	27-1000 (stepless in 3 manual gears)	10-800 (stepless in 3 manual gears)	22-800 (stepless in 3 manual gears)	10-800 (stepless in 3 manual gears)	22-800 (stepless in 3 manual gears)	8-800 (stepless with manual hydraulic gears)	8-800 (stepless with manual hydraulic gears)	8-800 (stepless in 3 manual gears)	8-800 (stepless in 3 manual gears)	8-800 (stepless in 3 manual gears)

32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32	32×32
V4	V4	V4	V4	V4	V4	V4	V4	V4	V4	V4	V4	V4	V4	V4	V4	V4

0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001	0.001 0.001
3000 6000	3000 6000	3000 6000	3000 6000	3000 6000	3000 6000	3000 6000	3000 6000	3000 6000	3000 6000	3000 6000	3000 6000	4000 5000	4000 5000	4000 5000	4000 5000	4000 6000
390	390	475	475	475	475	390	390	475	475	475	475	420	420	400	500	625

Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ100	Φ120	Φ120	Φ120
MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT5	MT6	MT6	MT6	MT6	MT6
250	250	250	250	250	250	250	250	250	250	250	250	250	250	290	290	290

11	11	11	11	11	11	11	11	11	11	11	11	15	15	15	15	15

GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi	GSK980TDi
1800×1880	1800×1880	1880×1930	1880×1930	1880×1930	1880×1930	1800×1880	1800×1880	1880×1930	1880×1930	1880×1930	1880×1930	1985×2105	1985×2105	1985×2105	1985×2105	1985×2105
3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3125 3445 3895	3480 3970 4510	3480 3970 4510	3480 3970 4510	3480 3970 4510	3480 3970 4510
3500 3700 4000	3500 3700 4000	3900 4100 4400	3500 3700 4000	4200 4400 4700	3500 3700 4000	3500 3700 4000	3500 3700 4000	3900 4100 4400	3500 3700 4000	4200 4400 4700	3500 3700 4000	4800 5300 5600	5100 5600 5900	5000 5400 5800	5400 5800 6600	6600 7400 8200

Accessories

Standard :

Fanuc 0i-TF (5) CNC system
3-jaw manual chuck
Standard V4 turret
Standard manual tailstock
LED work light
Coolant system
Automatic Lubrication system
Schneider electrical component
Semi-enclosed cabinet shield
Leveling wedge
Anchor bolt
Wrench

Optional :

GSK 980TDi CNC system
Sinumerik 808D CNC system
Φ140mm Spindle bore
Independent spindle
3/4-jaw manual chuck
3/4-jaw pneumatic chuck
3/4-jaw hydraulic chuck
Hydraulic system
Hydraulic spindle brake
11/15 kW Servo motor
6/8/12 station electric turret
6/8/12 station hydraulic turret
Milling power head

Grinding attachment
Hydraulic tailstock
Rotary tailstock
Hydraulic steady rest

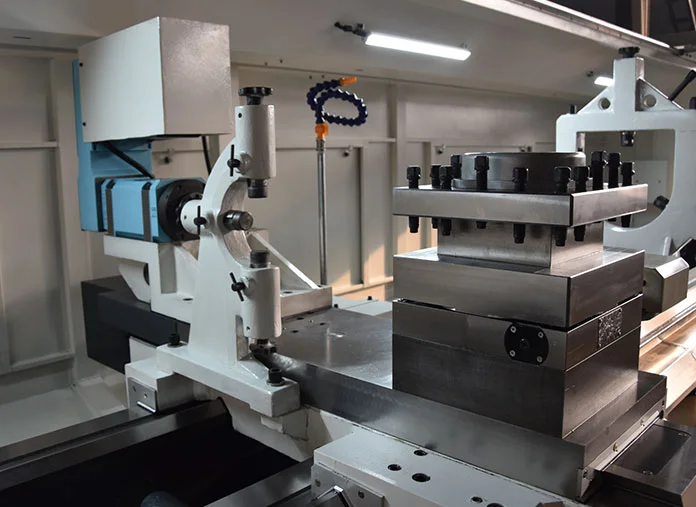

Follow rest

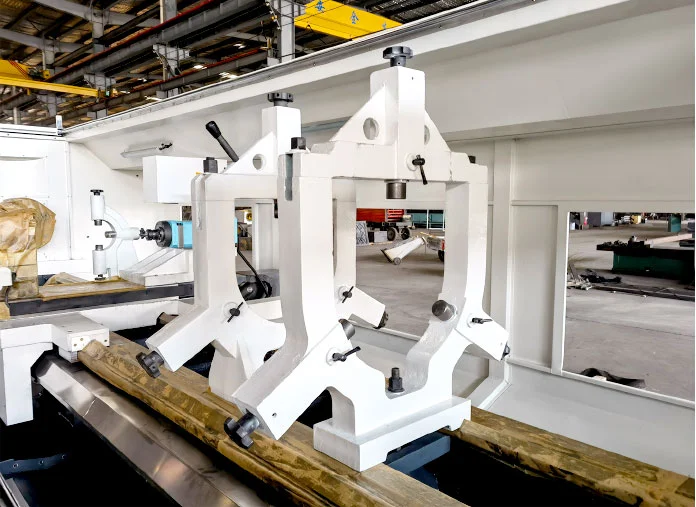

Steady rest
Live center
Fully enclosed cabinet shield
Safety door switch
Chip conveyor
Optical linear encoder
Automatic gear shift
Truss automation
C-axis

Video

CK6180 CNC lathe with milling power head

CK6194 CNC LATHE

Characteristic





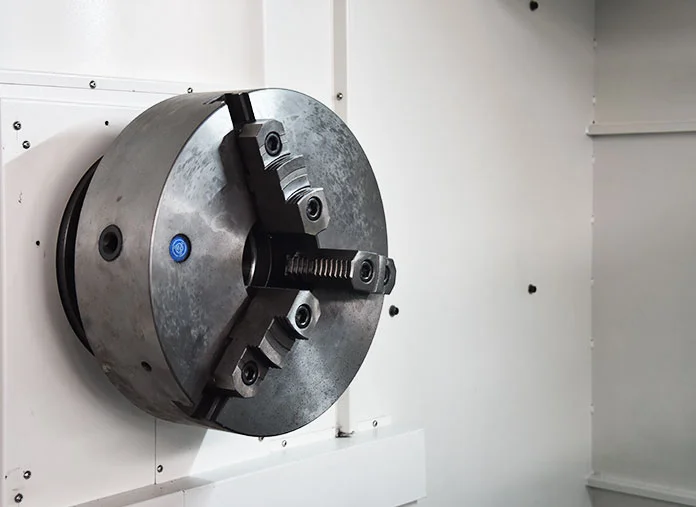

Chuck

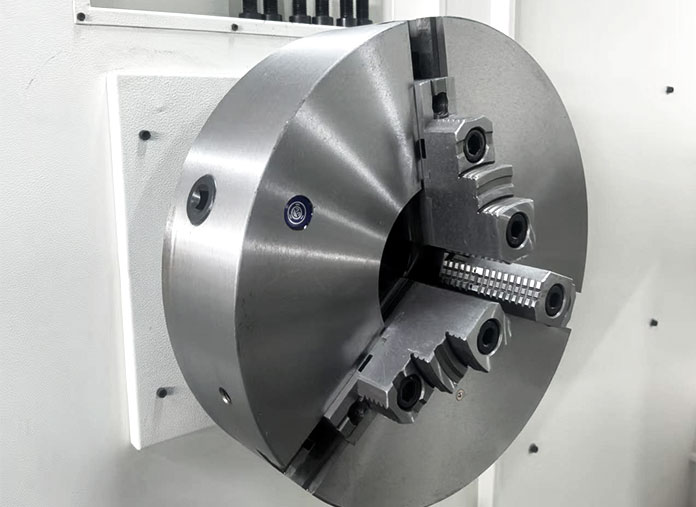

φ325 mm manual 3-jaw self-centering chuck (standard configuration);

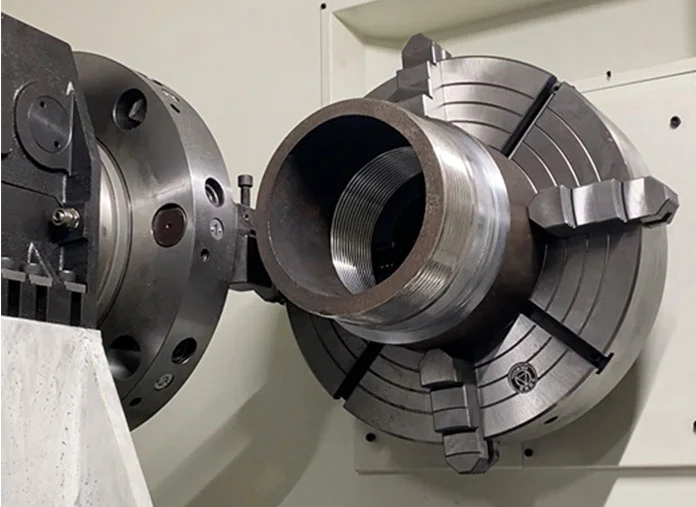

Other 3-jaw and 4-jaw chuckswith other specifications are optional;

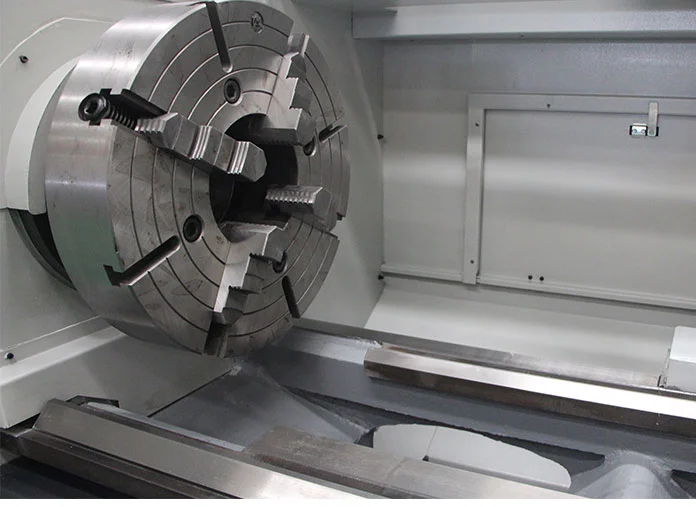

Hydraulic chuck, pneumatic chuck and other power chuck are optional.

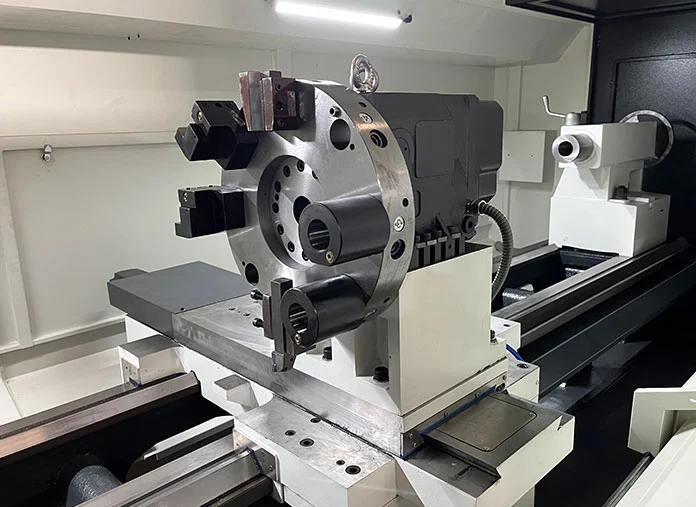

Turret

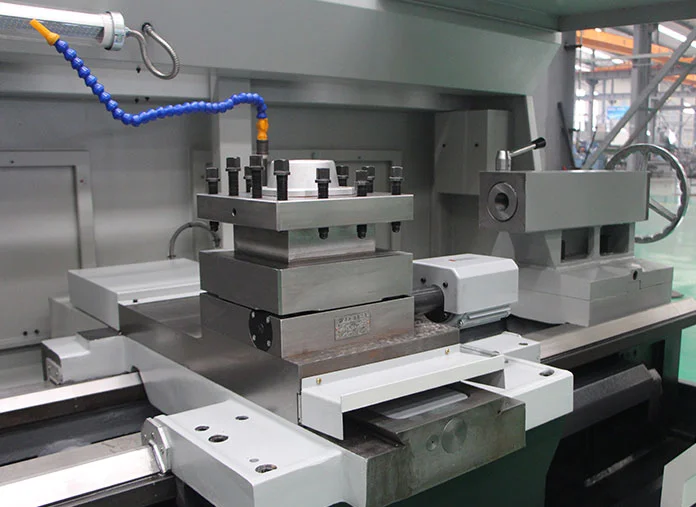

Electric turret without lifting, it’s quick and convenient to change cutting tool.

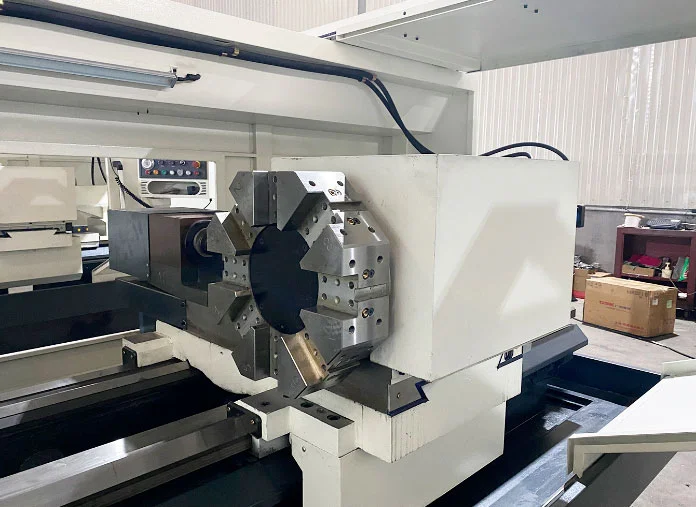

Standard configuration is 4-station square turret (the size of the tool table is 240×240mm). Other vertical 4-station and 6-station turretsare optional. The horizontal 6-station and 8-station turrets are optional with center height 100mm,tool clamper hole φ40mm, tool cross section 25×25mm or 32×32mm.

Tailstock

Strong structure, it could withstand heavy cutting;

The tailstock quill is quenched and precision ground;

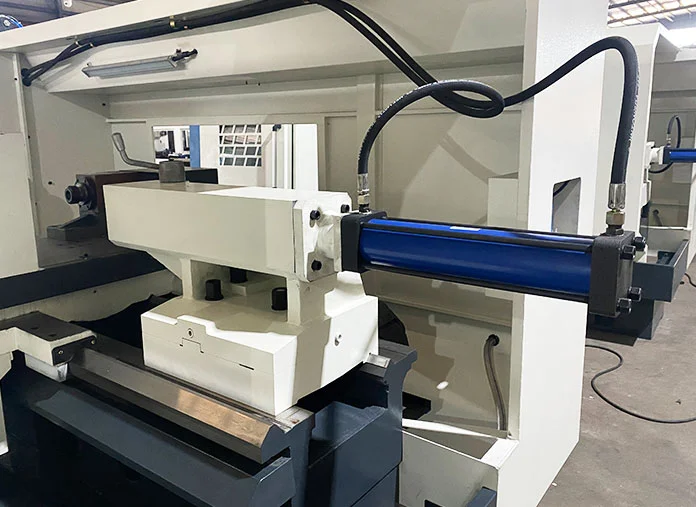

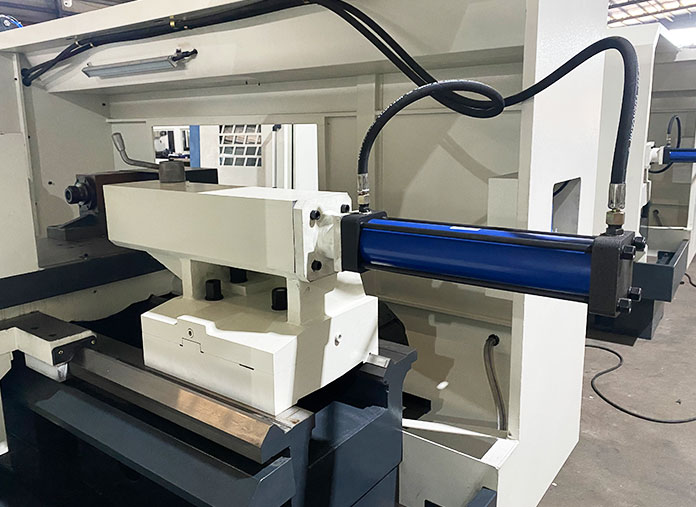

Hydraulic tailstockis optional.
