Oil Country Lathe for Oil and Gas Pipe Processing

Short Answer

An Oil Country Lathe is a specialized lathe designed for turning and threading pipes used in the oil and gas industry. Its key feature is a large spindle bore, which allows long pipes to pass through the headstock instead of being limited by the conventional distance between centers. Front and rear large-bore chucks can clamp the pipe on both sides of the spindle, providing stable support during machining. Oil country lathes are commonly used for oil casing, tubing, drill pipe, pipe joints and other tubular components, performing operations such as turning, facing, boring and thread cutting. Conventional and CNC versions are available depending on production volume, thread requirements and automation needs.

What Can an Oil Country Lathe Process?

Oil and gas production requires many long tubular components with different diameters, wall thicknesses and connection threads.

Typical applications include:

For these workpieces, a standard lathe may have insufficient spindle bore or clamping capacity. An oil country lathe is designed specifically around the requirements of long pipe processing.

Large Spindle Bore

The spindle bore is one of the most important parameters when selecting an oil country lathe.

Unlike ordinary shaft machining, long oil pipes are usually passed directly through the spindle. Therefore, the pipe outside diameter must be smaller than the machine’s allowable through-hole capacity.

A large spindle bore provides several advantages:

1. Easier loading of long tubular workpieces
2. Reduced limitation from workpiece length
3. More convenient pipe-end machining
4. Better suitability for different casing and tubing diameters

Buyers should check both spindle bore diameter and maximum pipe threading diameter before selecting a machine.

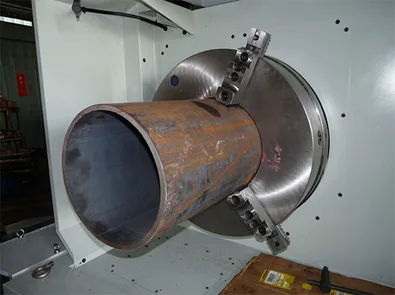

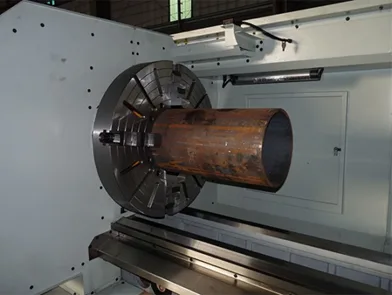

Front and Rear Chuck Clamping

Oil country lathes commonly use two large-bore chucks, positioned at the front and rear of the headstock.

This double-chuck configuration provides additional support for long pipes and helps reduce movement and vibration during cutting.

Depending on the model and production requirements, the machine can use manual chucks or hydraulic chucks.

For long workpieces extending beyond the machine, additional pipe support equipment may also be required.

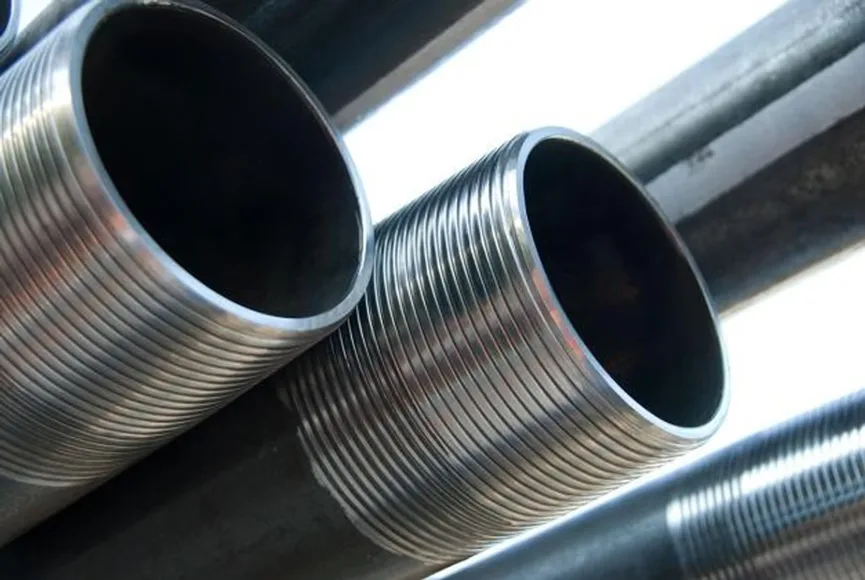

Threading Capability

Thread machining is one of the primary functions of an oil country lathe.

Depending on the machine configuration, it can machine:

• Metric threads
• Inch threads
• Module or DP threads
• Pipe threads
• API-standard tapered threads

This makes the machine suitable not only for new pipe production but also for oilfield pipe thread repair and maintenance.

Conventional vs CNC Oil Country Lathe

CNC models can be equipped with CNC control, hydraulic chucks, automatic turrets, steady rests and other optional configurations according to the workpiece and production requirements.

Key Parameters Buyers Should Check

Before ordering an oil country lathe, confirm:

• Maximum pipe outside diameter
• Spindle bore diameter
• Pipe threading diameter range
• Maximum workpiece length
• Required thread type
• Spindle speed range
• Chuck type and clamping method
• Conventional or CNC control

At Anyang Xinheng Machine Tool, we provide conventional and CNC pipe threading lathes for different oil and gas pipe processing requirements.

Send us your pipe diameter, length, material, thread specification and production requirements, and we can recommend a suitable machine configuration for your application.
