Short Answer
The spindle center taper and tailstock taper are two different tapered interfaces on a lathe. The spindle center taper is located inside the headstock spindle and is mainly used to mount a center or compatible taper-shank accessory on the spindle side. The tailstock taper is located inside the tailstock quill and accepts accessories such as live centers, dead centers, drill chucks, and taper-shank drills. Both are commonly specified using Morse Taper (MT) sizes, such as MT4, MT5, or MT6. For buyers, the important point is not simply whether the two taper sizes are the same, but whether each taper matches the required tooling, workpiece size, and machining application.
What Is the Spindle Center Taper?
The spindle center taper is the precision tapered seat inside the front section of the lathe spindle.
When a center is installed, the taper helps position it accurately along the spindle axis. This arrangement is particularly useful when machining shafts between centers, where accurate alignment between the headstock and tailstock is important.
Its main functions include:
What Is the Tailstock Taper?

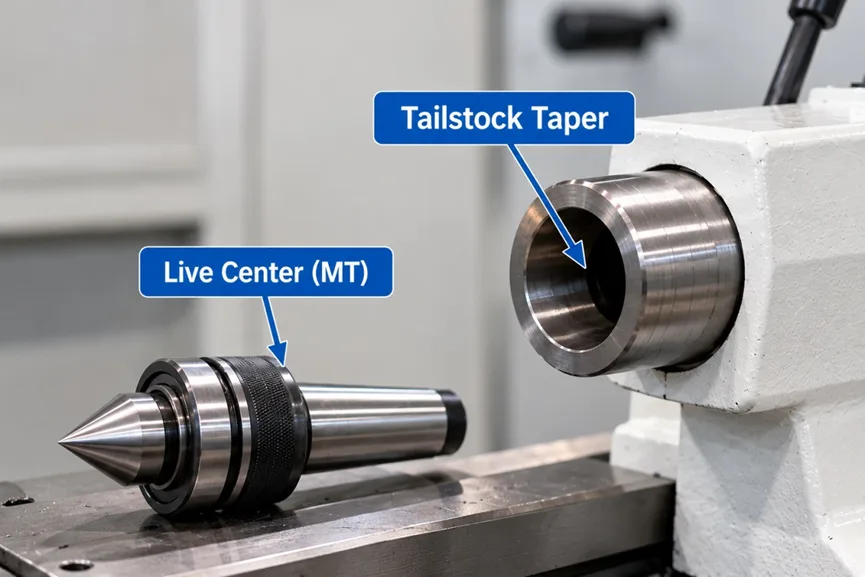

The tailstock taper is the internal taper inside the tailstock quill.
Unlike the spindle center taper, it is frequently used with different accessories during everyday machining.
Typical tailstock tooling includes:
For example, if a lathe specification lists Tailstock Quill Taper: MT5, the buyer should select an MT5 center or use a suitable adapter for other taper sizes.

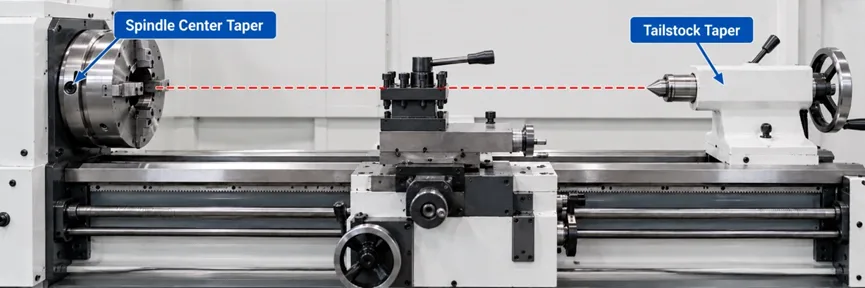

Spindle Center Taper vs Tailstock Taper
| Parameter | Spindle Center Taper | Tailstock Taper |
| Location | Inside headstock spindle | Inside tailstock quill |
| Main Purpose | Mount spindle-side center | Mount center or drilling tools |
| Common Standard | Morse Taper / machine-specific taper | Usually Morse Taper |
| Typical Accessories | Dead center, taper accessories | Live center, dead center, drill chuck, drill |
| Rotates During Machining | Rotates with spindle | Normally does not rotate |
| Important For | Between-centers turning | Workpiece support and drilling |
Do Both Tapers Need to Be the Same Size?
No. The spindle center taper and tailstock taper do not necessarily need to have the same MT size.
Each taper is designed according to its own machine component and load requirements. A lathe may therefore use different taper sizes at the spindle and tailstock.
What matters is that the tooling installed at each position matches the specified taper.
For example, if the spindle center taper is MT6 and the tailstock taper is MT5, this does not indicate a problem. The operator simply needs the correct center or adapter for each side.
Why Should Buyers Check These Parameters?
Taper specifications affect tool compatibility, workpiece support, machine setup, and accessory purchasing.
A wrong taper size may prevent an existing center or drill chuck from being installed directly. Buyers replacing an old lathe should therefore check whether their existing tooling can be reused on the new machine.
For long-shaft machining, the tailstock specification is especially important because proper center support helps reduce workpiece deflection and vibration.
Buyer Checklist
Before ordering a lathe, check:
At Anyang Xinheng Machine Tool, conventional lathes, CNC lathes, and pipe threading lathes are available with different spindle and tailstock configurations.
Providing your workpiece diameter, length, material, and machining process helps us recommend a suitable lathe and tooling configuration for your application.
