Oil Country Lathe for Casing, Tubing and Drill Pipe Machining

An Oil Country Lathe is a specialized heavy-duty lathe designed for machining long, large-diameter tubular components used in the oil and gas industry. Compared with a standard lathe, it typically features a large spindle bore, double-chuck clamping system, rigid machine structure, and pipe-threading capability, making it suitable for machining oil casing, tubing, drill pipe, pipe joints, and other hollow cylindrical components.

For manufacturers and repair workshops handling oilfield tubular products, an oil country lathe provides the capacity and stability required for pipe end turning, boring, facing and precision thread machining.

Typical Applications

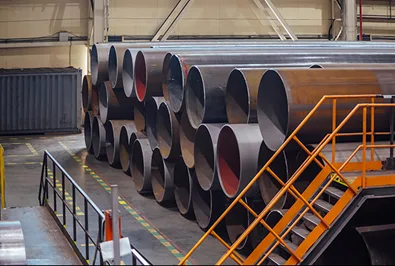

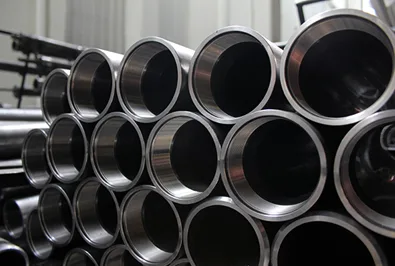

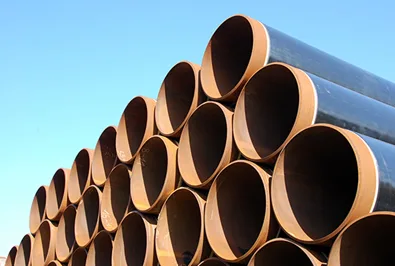

Oil country lathes are widely used for manufacturing and repairing tubular components in the petroleum and energy industries.

One of the main advantages is the ability to pass long pipes directly through the spindle bore. This allows the machine to handle workpieces much longer than the conventional distance between centers.

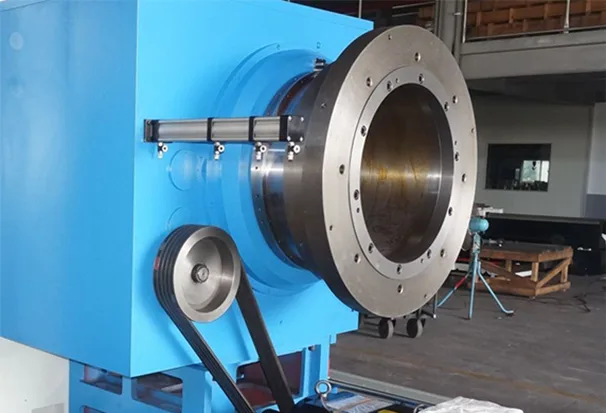

Large Spindle Bore for Oilfield Pipes

The spindle bore diameter is one of the most important parameters when selecting an oil country lathe.

A larger spindle bore allows casing, tubing and drill pipe to pass through the headstock, reducing the need for complicated external workpiece positioning.

For example, Xinheng pipe threading lathes are available with different spindle bore and pipe machining capacities to match various tubular workpieces.

When selecting a machine, the pipe outside diameter should always be checked against both the spindle bore and the specified pipe threading diameter range.

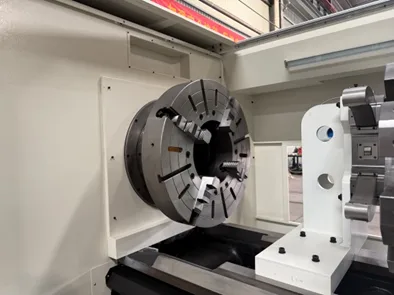

Double-Chuck Clamping

Oil country lathes commonly use front and rear large-bore chucks to clamp the pipe on both sides of the headstock.

This configuration provides better support for long tubular workpieces and helps:

1. Improve workpiece stability during heavy cutting.
2. Reduce vibration during thread machining.
3. Maintain better concentricity at the pipe end.
4. Provide secure clamping for different pipe diameters.

Depending on the machine configuration, manual or hydraulic chucks can be supplied.

Thread Machining Capability

Oilfield pipes require accurate and repeatable thread profiles for reliable connections. Oil country lathes can be configured for machining various thread types, including metric, inch, DP and API-standard pipe threads.

They can be used for both new pipe production and damaged thread repair, making them suitable for pipe manufacturers, oilfield service companies and maintenance workshops.

Conventional or CNC Oil Country Lathe?

Both conventional and CNC configurations are available.

CNC models can also be equipped with CNC systems, hydraulic chucks, automatic turrets, steady rests and other optional configurations according to production requirements.

How to Select the Right Oil Country Lathe

Before selecting a machine, provide the following workpiece information:

• Maximum pipe outside diameter
• Minimum and maximum pipe length
• Required thread type and specification
• Workpiece material
• Required machining operations
• Production quantity

At Anyang Xinheng Machine Tool, oil country and pipe threading lathes can be configured for different casing, tubing and drill pipe machining requirements.

Whether the application involves oil pipe production, API thread machining or oilfield pipe repair, selecting the correct spindle bore, clamping system and threading capacity is essential for stable and efficient machining.
