What is the 755 mm guideway conventional pipe threading lathe used for?

It is used for larger pipe turning and threading applications that require manual operation, stronger guideway rigidity, and larger spindle bore options.

Is this machine suitable for heavy pipe workpieces?

Yes. The wider guideway and heavier structure are suitable for larger and heavier pipes, subject to model selection and support configuration.

Can it be customized with different chucks?

Yes. Chuck and clamping options can be discussed according to pipe diameter, length, weight, and thread process.

What quotation information is required?

Please send pipe size, thread standard, material, workpiece length, weight, quantity, and destination port.

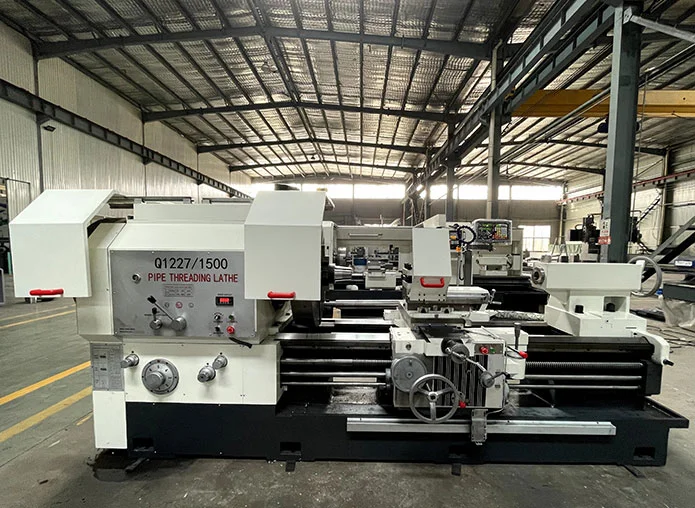

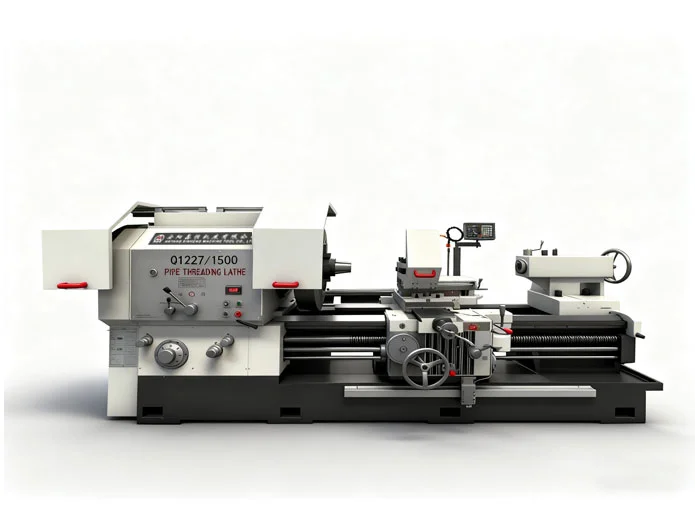

Conventional pipe threading lathe Oil Country Lathe machine





Conventional pipe threading lathe Oil Country Lathe machine

Pipe threading lathe is also known as big bore lathe machine, large bore lathe, oil country lathe, double chuck lathe, oil field lathe and hollow spindle lathe, its core features highlight large-bore processing compatibility, high rigidity of double-chuck synchronous clamping, and long pipe processing adaptability brought by hollow spindle, with modular structure facilitating function expansion.

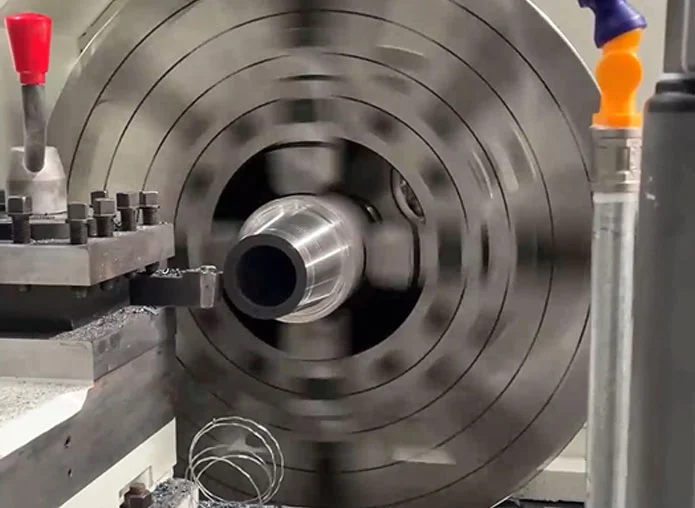

This robust machine is specifically designed for machining API standard tapered threads (API 5B/7-1), metric threads, and imperial threads with exceptional precision. It is particularly adept at providing high-precision repair services for various types of defective threads. Additionally, it supports operations such as turning, facing, boring, and grooving.
It has stable continuous operation performance and widely used in chemical pipeline processing, oil and gas drilling and production parts manufacturing, plumbing pipe fitting production and other industries.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Swing over bed	mm
Swing over carriage	mm
Distance between centers	mm
Pipe threading range	mm
Span of guideway	mm
Max. weight of workpiece	ton
Spindle
Spindle bore	mm
Spindle speed regulation	-
Spindle speed range	r min
Chuck	mm
Toolpost
Cross section of tool shank	mm
Toolpost type	-
Feed
Max. stroke of X-axis	mm
Max. stroke of Z-axis	mm
No. and range of X-axis feed	-
No. and range of Z-axis feed	-
Rapid traverse speed of X-axis	mm min
Rapid traverse speed of Z-axis	mm min
No. and rang of metric threads	-
No. and rang of inch threads	-
Tailstock
Tailstock quill diameter	mm
Tailstock quill taper	-
Tailstock quill max. stroke	mm
Power system
Main motor power	kW
Rapid traverse motor power	kW
Coolant pump motor power	kW
Others
Width×Height	mm
Length	mm
Net weight	kg

Q1227	Q1230	Q1233	Q1235	Q1243	Q1253	Q1263

1000	1000	1000	1000	1000	1250	1600
610	610	610	610	610	860	1200
1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000
70-275	80-300	100-330	150-350	260-430	350-530	420-630
755	755	755	755	755	755	755
6	6	6	6	6	6	6

280	305	335	360	440	540	640
2	2	2	2	2	2	2
20-300	20-300	30-260	30-260	23-260	20-220	15-160
780 4-jaw manual	780 4-jaw manual	780 4-jaw electric	780 4-jaw electric	1000 4-jaw electric	1000 4-jaw electric	1250 4-jaw electric

40×40	40×40	40×40	40×40	40×40	40×40	40×40
V4	V4	V4	V4	V4	V4	V4

520	520	520	520	520	630	820
1350 1850 2850 3850	1350 1850 2850 3850	1350 1850 2850 3850	1350 1850 2850 3850	1350 1850 2850 3850	1350 1850 2850 3850	1350 1850 2850 3850
32 0.05-0.75	32 0.05-0.75	32 0.05-0.75	32 0.05-0.75	32 0.05-0.75	32 0.05-0.75	32 0.05-0.75
32 0.1-1.5	32	32	32	32	32	32
1870	1870	1870	1870	1870	1870	1870
3740	3740	3740	3740	3740	3740	3740
23 1-15	23 1-15	23 1-15	23 1-15	23 1-15	23 1-15	23 1-15
22 28-2	22 28-2	22 28-2	22 28-2	22 28-2	22 28-2	22 28-2

160	160	160	160	160	160	160
MT6	MT6	MT6	MT6	MT6	MT6	MT6
300	300	300	300	300	300	300

22	22	22	22	22	30	30
1.5	1.5	1.5	1.5	1.5	1.5	1.5
0.125	0.125	0.125	0.125	0.125	0.125	0.125

2100×1600	2100×1600	2150×1620	2150×1650	2250×1680	2380×1600	2420×2300
4700 5200 6200 7200	4700 5200 6200 7200	4700 5200 6200 7200	4700 5200 6200 7200	4700 5200 6200 7200	4700 5200 6200 7200	4700 5200 6200 7200
11400 11900 12900 13900	11600 12100 13100 14100	12000 12500 13500 14500	13000 13500 14500 15500	13500 14000 15000 16000	16000 16500 17500 18500	19000 19500 20500 21500

Accessories

Standard :

4-jaw manual chuck
Standard V4 toolpost
Dead center
Standard tailstock
LED work light
Coolant system
Leveling wedge
Anchor bolt
Wrench

Optional :

Pneumatic chuck
Quick change toolpost
Grinding attachment
Follow rest
Steady rest
Rear support
Thread indicator

Live center

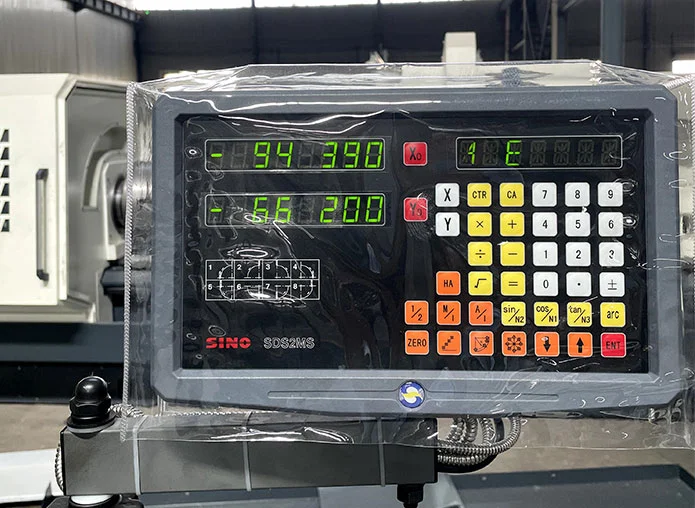

DRO
Toolpost protection
Chuck protection
Side protection

Video

Q1222 Conventional Oil Country Lathe

Conventional oil country lathe

Characteristic





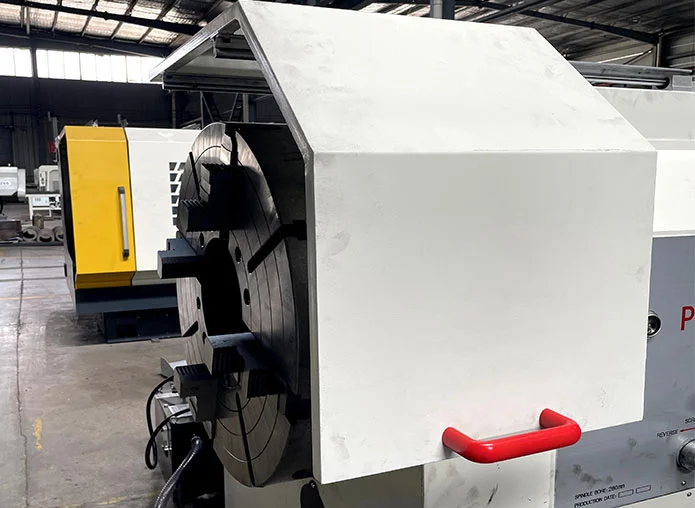

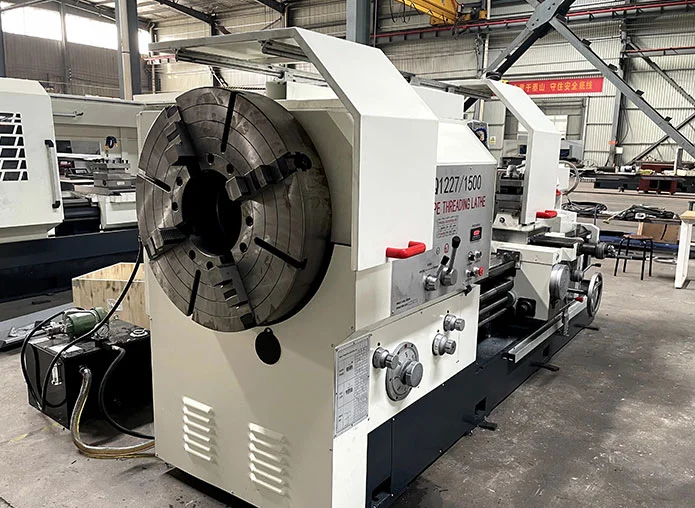

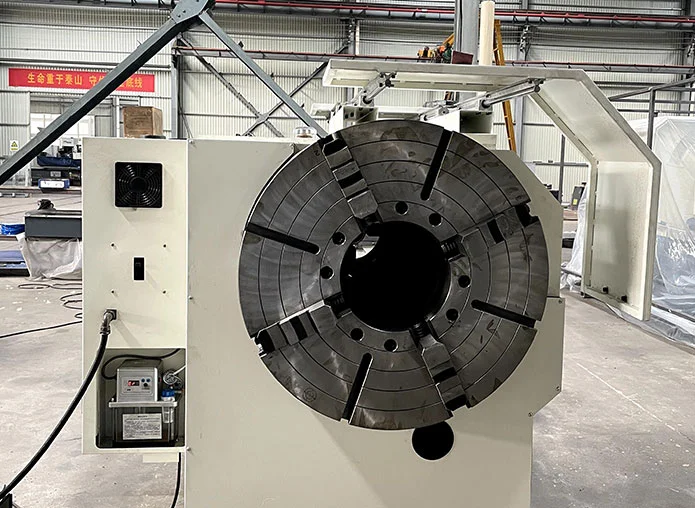

Chuck

Dual-Chuck enabled for simultaneous dual-end machining, this lathe comes standard with Φ780mm 4-jaw hollow chucks, significantly boosting accuracy and productivity for long workpieces.

Other manual 4-jaw and 3-jaw chuck are for option

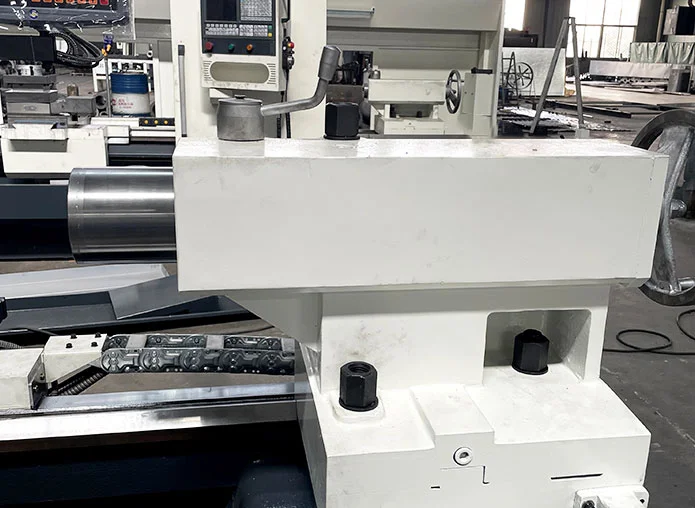

Tailstock

The center line of tailstock spindle is horizontally zeroed to the center line of the headstock spindleThe center line of tailstock spindle has been well adjusted before lathe leaves the factory. There is azero line mark at the convex plane between the right lower tailstock body and the base.

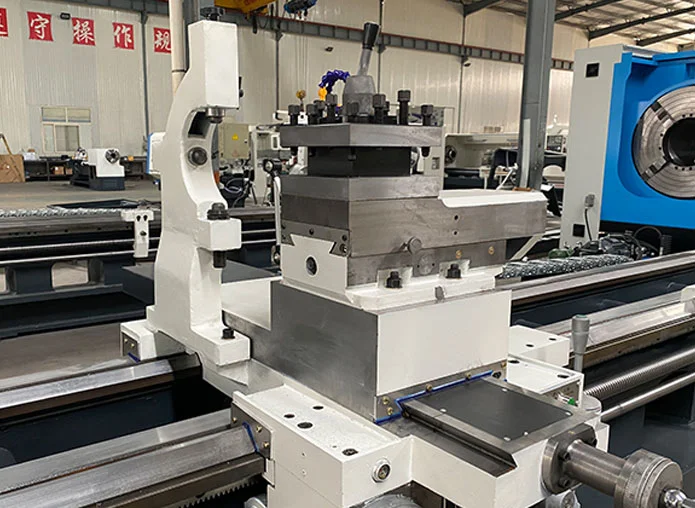

Toolpost

There are 4-position toolpost, quich change toolpost and other toolpost for optional. Standard configuration is 4-position vertical toolpost.
