When should I choose a conventional pipe threading lathe?

A conventional pipe threading lathe is suitable for manual pipe turning and threading, repair work, flexible workshop use, and lower automation requirements.

Which workpieces are suitable for this series?

This series is suitable for oil pipes, casing pipes, drill pipes, and pipe-type workpieces within the machine spindle bore and bed length range.

Can it process external and internal pipe threads?

Yes. With suitable tooling and setup, the machine can process different internal and external thread forms according to customer requirements.

What should I provide for model selection?

Please provide pipe diameter, length, thread type, material, workpiece weight, and whether special chucks or supports are needed.

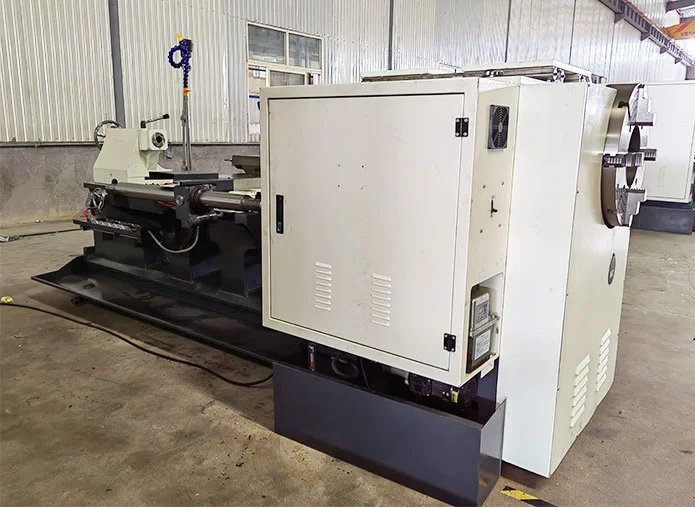

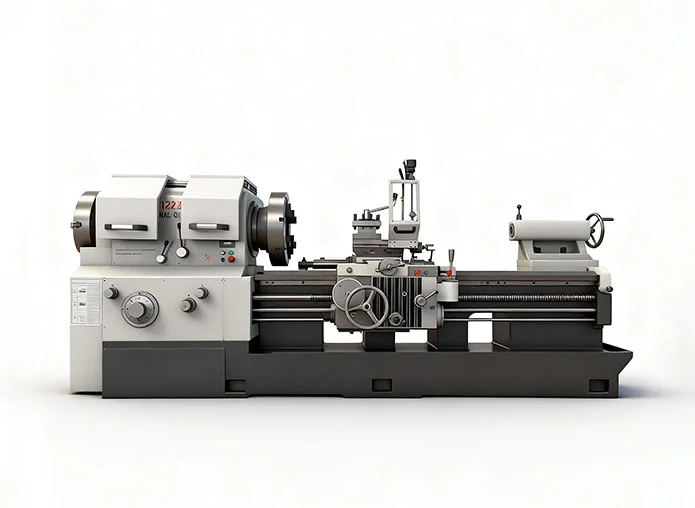

Conventional pipe threading lathe Oil Country Lathe machine





Conventional pipe threading lathe Oil Country Lathe machine

Pipe threading lathe is also known as big bore lathe machine, Large bore lathe, oil country lathe, double chuck lathe, oil field lathe and hollow spindle lathe.
It adopts a hollow spindle design to ensure through processing of large-bore workpieces, a double-chuck clamping system to improve clamping stability and precision, and integrates the high-load adaptability of oil country lathe, with modular design for easy debugging.
In terms of functions, it can accurately process metric, imperial and API 5B (petroleum pipeline standard) tapered threads, support DP (diametral pitch) parameter adaptation, and is equipped with efficient thread repair function, which can accurately repair defective threads such as worn and deformed ones. It realizes composite processes such as thread processing, end turning and repair, greatly improving processing efficiency and workpiece utilization. It is widely used in petroleum and natural gas pipe fitting processing, municipal pipeline manufacturing, mechanical parts production and other industries.

Download Inquiry

PRODUCT SPECIFICATIONS
ACCESSORIES
VIDEO
CHARACTERISTIC

Product Specifications

Items	Unit
Capacity
Swing over bed	mm
Swing over carriage	mm
Distance between centers	mm
Pipe threading range	mm
Span of guideway	mm
Max. weight of workpiece	ton
Spindle
Spindle bore	mm
Spindle speed regulation	-
Spindle speed range	rpm
Chuck	mm
Toolpost
Cross section of tool shank	mm
Toolpost type	-
Feed
Max. stroke of X-axis	mm
Max. stroke of Z-axis	mm
No. and range of X-axis feed	-
No. and range of Z-axis feed	-
Rapid traverse speed of X-axis	mm min
Rapid traverse speed of Z-axis	mm min
No. and rang of metric threads	-
No. and rang of inch threads	-
Tailstock
Tailstock quill diameter	mm
Tailstock quill taper	-
Tailstock quill max. stroke	mm
Others
Main motor power	kW
Rapid traverse motor power	kW
Coolant pump motor power	kW
Width×Height	mm
Length	mm
Net weight	kg

Q1213	Q1219	Q1222	Q1225	Q1225	Q1227	Q1230	Q1232

630 800	630 800	630 800	630 800	800	800	800	800
340 520	340 520	340 520	340 520	480	480	480	480
1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000	1500 2000 3000 4000
30-126	50-193	50-220	50-250	50-250	50-270	80-295	90-320
550	550	550	550	600	600	600	600
3	3	3	3	4	4	4	4

130	200	225	255	255	280	305	325
Stepless in 2 gears	Stepless in 2 gears	Stepless in 2 gears	Stepless in 2 gears	Stepless in 2 gears	Stepless in 2 gears	Stepless in 2 gears	Stepless in 2 gears
40-180,150-800	30-125,125-500	30-125,125-500	15-100,100-350	20-420	20-420	20-100,100-300	20-100,100-300
380 3-jaw manual	520 4-jaw manual	520 4-jaw manual	630 4-jaw manual	630 4-jaw manual	630 4-jaw manual	780 4-jaw manual	780 4-jaw manual

30×30	32×32	32×32	32×32	32×32	32×32	32×32	32×32
V4	V4	V4	V4	V4	V4	V4	V4

320 420	320 420	320 420	420	420	420	420	420
1350 1850 2850 3850	1350 1850 2850 3850	1350 1850 2850 3850	1350 1850 2850 3850	1250 1750 2750 3750	1250 1750 2750 3750	1250 1750 2750 3750	1250 1750 2750 3750
32 0.042-0.7	32 0.042-0.7	32 0.042-0.7	32 0.042-0.7	32 0.042-0.7	32 0.042-0.7	32 0.042-0.7	32 0.042-0.7
32 0.095-1.4	32 0.095-1.4	32 0.095-1.4	32 0.095-1.4	32 0.095-1.4	32 0.095-1.4	32 0.095-1.4	32 0.095-1.4
1870	1870	1870	1870	1870	1870	1870	1870
3740	3740	3740	3740	3740	3740	3740	3740
22 1-15	22 1-15	22 1-15	22 1-15	22 1-15	22 1-15	22 1-15	22 1-15
26 14-1	26 14-1	26 14-1	26 14-1	26 14-1	26 14-1	26 14-1	26 14-1

100	100	100	120	120	120	120	120
MT5	MT5	MT5	MT6	MT6	MT6	MT6	MT6
250	250	250	250	250	250	250	250

11	11	11	15	15	15	15	15
0.3	0.3	0.3	1.1	1.1	1.1	1.1	1.1
0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125
1710×1380	1710×1400	1710×1400	1750×1550	1700×1600	1700×1600	1700×1600	1700×1600
3700 4200 5200 6200	3700 4200 5200 6200	3700 4200 5200 6200	3700 4200 5200 6200	4100 4600 5600 6600	4100 4600 5600 6600	4100 4600 5600 6600	4100 4600 5600 6600
4500 4940 5820 6700	4800 5240 6120 7000	5000 5440 6320 7200	6000 6400 7320 8200	8295 8560 9090 9620	8395 8660 9190 9720	8595 8860 9390 9920	8795 9060 9590 11020

Accessories

Standard :

3-jaw/4-jaw manual chuck
Standard V4 toolpost
Dead center
Standard tailstock
LED work light
Coolant system
Leveling wedge
Anchor bolt
Wrench

Optional :

Pneumatic chuck
Quick change toolpost
Grinding attachment
Follow rest
Steady rest
Rear support

Thread indicator
Live center
DRO
Toolpost protection
Chuck protection
Side protection

Video

🔩 Q1227 Conventional pipe threading lathe: Masters all threads—metric, imperial, and API 5B/7-1!

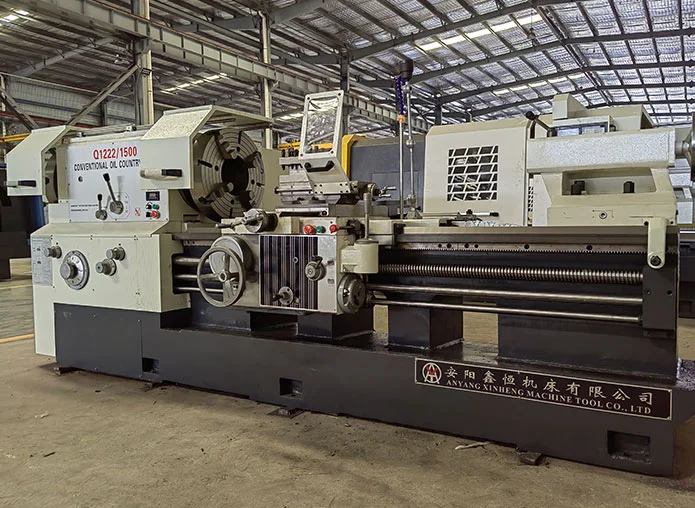

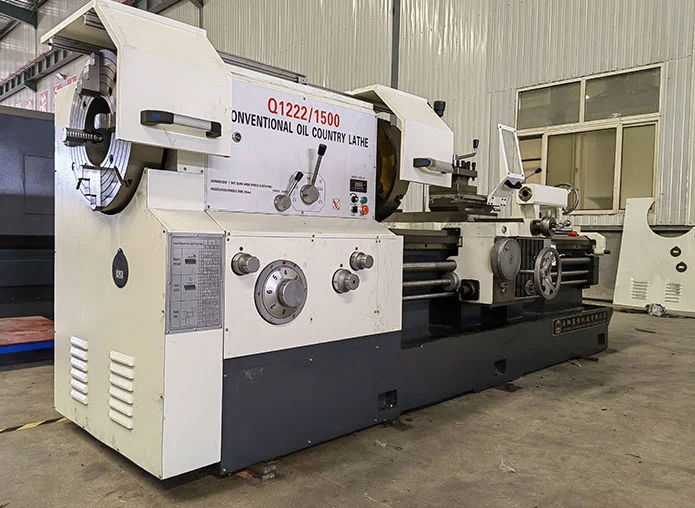

Q1222 conventional oil country lathe

Characteristic





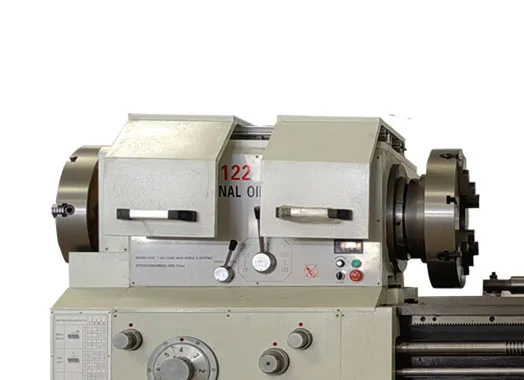

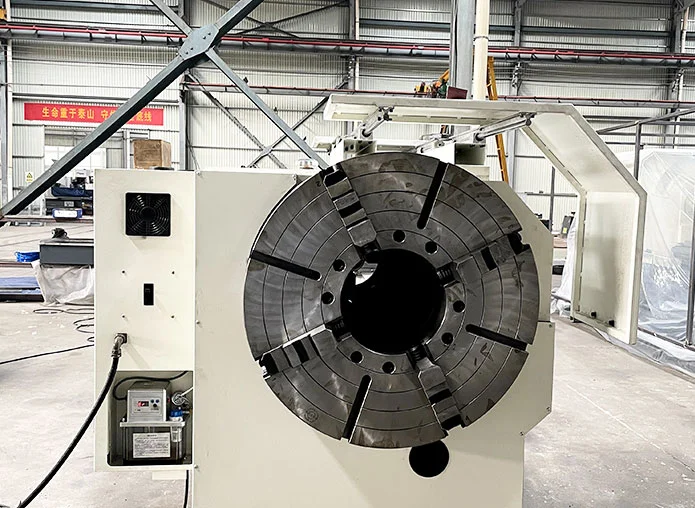

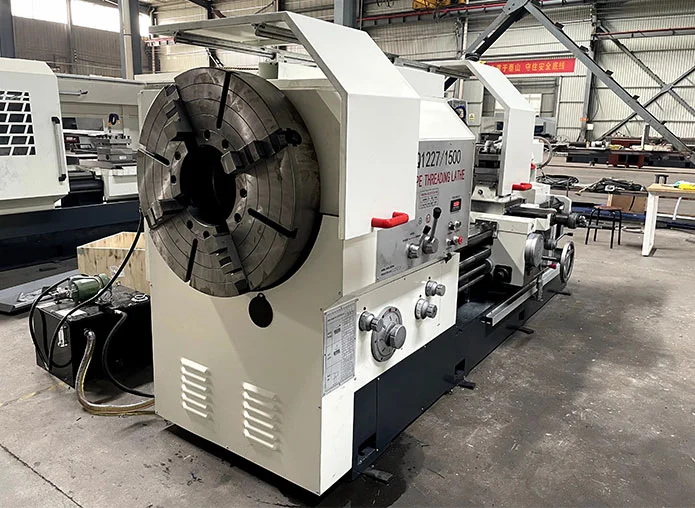

Chuck

This dual-chuck setup provides exceptional flexibility for handling long or complex workpieces, enabling simultaneous workholding at both ends for increased stability and efficiency

Q1213 Series Lathes come standard with dual Φ400 mm 3-jaw hollow chucks

Q1219 & Q1222 Series Lathes feature dual Φ520 mm 4-jaw hollow chucks as standard equipment.

Other manual 4-jaw and 3-jaw chucks are for option.

Tailstock

The center line of tailstock spindle is horizontally zeroed to the center line of the headstock spindle. The center line of tailstock spindle has been well adjusted before lathe leaves the factory. There is a zero line mark at the convex plane between the right lower tailstock body and the base.

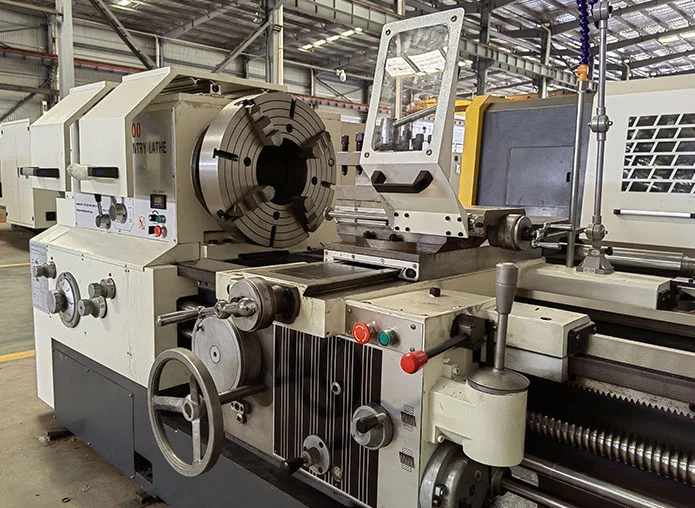

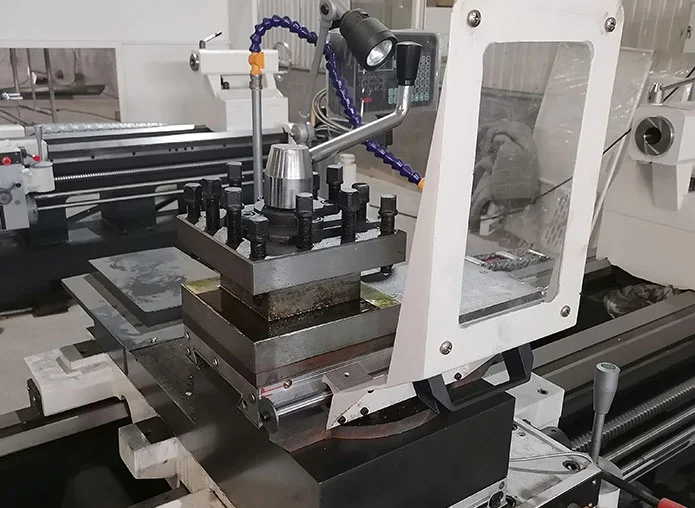

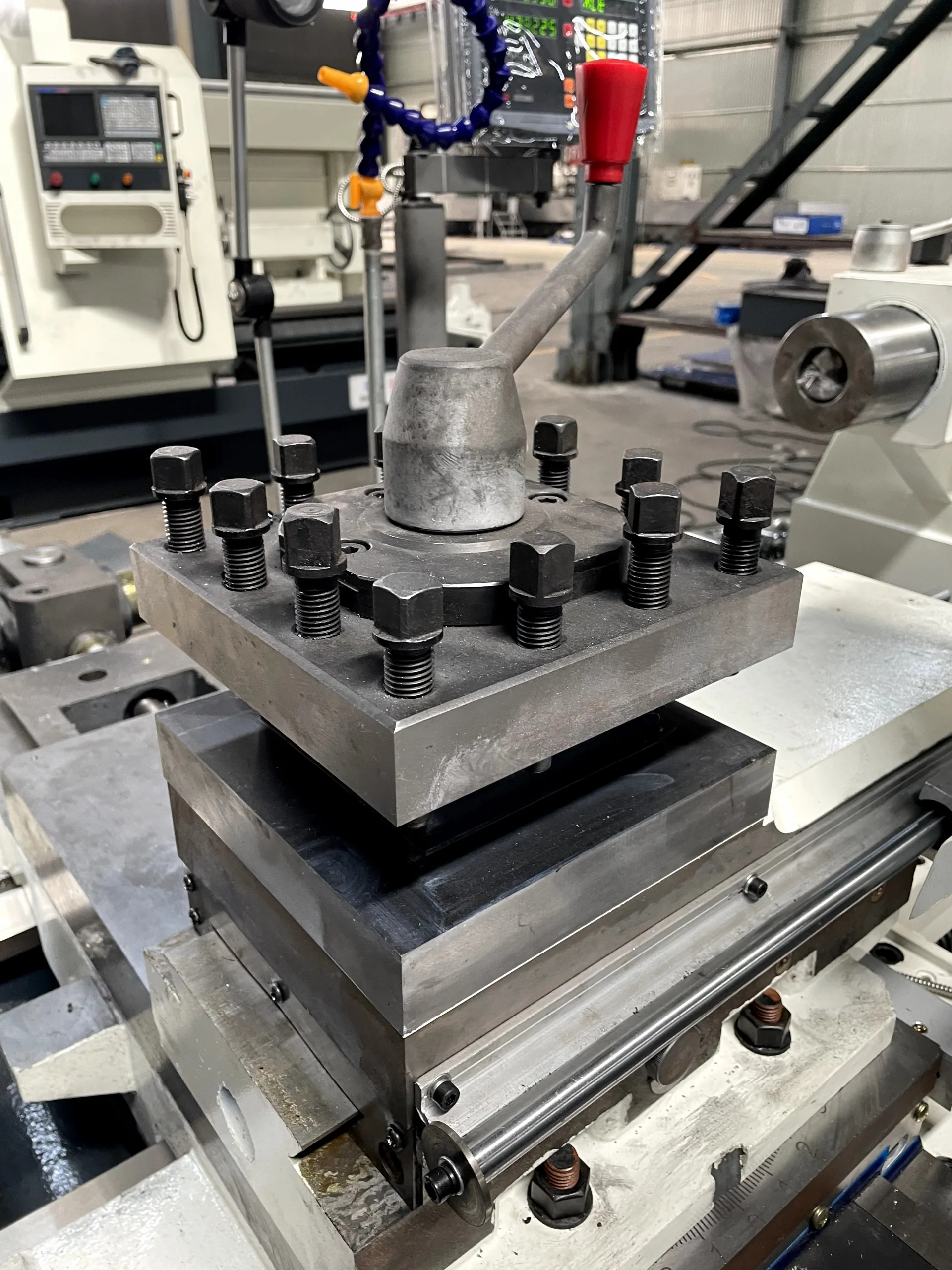

Toolpost

There are 4-position toolpost, 6-position toolpost, quick change toolpost and other toolpost for optional. Standard configuration is 4-position vertical toolpost.
